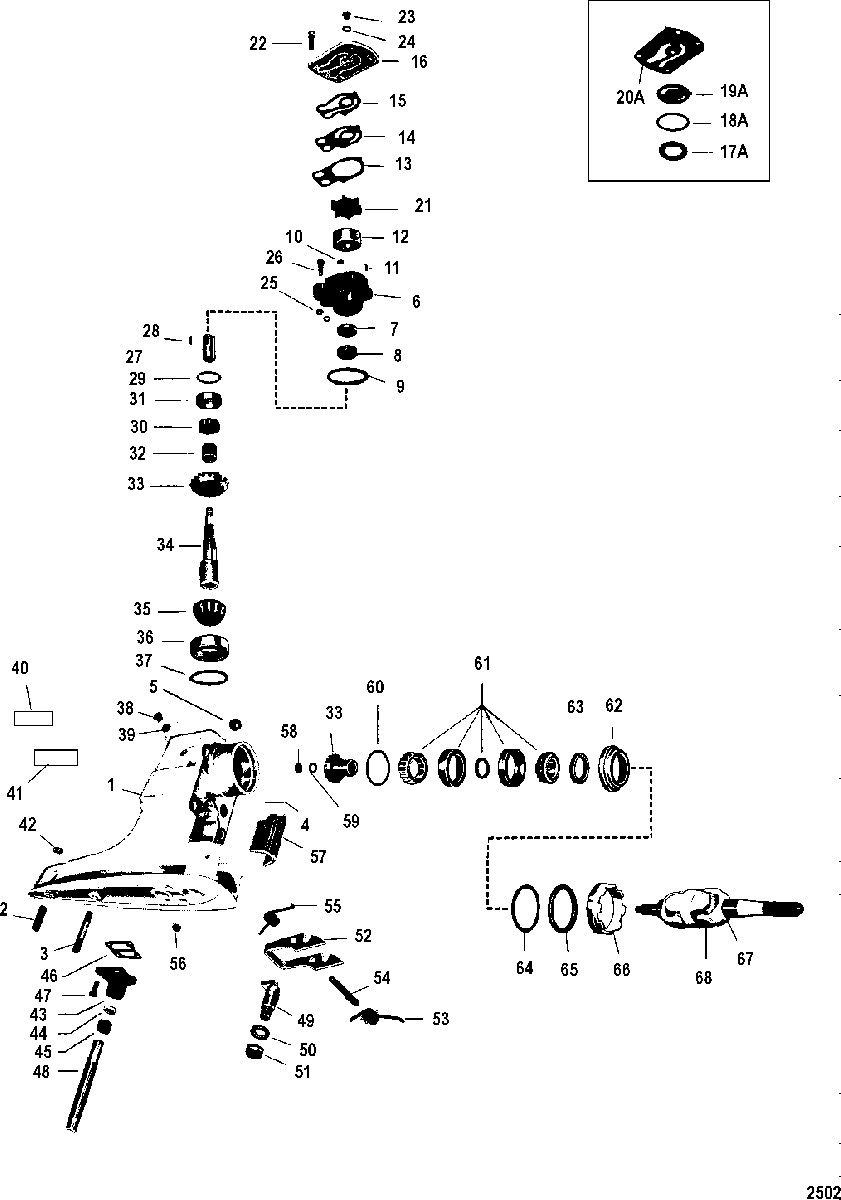

DRIVE SHAFT HOUSING, WATER PUMP & GEAR ASSEMBLY для Mercruiser - 60 RENAULT 68 I/L4 1965-1968 1887079 THRU 2049044

  • №
    Артикул
    Название
  • 1
    1555-2538A6 DRIVE SHAFT HOUSING ASSEMBLY
    DRIVE SHAFT HOUSING ASSEMBLY
  • 2
    16-8M0022145 STUD-Drive Shaft Housing to Gear Housing (1-3/4 IN.)
    STUD-Drive Shaft Housing to Gear Housing (1-3/4 IN.)
  • 3
    16-57935 STUD-Drive Shaft Housing to Gear Housing (3 IN.)
    STUD-Drive Shaft Housing to Gear Housing (3 IN.)
  • 4
    32-45005 DRAIN TUBE-Drive Shaft Housing (1-5/8 IN.)
    DRAIN TUBE-Drive Shaft Housing (1-5/8 IN.)
  • 5
    22-31704 PIPE PLUG-Drive Shaft Housing
    PIPE PLUG-Drive Shaft Housing
  • 6
    46-38958A2 WATER PUMP HOUSING ASSEMBLY
    (S/N-1830978 & Up)
    WATER PUMP HOUSING ASSEMBLY
    (S/N-1830978 & Up)
  • 6
    46-45609A2 WATER PUMP HOUSING ASSEMBLY
    (S/N-1830977 & Below)
    WATER PUMP HOUSING ASSEMBLY
    (S/N-1830977 & Below)
  • 7
    26-79831 OIL SEAL (UPPER)
    OIL SEAL (UPPER)
  • 8
    26-90562 OIL SEAL (LOWER)
    OIL SEAL (LOWER)
  • 9
    25-38099 O RING
    O RING
  • 10
    27-38957 GASKET-Sealing
    GASKET-Sealing
  • 11
    17-8M0084627 DOWEL PIN-Water Pump Housing to Top Cover
    DOWEL PIN-Water Pump Housing to Top Cover
  • 12
    32001 INSERT
    INSERT
  • 13
    27-38857 GASKET-Water Pump Housing to Face Plate
    (S/N-1830978 & Up)
    GASKET-Water Pump Housing to Face Plate
    (S/N-1830978 & Up)
  • 14
    38858 FACE PLATE
    (S/N-1830978 & Up)
    FACE PLATE
    (S/N-1830978 & Up)
  • 15
    27-38856 GASKET-Face Plate toTop Cover
    (S/N-1830978 & Up)
    GASKET-Face Plate toTop Cover
    (S/N-1830978 & Up)
  • 16
    38140 TOP COVER
    TOP COVER
  • 17A
    27-38097 GASKET-Water Pump Housing Insert
    (S/N-1830977 & Below)
    GASKET-Water Pump Housing Insert
    (S/N-1830977 & Below)
  • 18A
    27-38633 GASKET-Water Pump Housing
    (S/N-1830977 & Below)
    GASKET-Water Pump Housing
    (S/N-1830977 & Below)
  • 19A
    38103 FACE PLATE
    (S/N-1830977 & Below)
    FACE PLATE
    (S/N-1830977 & Below)
  • 20A
    27-38116 GASKET-Water Pump Housing to Top Cover
    (S/N-1830977 & Below)
    GASKET-Water Pump Housing to Top Cover
    (S/N-1830977 & Below)
  • 21
    47-89983T IMPELLER
    IMPELLER
  • 22
    10-90073 SCREW-Top cover to Drive Shaft Housing (1 IN.)
    SCREW-Top cover to Drive Shaft Housing (1 IN.)
  • 23
    10-79953Q04 FLUSHING SCREW-Top Cover
    FLUSHING SCREW-Top Cover
  • 24
    12-191833 SEALING WASHER-Flushing Screw
    SEALING WASHER-Flushing Screw
  • 25
    25-38101 O RING-Drive Shaft Housing
    O RING-Drive Shaft Housing
  • 26
    10-90073 SCREW-Water Pump Housing to Drive Shaft Housing (1 IN.)
    SCREW-Water Pump Housing to Drive Shaft Housing (1 IN.)
  • 27
    38091 SHAFT-Impeller Drive
    SHAFT-Impeller Drive
  • 28
    17-38102 PIN-Impeller Drive
    PIN-Impeller Drive
  • 29
    15-38095A1 SHIM SET-Upper Tapered Roller Bearing
    SHIM SET-Upper Tapered Roller Bearing
  • 30
    31-38137A1 TAPERED ROLLER BEARING ASSEMBLY-UPPER
    TAPERED ROLLER BEARING ASSEMBLY-UPPER
  • 31
    NSS CUP
    CUP
  • 32
    23-38089 SPACER-Upper Taperd Roller Bearing
    SPACER-Upper Taperd Roller Bearing
  • 33
    43-55427A1 GEAR ASSEMBLY-Complete
    (Includes Drive and Pinion Gear)
    GEAR ASSEMBLY-Complete
    (Includes Drive and Pinion Gear)
  • 34
    45-38121 UPPER DRIVE SHAFT
    UPPER DRIVE SHAFT
  • 35
    31-38135A1 TAPERED ROLLER BEARING ASSEMBLY-LOWER
    TAPERED ROLLER BEARING ASSEMBLY-LOWER
  • 36
    NSS CUP
    CUP
  • 37
    15-38093A1 SHIM SET-Lower Tapered Roller Bearing
    SHIM SET-Lower Tapered Roller Bearing
  • 38
    10-79953Q04 SCREW-Filling & Vent-Drive Shaft Housing
    SCREW-Filling & Vent-Drive Shaft Housing
  • 39
    12-191833 WASHER-Filling & Vent Screw
    WASHER-Filling & Vent Screw
  • 40
    37-46331A1 DECAL-Drive Shaft Housing (PORT)
    DECAL-Drive Shaft Housing (PORT)
  • 41
    37-46331A1 DECAL-Drive Shaft Housing (STARBOARD)
    DECAL-Drive Shaft Housing (STARBOARD)
  • 42
    19-29850 PLUG-Drive Shaft Housing-Trim Tab Hole
    PLUG-Drive Shaft Housing-Trim Tab Hole
  • 43
    38119A1 COVER ASSEMBLY-Water Pocket
    COVER ASSEMBLY-Water Pocket
  • 44
    12-36446 WASHER-Nylon
    WASHER-Nylon
  • 45
    26-36557 SEAL-Rubber
    SEAL-Rubber
  • 46
    27-38110 GASKET-Water Pocket Cover
    GASKET-Water Pocket Cover
  • 47
    10-38111 SCREW-Water Pocket Cover to Drive Shaft Housing (3/4 IN.)
    SCREW-Water Pocket Cover to Drive Shaft Housing (3/4 IN.)
  • 48
    32-38134 WATER TUBE-Water Pocket Cover
    WATER TUBE-Water Pocket Cover
  • 49
    45011A2 SHIFT SHAFT-Intermediate
    SHIFT SHAFT-Intermediate
  • 50
    12-26617 WASHER-Intermediate Shift Shaft
    WASHER-Intermediate Shift Shaft
  • 51
    11-22339 NUT-Intermediate Shift Shaft
    NUT-Intermediate Shift Shaft
  • 52
    39508A1 REVERSE HOOK KIT
    REVERSE HOOK KIT
  • 53
    NSS SPRING (L.H.)
    SPRING (L.H.)
  • 54
    17-38112 PIVOT PIN-Reverse Hook to Drive Shaft Housing
    PIVOT PIN-Reverse Hook to Drive Shaft Housing
  • 55
    NSS SPRING (R.H.)
    (Part of 39508A1 Kit)
    SPRING (R.H.)
    (Part of 39508A1 Kit)
  • 56
    37-39433 NUT-Gear Housing to Drive Shaft Housing Stud
    NUT-Gear Housing to Drive Shaft Housing Stud
  • 57
    38581 WATER SHUTTER-Rubber-Drive Shaft Housing
    WATER SHUTTER-Rubber-Drive Shaft Housing
  • 58
    11-82671317 NUT-Drive Gear to Universal Joint
    NUT-Drive Gear to Universal Joint
  • 59
    12-38108 WASHER-Drive Gear to Universal Joint Nut
    WASHER-Drive Gear to Universal Joint Nut
  • 60
    15-20928A1 SHIM SET-Drive Gear Roller Bearing
    SHIM SET-Drive Gear Roller Bearing
  • 61
    31-38142A2 TAPERED ROLLER BEARING ASSEMBLY-Drive Gear
    TAPERED ROLLER BEARING ASSEMBLY-Drive Gear
  • 62
    38117A1 CARRIER ASSEMBLY-Oil Seal
    CARRIER ASSEMBLY-Oil Seal
  • 63
    26-38105 OIL SEAL
    OIL SEAL
  • 64
    25-38106 O RING-Oil Seal Carrier
    O RING-Oil Seal Carrier
  • 65
    12-38107 WASHER-Roller Bearing Retainer to Oil Seal Carrier
    WASHER-Roller Bearing Retainer to Oil Seal Carrier
  • 66
    38118 RETAINER-Tapered Roller Bearing-Drive Shaft Housing
    RETAINER-Tapered Roller Bearing-Drive Shaft Housing
  • 67
    38124 UNIVERSAL JOINT-Drive Gear
    UNIVERSAL JOINT-Drive Gear
  • 68
    36311 CROSS AND BEARING ASSEMBLY
    CROSS AND BEARING ASSEMBLY
  • 0
    39413 YOKE-Gear End (SHORT)
    YOKE-Gear End (SHORT)
  • 0
    39409 SOCKET-Center
    SOCKET-Center
  • 0
    39412 YOKE-Coupling End (LONG)
    YOKE-Coupling End (LONG)
