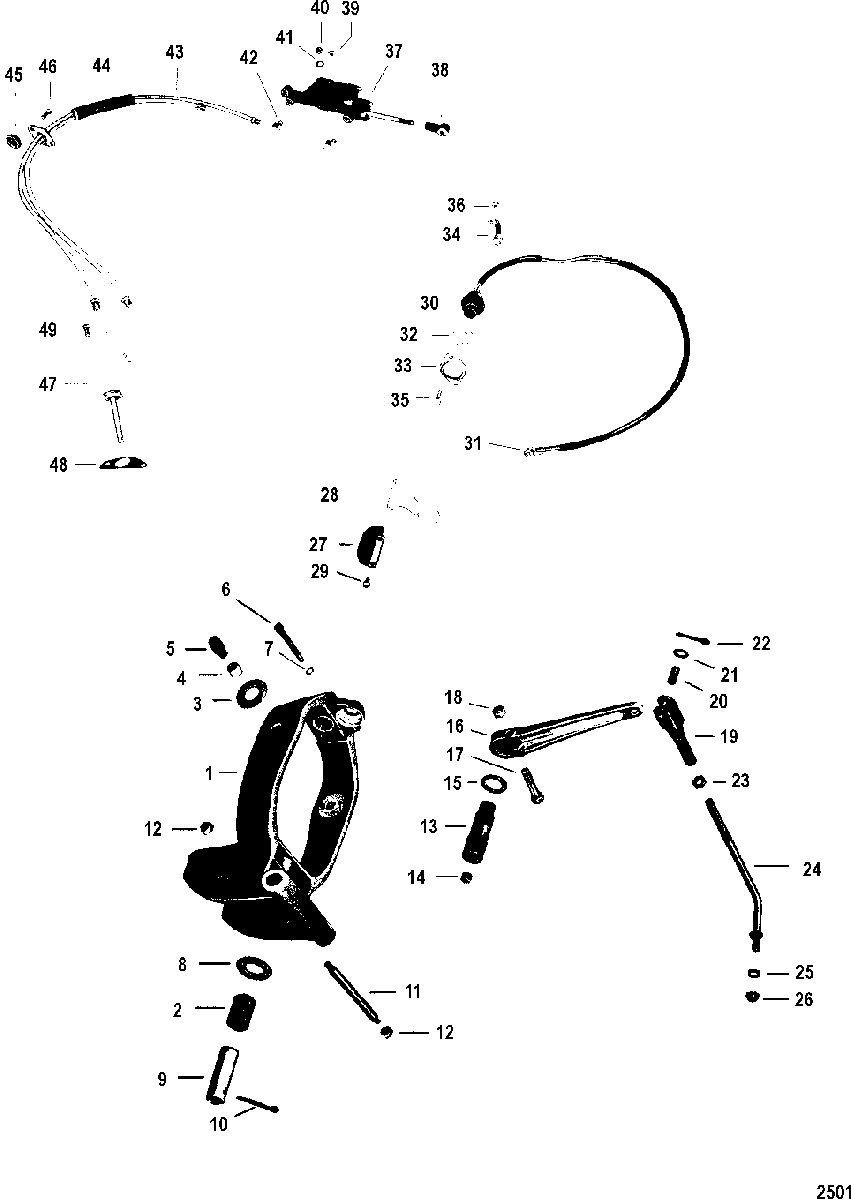

GIMBAL RING ASSEMBLY, SENDER/RECEIVER HOUSING для Mercruiser - 60 RENAULT 68 I/L4 1965-1968 1887079 THRU 2049044
-
№АртикулНазвание
-
138161A2 GIMBAL RING ASSEMBLYGIMBAL RING ASSEMBLY
-
223-38198 BUSHING (Lower)BUSHING (Lower)
-
312-38268 WASHERWASHER
-
423-38267 BUSHING-Hinge PinBUSHING-Hinge Pin
-
517-55803 HINGE PIN-Gimbal Ring to Bell HousingHINGE PIN-Gimbal Ring to Bell Housing
-
610-33022 SCREW-Upper Swivel Shaft Retaining-Gimbal RingSCREW-Upper Swivel Shaft Retaining-Gimbal Ring
-
712-20546 WASHER-Upper Swivel Shaft Retaining ScrewWASHER-Upper Swivel Shaft Retaining Screw
-
812-32518 WASHER-Gimbal Housing to Gimbal Ring (Lower)WASHER-Gimbal Housing to Gimbal Ring (Lower)
-
917-38199 SWIVEL PIN-Gimbal Housing to Gimbal Ring (Lower)SWIVEL PIN-Gimbal Housing to Gimbal Ring (Lower)
-
1018-34212 COTTER PIN-Retaining-Lower Swivel PinCOTTER PIN-Retaining-Lower Swivel Pin
-
1117-38269 TILT PIN-Gimbal RingTILT PIN-Gimbal Ring
-
1211-82670911 NUT-Gimbal Ring Tilt PinNUT-Gimbal Ring Tilt Pin
-
1332582 UPPER SWIVEL SHAFT-Gimbal Ring to Gimbal HousingUPPER SWIVEL SHAFT-Gimbal Ring to Gimbal Housing
-
1422-32561 PIPE PLUG-Upper Swivel ShaftPIPE PLUG-Upper Swivel Shaft
-
1512-32996 WASHER-Upper Swivel Shaft
(.015)WASHER-Upper Swivel Shaft
(.015) -
1512-32997 WASHER-Upper Swivel Shaft
(.063)WASHER-Upper Swivel Shaft
(.063) -
1638174 STEERING LEVER-Upper Swivel ShaftSTEERING LEVER-Upper Swivel Shaft
-
1710-807204 SCREW -Steering Lever to Upper Swivel Shaft (2 IN.)SCREW -Steering Lever to Upper Swivel Shaft (2 IN.)
-
1811-20696 NUT-Steering Lever ScrewNUT-Steering Lever Screw
-
1938192 YOKE-Steering Link RodYOKE-Steering Link Rod
-
2017-38864A1 SWIVEL PIN ASSEMBLY-Yoke to Steering LeverSWIVEL PIN ASSEMBLY-Yoke to Steering Lever
-
2112-29629 WASHERWASHER
-
2218-29623 COTTER PIN
(S/N-1887256 & Up)COTTER PIN
(S/N-1887256 & Up) -
2218-38336 COTTER PIN
(S/N-1887255 & Below)COTTER PIN
(S/N-1887255 & Below) -
2311-20101 JAM NUT-Steering Link RodJAM NUT-Steering Link Rod
-
2438187A1 STEERING LINK ROD ASSEMBLYSTEERING LINK ROD ASSEMBLY
-
2512-20086 WASHER-Steering Link RodWASHER-Steering Link Rod
-
2611-8M0042636 NUT-Steering Link Rod to Steering CableNUT-Steering Link Rod to Steering Cable
-
2738886 BUMPER-Gimbal RingBUMPER-Gimbal Ring
-
2849343 LEVER-Tilt Stop Switch Actuating-Gimbal RingLEVER-Tilt Stop Switch Actuating-Gimbal Ring
-
2910-31903 SCREW-Actuating Lever and Bumper to Gimbal Ring (3/8 IN.)SCREW-Actuating Lever and Bumper to Gimbal Ring (3/8 IN.)
-
3038296A1 TILT STOP SWITCH ASSEMBLY-Gimbal RingTILT STOP SWITCH ASSEMBLY-Gimbal Ring
-
3122924 TERMIANL-Tilt Stop SwitchTERMIANL-Tilt Stop Switch
-
3223-31902 SPACER-Tilt Stop Switch to Retaining PlateSPACER-Tilt Stop Switch to Retaining Plate
-
3331899 RETAINING PLATE-Tilt Stop Switch to Gimbal RingRETAINING PLATE-Tilt Stop Switch to Gimbal Ring
-
3432637 STRAP-Tilt Stop Switch RetainingSTRAP-Tilt Stop Switch Retaining
-
3510-34994 SCREW-Retaining Plate & Strap to Gimbal Ring (1 IN.)SCREW-Retaining Plate & Strap to Gimbal Ring (1 IN.)
-
3611-20110 NUT-Retaining Plate & Strap ScrewNUT-Retaining Plate & Strap Screw
-
3738179A2 SENDER HOUSING ASSEMBLYSENDER HOUSING ASSEMBLY
-
3838211 ROD END-Sender Housing PistonROD END-Sender Housing Piston
-
3910-62269 VENT SCREW-Sender HousingVENT SCREW-Sender Housing
-
4010-79953Q04 FILLER SCREW-Sender HousingFILLER SCREW-Sender Housing
-
4112-191833 WASHER-Filler ScrewWASHER-Filler Screw
-
4222-38214 ELBOW-Sender HousingELBOW-Sender Housing
-
4332-38300A4 HYDRAULIC TUBING ASSEMBLY-Sender Housing to Receiver HousingHYDRAULIC TUBING ASSEMBLY-Sender Housing to Receiver Housing
-
4423-38203 SLEEVE-Hydraulic TubingSLEEVE-Hydraulic Tubing
-
4523-38201 BUSHING-Seal-Hydraulic Tubing CoverBUSHING-Seal-Hydraulic Tubing Cover
-
4610-21140 SCREW-Hydraulic Tubing Cover to Gimbal Housing (1/2 IN.)SCREW-Hydraulic Tubing Cover to Gimbal Housing (1/2 IN.)
-
4738175A2 RECEIVER HOUSING ASSEMBLYRECEIVER HOUSING ASSEMBLY
-
4827-38263 GASKET-Receiver HousingGASKET-Receiver Housing
-
4910-21722 SCREW-Receiver Housing to Bell Housing (5/8 IN.)SCREW-Receiver Housing to Bell Housing (5/8 IN.)
