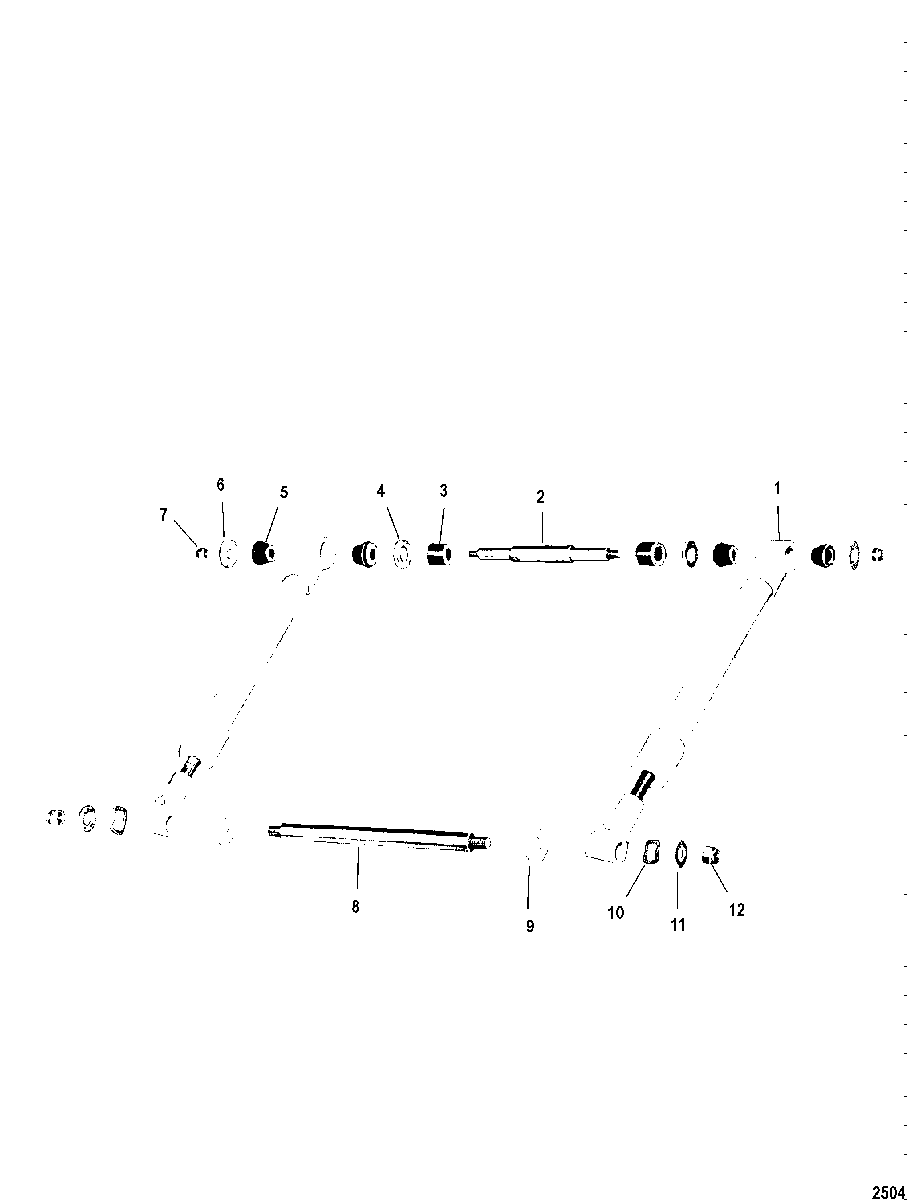

TILT AND SHOCK CYLINDER ASSEMBLY для Mercruiser - 60 RENAULT 68 I/L4 1965-1968 1887079 THRU 2049044

  • №
    Артикул
    Название
  • 0
    45348A1 TILT AND SHOCK CYLINDER ASSEMBLY-COMPLETE
    TILT AND SHOCK CYLINDER ASSEMBLY-COMPLETE
  • 1
    45348A1 TILT CYLINDER ASSEMBLY
    TILT CYLINDER ASSEMBLY
  • 2
    17-35290 ANCHOR PIN-Tilt Cylinder to Drive Shaft Housing (6-3/4 IN.)
    ANCHOR PIN-Tilt Cylinder to Drive Shaft Housing (6-3/4 IN.)
  • 3
    23-38320 SLEEVE-Rubber-Tilt Cylinder Anchor Pin
    SLEEVE-Rubber-Tilt Cylinder Anchor Pin
  • 4
    12-36041 WASHER-Tilt Cylinder Anchor Pin (33/64 IN. I.D.)
    WASHER-Tilt Cylinder Anchor Pin (33/64 IN. I.D.)
  • 5
    23-35278 BUSHING-Tapered-Tilt Cylinder Anchor Pin
    BUSHING-Tapered-Tilt Cylinder Anchor Pin
  • 6
    12-36042 WASHER-Tilt Cylinder Anchor Pin (11/32 IN. I.D.)
    WASHER-Tilt Cylinder Anchor Pin (11/32 IN. I.D.)
  • 7
    11-82670911 NUT-Tilt Cylinder Anchor Pin
    NUT-Tilt Cylinder Anchor Pin
  • 8
    17-38317 ANCHOR PIN- Tilt Cylinder to Gimbal Ring (8-7/8 IN.)
    ANCHOR PIN- Tilt Cylinder to Gimbal Ring (8-7/8 IN.)
  • 9
    12-38313 WASHER-Fiber-Tilt Cylinder Anchor Pin
    WASHER-Fiber-Tilt Cylinder Anchor Pin
  • 10
    13-37642 WAVE WASHER-Tilt Cylinder Anchor Pin
    WAVE WASHER-Tilt Cylinder Anchor Pin
  • 11
    12-8M0042641 WASHER-Tilt Cylinder Anchor Pin
    WASHER-Tilt Cylinder Anchor Pin
  • 12
    11-82671013 NUT-Tilt Cylinder Anchor Pin
    NUT-Tilt Cylinder Anchor Pin
