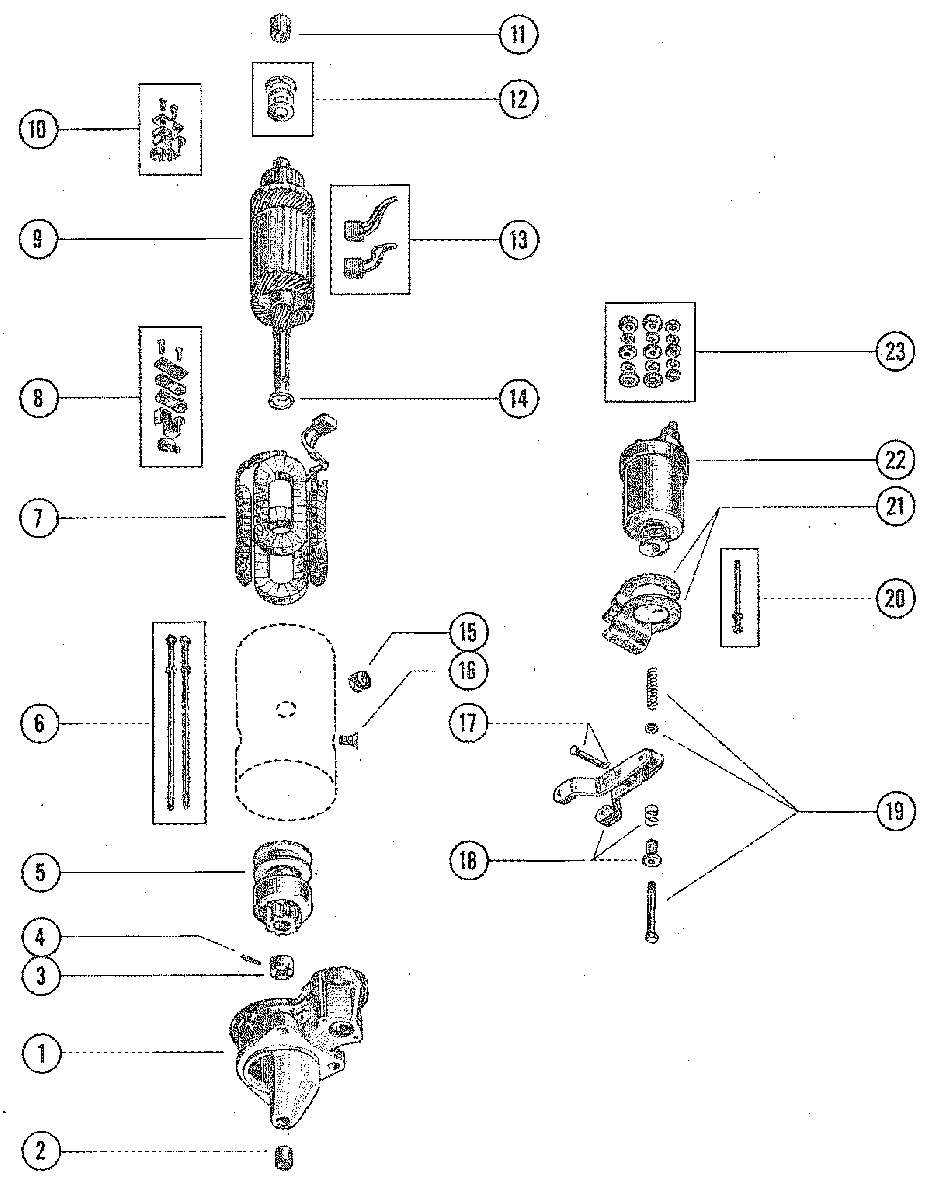

STARTER MOTOR ASSEMBLY для Mercruiser - 60 RENAULT 68 I/L4 1965-1968 1887079 THRU 2049044

  • №
    Артикул
    Название
  • -
    50-37151 STARTER MOTOR ASSEMBLY, COMPLETE
    STARTER MOTOR ASSEMBLY, COMPLETE
  • 1
    37163 HOUSING, STARTER
    HOUSING, STARTER
  • 2
    23-37162 BUSHING, STARTER HOUSING
    BUSHING, STARTER HOUSING
  • 3
    11-37172 NUT, DRIVE ASSEMBLY TO ARMATURE
    NUT, DRIVE ASSEMBLY TO ARMATURE
  • 4
    17-37173 PIN, ARMATURE NUT
    PIN, ARMATURE NUT
  • 5
    37160 DRIVE ASSEMBLY
    DRIVE ASSEMBLY
  • 6
    10-37159 BOLT SET, THRU-STARTER HOUSING
    BOLT SET, THRU-STARTER HOUSING
  • 7
    37174 FIELD COIL ASSEMBLY
    FIELD COIL ASSEMBLY
  • 8
    37152 BRUSH HOLDER PACKAGE (POSTITIVE)
    BRUSH HOLDER PACKAGE (POSTITIVE)
  • 9
    37156 ARMATURE
    ARMATURE
  • 10
    37157 BRUSH HOLDER PACKAGE (NEGATIVE)
    BRUSH HOLDER PACKAGE (NEGATIVE)
  • 11
    23-37154 BUSHING, END PLATE
    BUSHING, END PLATE
  • 12
    12-37155 WASHER SET, ARMATURE
    WASHER SET, ARMATURE
  • 13
    37158 BRUSH SET, NEGATIVE AND POSITIVE
    BRUSH SET, NEGATIVE AND POSITIVE
  • 14
    12-37161 WASHER, RETAINING-ARMATURE
    WASHER, RETAINING-ARMATURE
  • 15
    25-37167 GROMMET, STARTER MOTOR
    GROMMET, STARTER MOTOR
  • 16
    10-37166 BOLT, STARTER FIELD COIL
    BOLT, STARTER FIELD COIL
  • 17
    17-37171 PIN ASSEMBLY, ARM TO STARTER SOLENOID
    PIN ASSEMBLY, ARM TO STARTER SOLENOID
  • 18
    37170 ARM ASSEMBLY, SOLENOID
    ARM ASSEMBLY, SOLENOID
  • 19
    10-37169 SCREW KIT, SOLENOID ARM TO STARTER HOUSING
    SCREW KIT, SOLENOID ARM TO STARTER HOUSING
  • 20
    10-37165 BOLT, THRU-STARTER SOLENOID
    BOLT, THRU-STARTER SOLENOID
  • 21
    37168 PLATE (PAIR), STARTER SOLENOID
    PLATE (PAIR), STARTER SOLENOID
  • 22
    37164 SOLENOID ASSEMBLY, STARTER
    SOLENOID ASSEMBLY, STARTER
  • 23
    37153 WASHER AND NUT REPLACEMENT KIT, STARTER TERMINALS
    WASHER AND NUT REPLACEMENT KIT, STARTER TERMINALS
