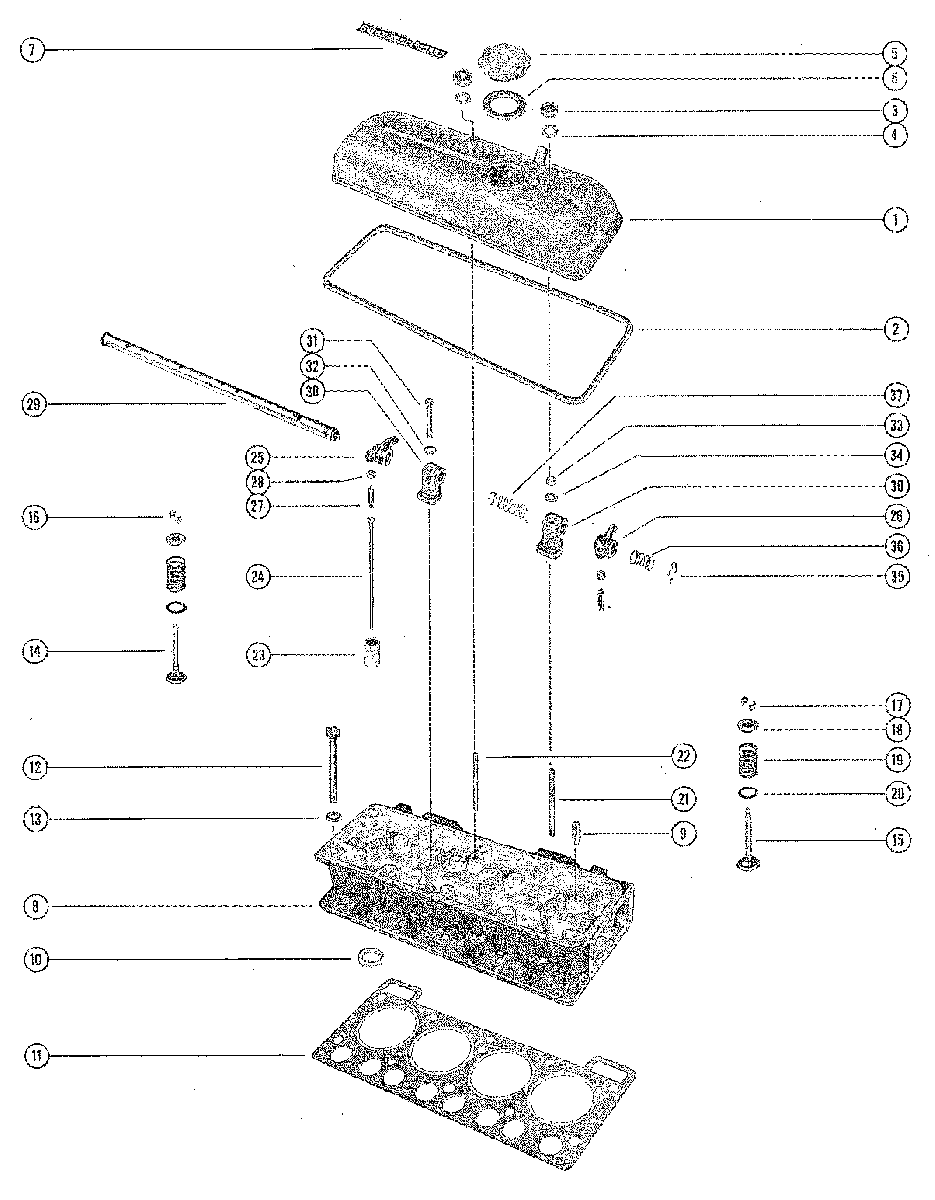

TOP COVER, ROCKER SHAFT AND CYLINDER HEAD для Mercruiser - 60 RENAULT 68 I/L4 1965-1968 1887079 THRU 2049044

  • №
    Артикул
    Название
  • 1
    37092 COVER, TOP
    COVER, TOP
  • 2
    27-37096 GASKET, TOP COVER
    GASKET, TOP COVER
  • 3
    11-37090 NUT, TOP COVER FASTENING
    NUT, TOP COVER FASTENING
  • 4
    12-23327 WASHER, TOP COVER FASTENING NUT
    WASHER, TOP COVER FASTENING NUT
  • 5
    37088 CAP, OIL FILLER
    CAP, OIL FILLER
  • 6
    27-37089 GASKET, OIL FILLER CAP
    (Part of 27-37073A1)
    GASKET, OIL FILLER CAP
    (Part of 27-37073A1)
  • 7
    37-38611 DECAL, TOP COVER
    DECAL, TOP COVER
  • 7
    37-38924 DECAL, TOP COVER (EXPORT ENGINES ONLY)-
    NOT AS SHOWN
    DECAL, TOP COVER (EXPORT ENGINES ONLY)-
    NOT AS SHOWN
  • 8
    940-2600 CYLINDER HEAD ASSEMBLY
    CYLINDER HEAD ASSEMBLY
  • 9
    37075 VALVE GUIDE
    (11.10MM O.S.)
    VALVE GUIDE
    (11.10MM O.S.)
  • 9
    37076 VALVE GUIDE
    (11.25MM O.S.)
    VALVE GUIDE
    (11.25MM O.S.)
  • 10
    37078 VALVE SEAT-CYLINDER HEAD
    (INLET)
    VALVE SEAT-CYLINDER HEAD
    (INLET)
  • 10
    37077 VALVE SEAT- CYLINDER HEAD
    (EXHAUST)
    VALVE SEAT- CYLINDER HEAD
    (EXHAUST)
  • 11
    27-37095 GASKET, CYLINDER HEAD
    GASKET, CYLINDER HEAD
  • 12
    10-37093 SCREW, CYHLINDER HEAD TO CYLINDER BLOCK (96MM)
    SCREW, CYHLINDER HEAD TO CYLINDER BLOCK (96MM)
  • 13
    12-37094 WASHER, CYLINDER HEAD SCREW
    WASHER, CYLINDER HEAD SCREW
  • 14
    37034 VALVE, INLET (LARGE HEAD)
    VALVE, INLET (LARGE HEAD)
  • 15
    37045 VALVE, EXHAUST (SMALL HEAD)
    VALVE, EXHAUST (SMALL HEAD)
  • 16
    28-37030 KEY, INLET VALVE (SINGLE GROOVE)
    KEY, INLET VALVE (SINGLE GROOVE)
  • 17
    28-37039 KEY, EXHAUST VALVE (DOUBLE GROOVE)
    KEY, EXHAUST VALVE (DOUBLE GROOVE)
  • 18
    37031 CAP, VALVE SPRING
    CAP, VALVE SPRING
  • 19
    24-37032 SPRING, VALVE
    SPRING, VALVE
  • 20
    12-37033 WASHER, VALVE SPRING
    WASHER, VALVE SPRING
  • 21
    16-37079 STUD, TOP COVER AND SUPPORT TO CYHLINDER HEAD (100MM)
    STUD, TOP COVER AND SUPPORT TO CYHLINDER HEAD (100MM)
  • 22
    16-37080 STUD, TOP COVER TO CYLINDER HEAD (92MM)
    STUD, TOP COVER TO CYLINDER HEAD (92MM)
  • 23
    37046 LIFTER, PUSH ROD
    LIFTER, PUSH ROD
  • 24
    37044 ROD, PUSH
    ROD, PUSH
  • 25
    37029 ARM, ROCKER - INLET
    ARM, ROCKER - INLET
  • 26
    37038 ARM, ROCKER - EXHAUST
    ARM, ROCKER - EXHAUST
  • 27
    10-37040 SCREW, ADJUSTING - PUSH ROD
    SCREW, ADJUSTING - PUSH ROD
  • 28
    11-37037 NUT, PUSH ROD ADJUSTING SCREW
    NUT, PUSH ROD ADJUSTING SCREW
  • 29
    37042 SHAFT, ROCKER
    SHAFT, ROCKER
  • 30
    37027 SUPPORT, ROCKER SHAFT
    SUPPORT, ROCKER SHAFT
  • 31
    10-37025 SCREW, SUPPORT TO CYLINDER HEAD (55MM)
    SCREW, SUPPORT TO CYLINDER HEAD (55MM)
  • 32
    12-37026 WASHER, ROCKER SHAFT SUPPORT SCREW
    WASHER, ROCKER SHAFT SUPPORT SCREW
  • 33
    11-46571 NUT, ROCKER SHAFT SUPPORT STUD
    NUT, ROCKER SHAFT SUPPORT STUD
  • 34
    12-37026 WASHER, ROCKER SHAFT SUPPORT STUD
    WASHER, ROCKER SHAFT SUPPORT STUD
  • 35
    18-37041 PIN (HAIR), ROCKER SHAFT
    PIN (HAIR), ROCKER SHAFT
  • 36
    24-37043 SPRING, ROCKER SHAFT (SHORT)
    SPRING, ROCKER SHAFT (SHORT)
  • 37
    24-37028 SPRING, ROCKER SHAFT (LONG)
    SPRING, ROCKER SHAFT (LONG)
  • -
    27-37073A GASKET SET-Miscellaneous
    GASKET SET-Miscellaneous
