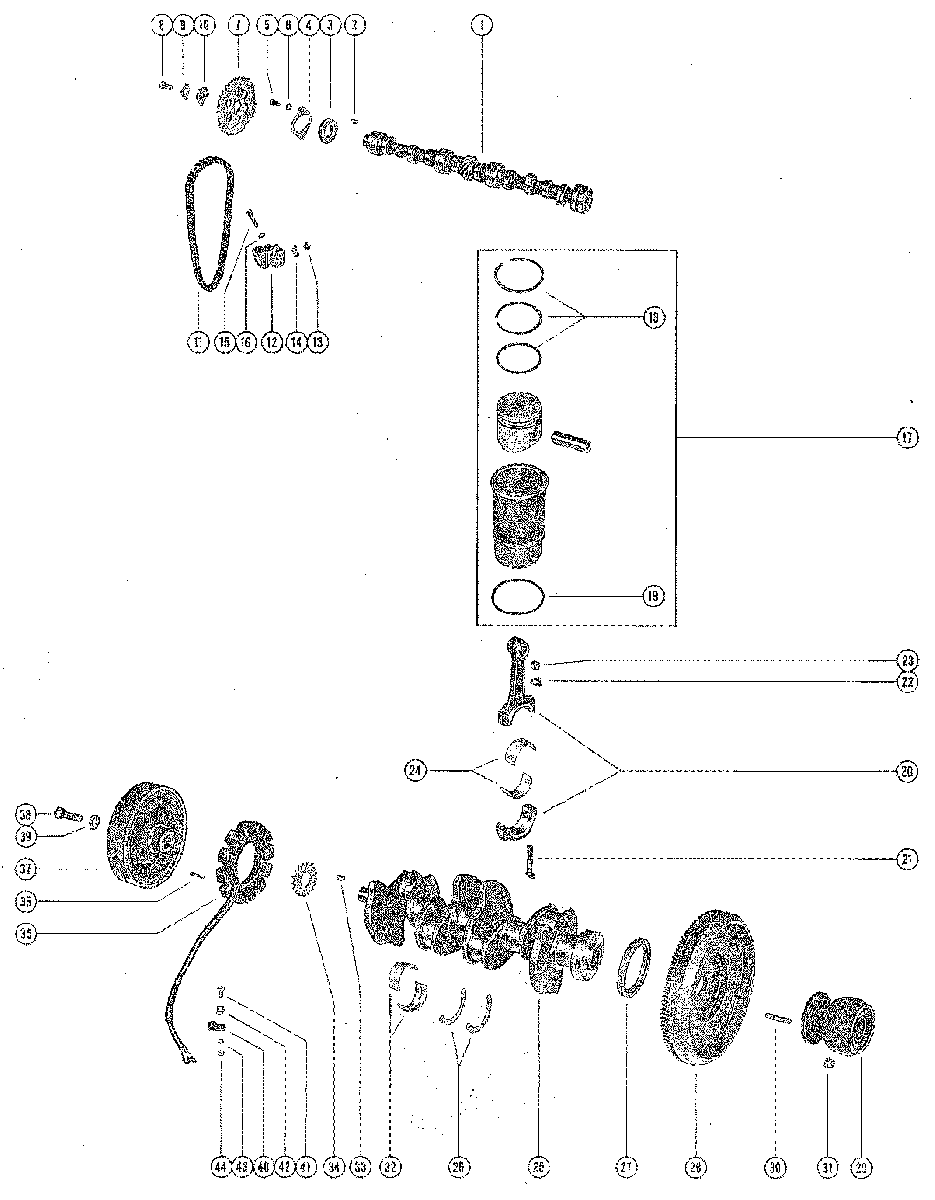

CAMSHAFT, CRANKSHAFT, PISTONS, FLYWHEEL AND STATOR для Mercruiser - 60 RENAULT 68 I/L4 1965-1968 1887079 THRU 2049044

  • №
    Артикул
    Название
  • 1
    435-2593 CAMSHAFT
    CAMSHAFT
  • 2
    28-37047 KEY, CAMSHAFT
    KEY, CAMSHAFT
  • 3
    23-37048 SPACER, THRUST - CAMSHAFT
    SPACER, THRUST - CAMSHAFT
  • 4
    37049 PLATE, THRUST - CAMSHAFT
    PLATE, THRUST - CAMSHAFT
  • 5
    10-37050 SCREW, THRUST PLATE TO CYLINDER BLOCK (12MM)
    SCREW, THRUST PLATE TO CYLINDER BLOCK (12MM)
  • 6
    13-46600 WASHER, THRUST PLATE SCREW
    WASHER, THRUST PLATE SCREW
  • 7
    43-37053 GEAR, TIMING - CAMSHAFT
    GEAR, TIMING - CAMSHAFT
  • 8
    10-46517 SCREW, TIMING GEAR TO CAMSHAFT (30MM)
    SCREW, TIMING GEAR TO CAMSHAFT (30MM)
  • 9
    14-37055 TAB WASHER, TIMING GEAR SCREW
    TAB WASHER, TIMING GEAR SCREW
  • 10
    12-37054 WASHER, TIMING GEAR SCREW
    WASHER, TIMING GEAR SCREW
  • 11
    37052 CHAIN, TIMING - CRANKSHAFT AND CAMSHAFT TIMING GEARS
    CHAIN, TIMING - CRANKSHAFT AND CAMSHAFT TIMING GEARS
  • 12
    37059 TENSIONER BLOCK ASSEMBLY, TIMING CHAIN
    TENSIONER BLOCK ASSEMBLY, TIMING CHAIN
  • 13
    10-37060 SCREW, SPRING GUIDE - TENSIONER BLOCK
    SCREW, SPRING GUIDE - TENSIONER BLOCK
  • 14
    13-37061 LOCKWASKER, SPRING GUIDE SCREW
    LOCKWASKER, SPRING GUIDE SCREW
  • 15
    10-37057 SCREW, TENSIONER BLOCK TO CYLINDER BLOCK (30MM)
    SCREW, TENSIONER BLOCK TO CYLINDER BLOCK (30MM)
  • 16
    13-46600 WASHER, TENSIONER BLOCK SCREW
    WASHER, TENSIONER BLOCK SCREW
  • 17
    740-2923 PISTON AND PISTON LINER ASSEMBLY
    PISTON AND PISTON LINER ASSEMBLY
  • 18
    39-37099A1 PISTON RING ASSEMBLY
    PISTON RING ASSEMBLY
  • 19
    27-37102A1 GASKET ASSEMBLY, CYLINDER SLEEVE
    GASKET ASSEMBLY, CYLINDER SLEEVE
  • 20
    616-2595 CONNECTING ROD ASSEMBLY
    (GREEN)
    CONNECTING ROD ASSEMBLY
    (GREEN)
  • 20
    616-2595 CONNECTING ROD ASSEMBLY
    (BLUE)
    CONNECTING ROD ASSEMBLY
    (BLUE)
  • 20
    616-2595 CONNECTING ROD ASSEMBLY
    (YELLOW AND BLUE)
    CONNECTING ROD ASSEMBLY
    (YELLOW AND BLUE)
  • 20
    616-2595 CONNECTING ROD ASSEMBLY
    (RED AND BLACK)
    CONNECTING ROD ASSEMBLY
    (RED AND BLACK)
  • 21
    10-37115 SCREW, CONNECTING ROD CAP
    SCREW, CONNECTING ROD CAP
  • 22
    14-37113 TAB WASHER, CONNECTING ROD CAP SCREW
    USED ON EARLY MODELS ONLY
    TAB WASHER, CONNECTING ROD CAP SCREW
    USED ON EARLY MODELS ONLY
  • 23
    11-37114 NUT, CONNECTING ROD CAP SCREW
    NUT, CONNECTING ROD CAP SCREW
  • 24
    23-37118 BEARING SET (4 PAIRS), CONNECTING ROD
    (44MM)(STANDARD)
    BEARING SET (4 PAIRS), CONNECTING ROD
    (44MM)(STANDARD)
  • 24
    23-37119 BEARING SET (4 PAIRS), CONNECTING ROD
    (43.75MM)
    BEARING SET (4 PAIRS), CONNECTING ROD
    (43.75MM)
  • 24
    23-37120 BEARING SET (4 PAIRS), CONNECTING ROD
    (43.5MM)
    BEARING SET (4 PAIRS), CONNECTING ROD
    (43.5MM)
  • 25
    434-2592 CRANKSHAFT
    CRANKSHAFT
  • 26
    15-37070 SHIM, SPACER - MAIN BEARING
    (2.30MM)
    SHIM, SPACER - MAIN BEARING
    (2.30MM)
  • 26
    15-37071 SHIM, SPACER - MAIN BEARING
    (2.40MM)
    SHIM, SPACER - MAIN BEARING
    (2.40MM)
  • 26
    15-37072 SHIM, SPACER -M MAIN BEARING
    (2.45MM)
    SHIM, SPACER -M MAIN BEARING
    (2.45MM)
  • 27
    26-37066 SEAL, REAR MAIN - CRANKSHAFT (CYLINDER BLOCK)
    SEAL, REAR MAIN - CRANKSHAFT (CYLINDER BLOCK)
  • 28
    228-2603 FLYWHEEL ASSEMBLY, CRANKSHAFT (ENGINE COUPLING END)
    FLYWHEEL ASSEMBLY, CRANKSHAFT (ENGINE COUPLING END)
  • 29
    38173A1 ENGINE COUPLING ASSEMBLY
    ENGINE COUPLING ASSEMBLY
  • 30
    16-38243 STUD, ENGINE COUPLING TO FLYWHEEL (1 27/32")
    STUD, ENGINE COUPLING TO FLYWHEEL (1 27/32")
  • 31
    11-38270 NUT, ENGINE COUPLING STUD
    NUT, ENGINE COUPLING STUD
  • 32
    23-37121 BEARING SET (5 PAIRS), CRANKSHAFT
    (46MM)(STANDARD)
    BEARING SET (5 PAIRS), CRANKSHAFT
    (46MM)(STANDARD)
  • 32
    23-37122 BEARING SET (5 PAIRS), CRANKSHAFT
    (45.75MM)
    BEARING SET (5 PAIRS), CRANKSHAFT
    (45.75MM)
  • 32
    23-37123 BEARING SET (5 PAIRS), CRANKSHAFT
    (45.5MM)
    BEARING SET (5 PAIRS), CRANKSHAFT
    (45.5MM)
  • 33
    28-37116 KEY, CRANKSHAFT
    KEY, CRANKSHAFT
  • 34
    43-37117 GEAR,TIMING - CRANKSHAFT
    GEAR,TIMING - CRANKSHAFT
  • 35
    398-2566 STATOR, ALTERNATOR
    STATOR, ALTERNATOR
  • 36
    10-57021 SCREW, STATOR TO TIMING COVER (7/8")
    SCREW, STATOR TO TIMING COVER (7/8")
  • 37
    227-2708A1 FLYWHEEL ASSEMBLY, CRANKSHAFT (STATOR END)
    FLYWHEEL ASSEMBLY, CRANKSHAFT (STATOR END)
  • 38
    10-38554 SCREW,FLYWHEEL TO CRANKSHAFT (40MM)
    SCREW,FLYWHEEL TO CRANKSHAFT (40MM)
  • 39
    12-24889 WASHER, FLYWHEEL SCREW
    WASHER, FLYWHEEL SCREW
  • 40
    54-22740 CLAMP, STATOR LEAD TO MOUNTING BRACKET
    CLAMP, STATOR LEAD TO MOUNTING BRACKET
  • 41
    10-32228 SCREW, STATOR LEAD CLAMP TO MOUNTING BRACKET (5/8")
    SCREW, STATOR LEAD CLAMP TO MOUNTING BRACKET (5/8")
  • 42
    8M0084613 "D" WASHER, STATOR LEAD CLAMP SCREW
    "D" WASHER, STATOR LEAD CLAMP SCREW
  • 43
    13-26996 LOCKWASHER, STATOR LEAD CLAMP SCREW
    LOCKWASHER, STATOR LEAD CLAMP SCREW
  • 44
    11-68219 NUT, STATOR LEAD CLAMP SCREW
    NUT, STATOR LEAD CLAMP SCREW
