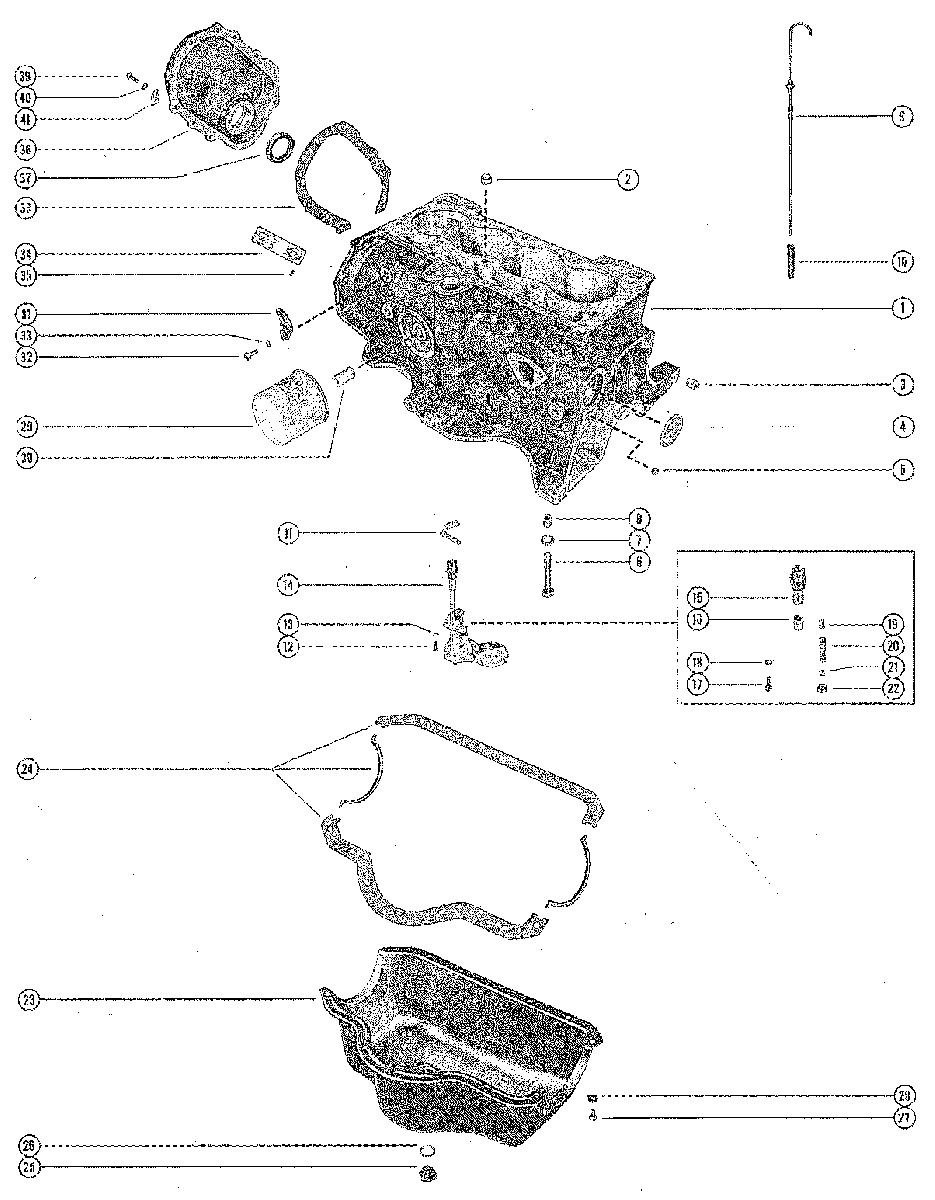

CYLINDER BLOCK, OIL PAN AND OIL PUMP ASSEMBLY для Mercruiser - 60 RENAULT 68 I/L4 1965-1968 1887079 THRU 2049044

  • №
    Артикул
    Название
  • 1
    845-2599 CYLINDER BLOCK ASSEMBLY
    CYLINDER BLOCK ASSEMBLY
  • 2
    17-37062 DOWEL, CYLINDER BLOCK TO CYLINDER HEAD
    DOWEL, CYLINDER BLOCK TO CYLINDER HEAD
  • 3
    17-37062 DOWEL, CYLINDER BLOCK TO FLYWHEEL HOUSING
    DOWEL, CYLINDER BLOCK TO FLYWHEEL HOUSING
  • 4
    19-37063 WELCH PLUG, CAMSHAFT BEARING HOLE - CYLINDER BLOCK
    WELCH PLUG, CAMSHAFT BEARING HOLE - CYLINDER BLOCK
  • 5
    22-37065 PLUG, OIL PASSAGE HOLE - CYLINDER BLOCK
    PLUG, OIL PASSAGE HOLE - CYLINDER BLOCK
  • 6
    10-37069 SCREW, MAIN BEARING CAP TO CYLINDER BLOCK (55MM)
    SCREW, MAIN BEARING CAP TO CYLINDER BLOCK (55MM)
  • 7
    12-37068 WASHER, MAIN BEARING CAP SCREW
    WASHER, MAIN BEARING CAP SCREW
  • 8
    23-37067 SPACER, MAIN BEARING CAP SCREW
    SPACER, MAIN BEARING CAP SCREW
  • 9
    37110 GAUGE, OIL LEVEL (DIP STICK)
    GAUGE, OIL LEVEL (DIP STICK)
  • 10
    23-37111 SLEEVE, OIL LEVEL GAUGE - CYLINDER BLOCK
    SLEEVE, OIL LEVEL GAUGE - CYLINDER BLOCK
  • 11
    27-37128 GASKET, OIL PUMP
    (Part of 27-37073A1)
    GASKET, OIL PUMP
    (Part of 27-37073A1)
  • 12
    10-37130 SCREW, OIL PUMP TO CYLINDER BLOCK (20MM)
    SCREW, OIL PUMP TO CYLINDER BLOCK (20MM)
  • 13
    13-46600 WASHER, OIL PUMP SCREW
    WASHER, OIL PUMP SCREW
  • 14
    37124 OIL PUMP ASSEMBLY
    OIL PUMP ASSEMBLY
  • 15
    37126 SHAFT, OIL PUMP
    SHAFT, OIL PUMP
  • 16
    23-37127 BUSHING, OIL PUMP SHAFT
    BUSHING, OIL PUMP SHAFT
  • 17
    10-37130 SCREW, OIL PUMP CLAMPING (20MM)
    SCREW, OIL PUMP CLAMPING (20MM)
  • 18
    13-46600 WASHER, OIL PUMP CLAMPING SCREW
    WASHER, OIL PUMP CLAMPING SCREW
  • 19
    37131 GUIDE, OIL PRESSURE RELEASE VALVE
    GUIDE, OIL PRESSURE RELEASE VALVE
  • 20
    24-37132 SPRING, TENSION - OIL PRESSURE RELEASE VALVE
    SPRING, TENSION - OIL PRESSURE RELEASE VALVE
  • 21
    30-37133 BALL, OIL PRESSURE RELEASE VALVE
    BALL, OIL PRESSURE RELEASE VALVE
  • 22
    37134 RETAINER, OIL PRESSURE RELEASE VALVE
    RETAINER, OIL PRESSURE RELEASE VALVE
  • 23
    37109 OIL PAN
    OIL PAN
  • 24
    27-37098 GASKET SET, OIL PAN
    GASKET SET, OIL PAN
  • 25
    22-37106 PLUG, DRAIN - OIL PAN
    PLUG, DRAIN - OIL PAN
  • 26
    27-37105 GASKET, OIL PAN DRAIN PLUG
    (Part of 27-37073A1)
    GASKET, OIL PAN DRAIN PLUG
    (Part of 27-37073A1)
  • 27
    10-37107 SCREW, OIL PAN TO CYLINDER BLOCK (13MM)
    SCREW, OIL PAN TO CYLINDER BLOCK (13MM)
  • 28
    12-37108 WASHER, OIL PAN SCREW
    WASHER, OIL PAN SCREW
  • 29
    803470Q OIL FILTER
    OIL FILTER
  • 30
    37125 ADAPTOR, OIL FILTER TO CYLINDER BLOCK
    ADAPTOR, OIL FILTER TO CYLINDER BLOCK
  • 31
    54-72531 EYE, LIFTING - CYLINDER BLOCK
    EYE, LIFTING - CYLINDER BLOCK
  • 32
    10-38563 SCREW, LIFTING EYE TO CYLINDER BLOCK (20MM)
    SCREW, LIFTING EYE TO CYLINDER BLOCK (20MM)
  • 33
    13-26993 LOCKWASHER, LIFTING EYE SCREW
    LOCKWASHER, LIFTING EYE SCREW
  • 34
    38-38876 SERIAL PLATE, CYLINDER BLOCK
    SERIAL PLATE, CYLINDER BLOCK
  • 35
    17-37082 RIVET, SERIAL PLATE TO CYLINDER BLOCK
    RIVET, SERIAL PLATE TO CYLINDER BLOCK
  • 36
    38550A1 COVER ASSEMBLY, TIMING
    COVER ASSEMBLY, TIMING
  • 37
    26-38517 OIL SEAL, TIMING COVER
    OIL SEAL, TIMING COVER
  • 38
    27-37073 GASKET, TIMING COVER
    (Part of 27-37073A1)
    GASKET, TIMING COVER
    (Part of 27-37073A1)
  • 39
    10-38521 SCREW, TIMING COVER TO CYLINDER BLOCK (18MM)
    SCREW, TIMING COVER TO CYLINDER BLOCK (18MM)
  • 40
    13-26992 LOCKWASHER,TIMING COVERE SCREW
    LOCKWASHER,TIMING COVERE SCREW
  • 41
    54-33361 CLIP, TIMING COVER SCREW
    CLIP, TIMING COVER SCREW
  • -
    27-37073A1 GASKET SET-Miscellaneous
    GASKET SET-Miscellaneous
