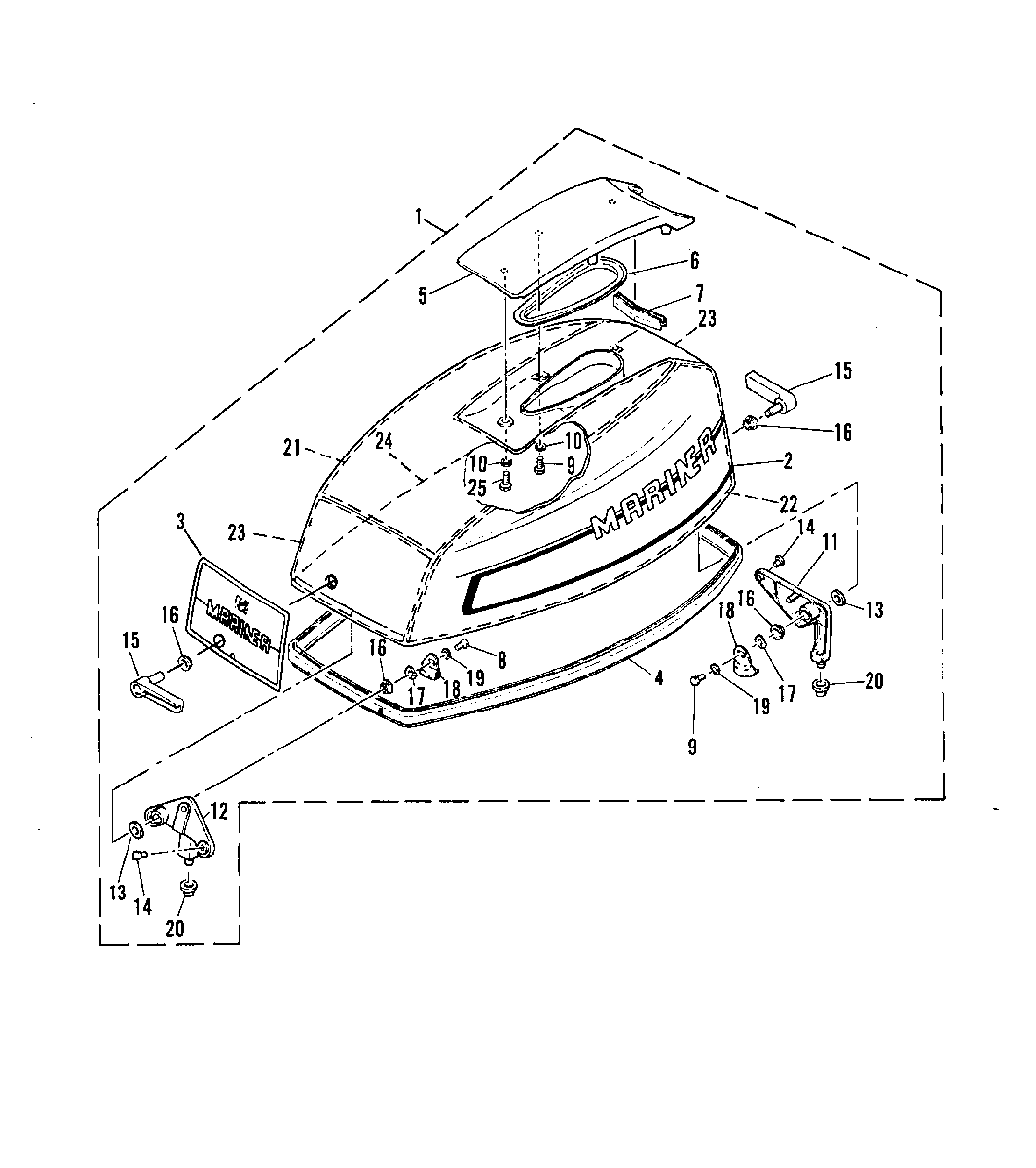

TOP COWLING для Mariner - 55 663-004041 AND UP

  • №
    Артикул
    Название
  • 1
    2168-810943M TOP COWL ASSEMBLY SEE NOTE #1
    TOP COWL ASSEMBLY SEE NOTE #1
  • 2
    37-810936A90 DECAL SET SEE NOTE #1
    DECAL SET SEE NOTE #1
  • 3
    N.S.S. DECAL, FRONT (PART OF 37-810936A90) SEE NOTE #1
    DECAL, FRONT (PART OF 37-810936A90) SEE NOTE #1
  • 1
    2168-810943M TOP COWL ASSEMBLY SEE NOTE #2
    TOP COWL ASSEMBLY SEE NOTE #2
  • 2
    37-95662M DECAL, SIDE AND REAR SET SEE NOTE #2
    DECAL, SIDE AND REAR SET SEE NOTE #2
  • 3
    37-95663M DECAL, FRONT
    SERIAL (E-004021, EL-316399) AND ABOVE
    DECAL, FRONT
    SERIAL (E-004021, EL-316399) AND ABOVE
  • 3
    97797M DECAL, FRONT
    SERIAL (E-004020, EL-316338) AND BELOW
    DECAL, FRONT
    SERIAL (E-004020, EL-316338) AND BELOW
  • 4
    83043M SEAL, TOP COWL
    SEAL, TOP COWL
  • 5
    83024M COVER, AIR DUCT
    COVER, AIR DUCT
  • 6
    83025M AIR SHROUD
    AIR SHROUD
  • 7
    83039M SEAL, RUBBER
    SEAL, RUBBER
  • 8
    10-91772M BOLT
    SERIAL (E-004476, EL-319171) AND ABOVE
    BOLT
    SERIAL (E-004476, EL-319171) AND ABOVE
  • 8
    10-826957M BOLT
    SERIAL (E-004475, EL-319170) AND BELOW
    BOLT
    SERIAL (E-004475, EL-319170) AND BELOW
  • 9
    10-91772M BOLT
    BOLT
  • 10
    12-82214M WASHER
    WASHER
  • 11
    83040M HOLDER
    HOLDER
  • 12
    83041M HOLDER
    HOLDER
  • 13
    12-97098M WASHER
    WASHER
  • 14
    17-82982M RIVET
    RIVET
  • 15
    83026M LEVER, COWL CLAMP
    LEVER, COWL CLAMP
  • 16
    23-41823M BUSHING
    BUSHING
  • 17
    13-81871M WAVE WASHER
    WAVE WASHER
  • 18
    83027M CLAMP, COWL
    CLAMP, COWL
  • 19
    12-81794M WASHER
    WASHER
  • 20
    83042M DAMPER
    DAMPER
  • 21
    83232M SOUND BLANKET, TOP
    SOUND BLANKET, TOP
  • 22
    83233M SOUND BLANKET, PORT
    SOUND BLANKET, PORT
  • 23
    84323M SOUND BLANKET, FRONT AND REAR
    SOUND BLANKET, FRONT AND REAR
  • 24
    95619M SOUND BLANKET, STARBOARD
    SOUND BLANKET, STARBOARD
  • 25
    10-826957M BOLT
    (E-004476 EL-319171) AND ABOVE
    BOLT
    (E-004476 EL-319171) AND ABOVE
