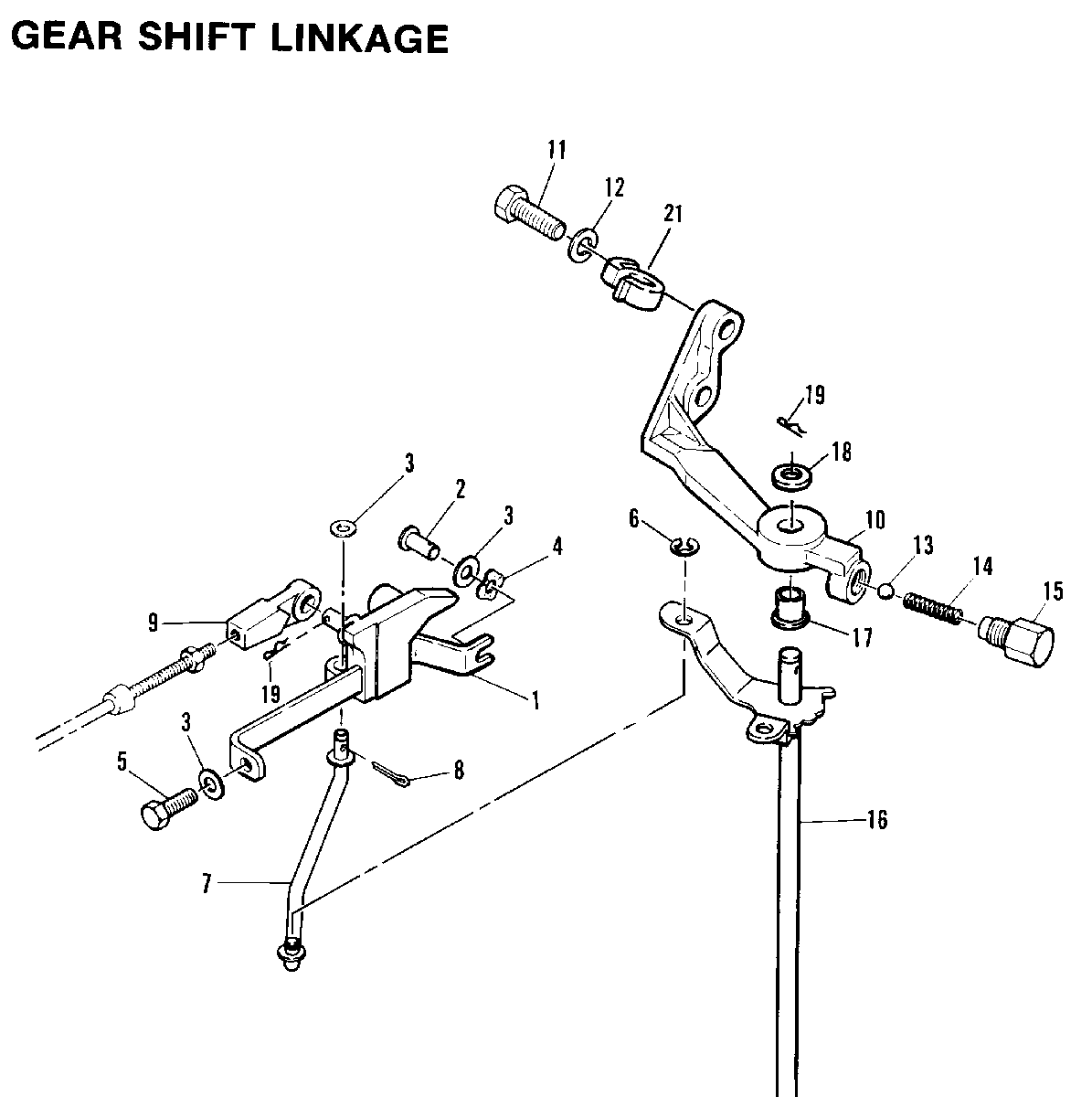

GEAR SHIFT LINKAGE для Mariner - 55 663-004041 AND UP

  • №
    Артикул
    Название
  • 1
    98919M SHIFT BRACKET
    SHIFT BRACKET
  • 2
    17-82137M CLEVIS PIN
    CLEVIS PIN
  • 3
    12-82214M WASHER
    WASHER
  • 4
    13-81866M WAVE WASHER
    WAVE WASHER
  • 5
    10-82423M BOLT
    BOLT
  • 6
    53-82330M SNAP RING
    SNAP RING
  • 7
    84209M SHIFT ROD LEVER
    SHIFT ROD LEVER
  • 8
    18-43089M COTTER PIN
    COTTER PIN
  • 9
    81480M CLEVIS
    CLEVIS
  • 10
    98920M BRACKET
    BRACKET
  • 11
    10-82441M BOLT
    BOLT
  • 12
    13-82215M LOCKWASHER
    LOCKWASHER
  • 13
    92659M BALL
    BALL
  • 14
    24-82081M SPRING
    SPRING
  • 15
    23-80635M RETAINER
    RETAINER
  • 16
    19142M SHIFT ROD (E)
    SERIAL (E-004424 EL-318399) AND ABOVE
    SHIFT ROD (E)
    SERIAL (E-004424 EL-318399) AND ABOVE
  • 16
    19143M SHIFT ROD (EL)
    SERIAL (E-004424 EL-318399) AND ABOVE
    SHIFT ROD (EL)
    SERIAL (E-004424 EL-318399) AND ABOVE
  • 16
    19142M SHIFT ROD (E)
    SERIAL (E-004423 EL-318398) AND BELOW
    SHIFT ROD (E)
    SERIAL (E-004423 EL-318398) AND BELOW
  • 16
    19143M SHIFT ROD (EL)
    SERIAL (E-004423 EL-318398) AND BELOW
    SHIFT ROD (EL)
    SERIAL (E-004423 EL-318398) AND BELOW
  • 17
    23-98923M BUSHING
    BUSHING
  • 18
    12-82216M WASHER
    WASHER
  • 19
    18-82053M COTTER PIN
    COTTER PIN
  • 20
    98924M BOOT
    BOOT
  • 21
    54-92664M CLAMP
    CLAMP
