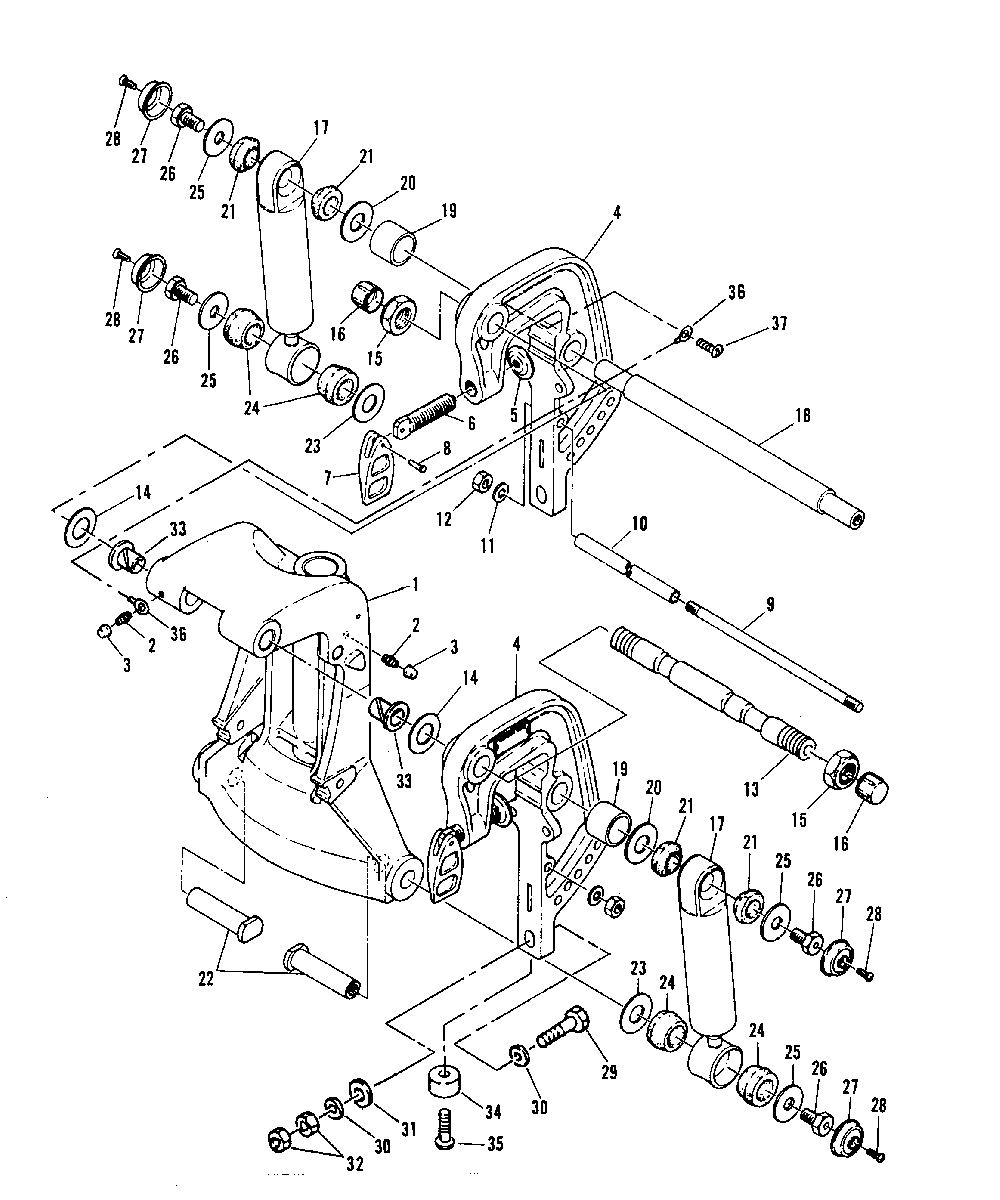

CLAMP AND SWIVEL BRACKET для Mariner - 55 663-004041 AND UP
-
№АртикулНазвание
-
11485-8818M SWIVEL BRACKET (E)SWIVEL BRACKET (E)
-
11485-8819M SWIVEL BRACKET (EL)SWIVEL BRACKET (EL)
-
222-82369M GREASE FITTINGGREASE FITTING
-
381439M CAPCAP
-
41484-8933M CLAMP BRACKETCLAMP BRACKET
-
512-80638M PAD, TRANSOM CLAMP SCREWPAD, TRANSOM CLAMP SCREW
-
610-92649M SCREW, TRANSOM CLAMPSCREW, TRANSOM CLAMP
-
711868M HANDLE, TRANSOM CLAMP SCREWHANDLE, TRANSOM CLAMP SCREW
-
817-81889M PINPIN
-
916-81383M STUD, CLAMP BRACKETSTUD, CLAMP BRACKET
-
1023-81981M SPACER, CLAMP BRACKET STUDSPACER, CLAMP BRACKET STUD
-
1112-82220M WASHERWASHER
-
1211-82395M NUTNUT
-
1310-41312M BOLT, CLAMP BRACKETBOLT, CLAMP BRACKET
-
1412-81836M WASHERWASHER
-
1511-879172252 NUTNUT
-
16811914M CAPCAP
-
1755-92650M SHOCK ABSORBERSHOCK ABSORBER
-
1817-81386M SHAFT, UPPER SHOCK MOUNTSHAFT, UPPER SHOCK MOUNT
-
1923-82120M SPACER, SHOCK MOUNTSPACER, SHOCK MOUNT
-
2012-81830M WASHERWASHER
-
2123-81939M BUSHINGBUSHING
-
2217-81384M PIN, LOWER SHOCK MOUNTPIN, LOWER SHOCK MOUNT
-
2312-81859M WASHERWASHER
-
2423-81938M BUSHINGBUSHING
-
2512-81812M WASHERWASHER
-
2610-81718M BOLTBOLT
-
2792651M COVER, SHOCK MOUNTCOVER, SHOCK MOUNT
-
2810-95467M SCREWSCREW
-
2910-84970M BOLTBOLT
-
3012-82220M WASHER
SERIAL (E-004476 EL-319171) AND ABOVEWASHER
SERIAL (E-004476 EL-319171) AND ABOVE -
3112-81812M WASHER
SERIAL (E-004475 EL-319170) AND BELOWWASHER
SERIAL (E-004475 EL-319170) AND BELOW -
3211-82395M NUTNUT
-
3323-41313M BUSHINGBUSHING
-
3484422M ANODE
SERIAL (E-004476 EL-319171) AND ABOVEANODE
SERIAL (E-004476 EL-319171) AND ABOVE -
3484422M ANODE
SERIAL (E-004475 EL-319170) AND BELOWANODE
SERIAL (E-004475 EL-319170) AND BELOW -
3510-92679M SCREWSCREW
-
3684-16716M GROUND WIRE
SERIAL (E-004318 EL-317711) AND ABOVEGROUND WIRE
SERIAL (E-004318 EL-317711) AND ABOVE -
3684-16716M GROUND WIRE
SERIAL (E-004317 EL-317710) AND BELOWGROUND WIRE
SERIAL (E-004317 EL-317710) AND BELOW -
3710-11832M SCREWSCREW
