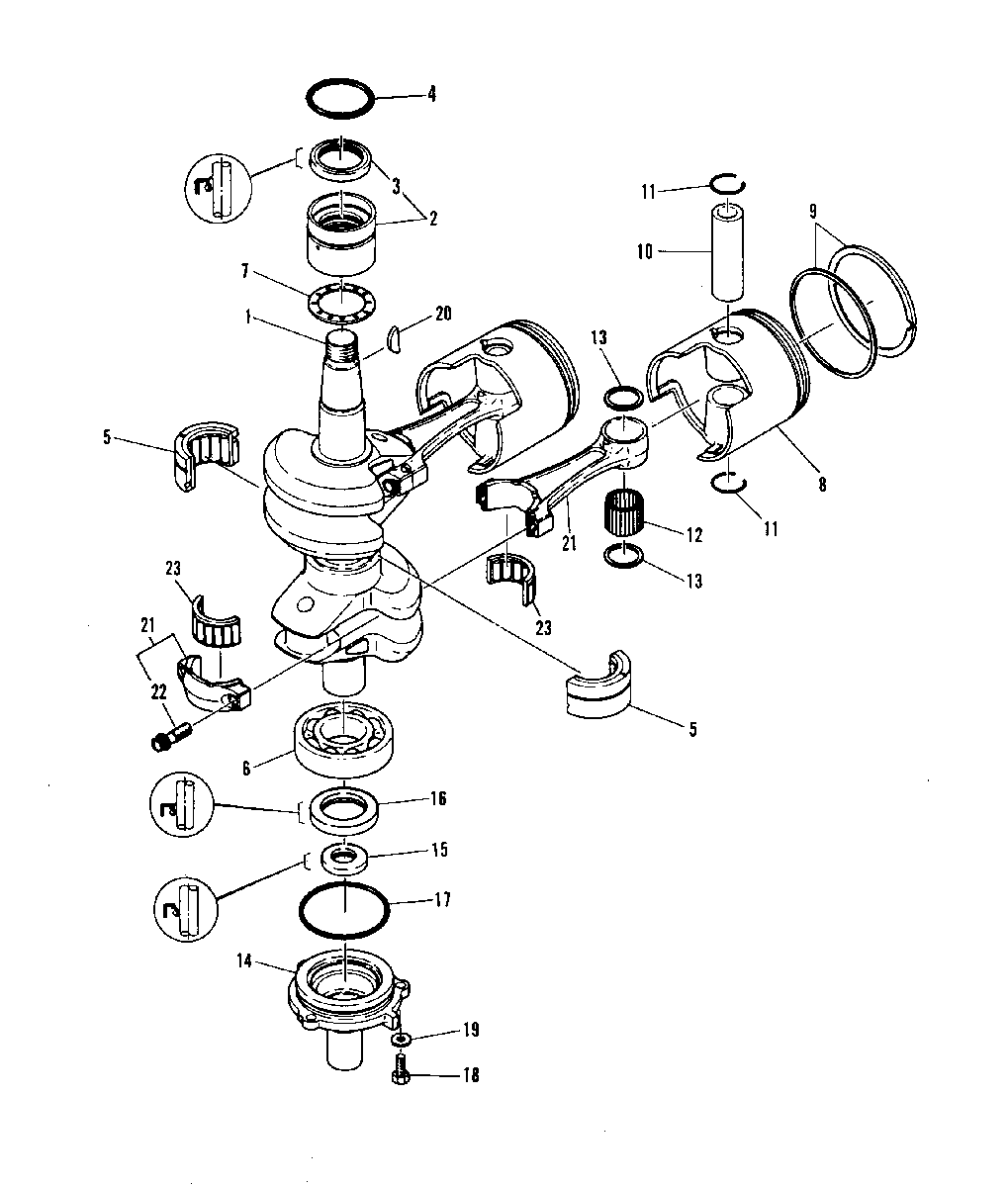

CRANKSHAFT AND PISTON для Mariner - 55 663-004041 AND UP

  • №
    Артикул
    Название
  • 1
    463-6825M CRANKSHAFT ASSEMBLY
    CRANKSHAFT ASSEMBLY
  • 2
    31-82312T NEEDLE BEARING
    NEEDLE BEARING
  • 3
    26-82249M OIL SEAL (UPPER)
    OIL SEAL (UPPER)
  • 4
    25-82276M "O" RING (UPPER)
    "O" RING (UPPER)
  • 5
    31-97837T CENTER MAIN BEARING
    CENTER MAIN BEARING
  • 6
    30-814560T BEARING (LOWER)
    BEARING (LOWER)
  • 7
    15-81259M SHIM
    SHIM
  • 8
    761-9276M PISTON (STANDARD)
    PISTON (STANDARD)
  • 8
    761-9277M PISTON (1ST. O.S. - 82.25MM)
    PISTON (1ST. O.S. - 82.25MM)
  • 8
    761-9278M PISTON (2ND O.S. - 82.50MM)
    PISTON (2ND O.S. - 82.50MM)
  • 9
    39-92625T PISTON RING SET (STANDARD)
    PISTON RING SET (STANDARD)
  • 9
    39-92626T PISTON RING SET (1ST O.S. - 82.25MM)
    PISTON RING SET (1ST O.S. - 82.25MM)
  • 9
    39-92627T PISTON RING SET (2ND O.S. - 82.50MM)
    PISTON RING SET (2ND O.S. - 82.50MM)
  • 10
    41-81263T PISTON PIN
    PISTON PIN
  • 11
    53-81264M SNAP RING
    SNAP RING
  • 12
    29-82353M BEARING, CONNECTING ROD (PISTON END)
    BEARING, CONNECTING ROD (PISTON END)
  • 13
    12-81831M RETAINER
    RETAINER
  • 14
    41828M HOUSING, OIL SEAL
    HOUSING, OIL SEAL
  • 15
    26-82255M OIL SEAL (LOWER)
    OIL SEAL (LOWER)
  • 16
    26-82248M OIL SEAL (LOWER)
    OIL SEAL (LOWER)
  • 17
    25-82286M "O" RING
    "O" RING
  • 18
    10-826957M BOLT
    BOLT
  • 19
    12-82214M WASHER
    WASHER
  • 20
    28-81915M KEY
    KEY
  • 21
    629-8813M CONNECTING ROD ASSEMBLY
    CONNECTING ROD ASSEMBLY
  • 22
    10-81715M BOLT
    BOLT
  • 23
    31-41298M BEARING, CONNECTING ROD (CRANKSHAFT END)
    BEARING, CONNECTING ROD (CRANKSHAFT END)
  • --
    27-84168M POWERHEAD GASKET SET
    CONTENTS INDICATED BY FOOTNOTE 12.
    POWERHEAD GASKET SET
    CONTENTS INDICATED BY FOOTNOTE 12.
