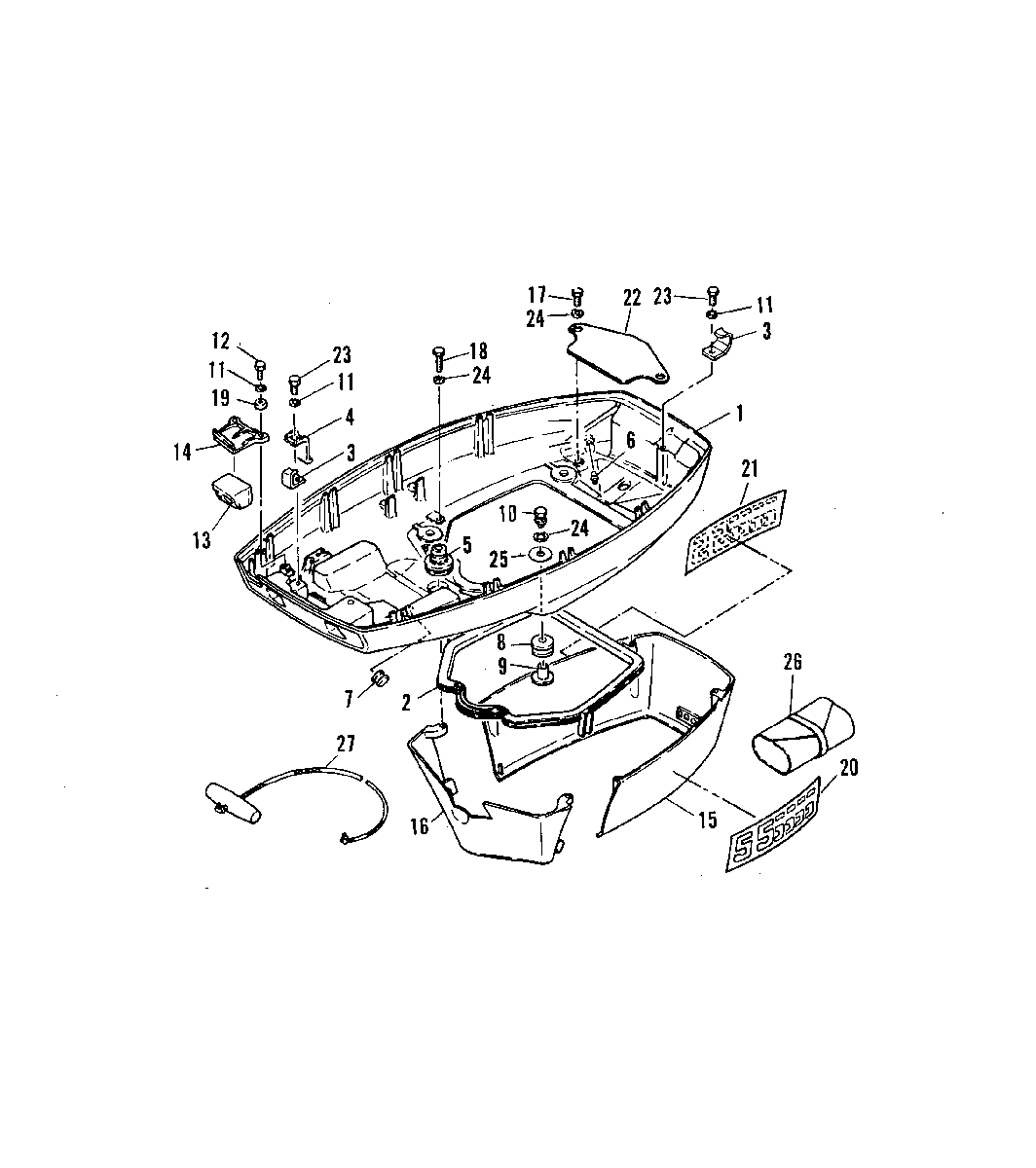

BOTTOM COWLING для Mariner - 55 663-004041 AND UP

  • №
    Артикул
    Название
  • 1
    2168-9367M BOTTOM COWL
    BOTTOM COWL
  • 2
    27-83044M SEAL, BOTTOM COWL TO APRON
    SEAL, BOTTOM COWL TO APRON
  • 3
    83045M HOOK, COWL CLAMP
    HOOK, COWL CLAMP
  • 4
    82996M CLAMP
    CLAMP
  • 5
    25-81369M GROMMET
    GROMMET
  • 6
    22-81326M FITTING, LOWER COWL
    FITTING, LOWER COWL
  • 7
    25-82061M GROMMET
    GROMMET
  • 8
    25-93101M GROMMET
    GROMMET
  • 9
    23-83610M COLLAR
    COLLAR
  • 10
    10-83285M BOLT
    BOLT
  • 11
    13-82212M LOCKWASHER
    LOCKWASHER
  • 12
    10-826957M BOLT
    BOLT
  • 13
    81370M BUMPER, COWL
    BUMPER, COWL
  • 14
    83153M RETAINER, COWL BUMPER
    RETAINER, COWL BUMPER
  • 15
    95664M COVER, COWL (REAR)
    COVER, COWL (REAR)
  • 16
    95665M COVER, COWL (FRONT)
    COVER, COWL (FRONT)
  • 17
    10-84058M BOLT
    BOLT
  • 18
    10-82405M BOLT
    BOLT
  • 19
    12-82214M WASHER
    WASHER
  • 20/21
    N.S.S. DECAL (PART OF 37-810936A90)
    DECAL (PART OF 37-810936A90)
  • 20/21
    37-95666M DECAL (HP)(PORT AND STARBOARD)
    SERIAL (E-004121, EL-316399) AND ABOVE
    DECAL (HP)(PORT AND STARBOARD)
    SERIAL (E-004121, EL-316399) AND ABOVE
  • 22
    83047M COVER, BOTTOM
    COVER, BOTTOM
  • 23
    10-84211M BOLT
    BOLT
  • 24
    13-82212M LOCKWASHER
    LOCKWASHER
  • 25
    12-81796M WASHER
    WASHER
  • 26
    91-803581 TOOL KIT
    TOOL KIT
  • 27
    47341A11 ROPE, EMERGENCY START
    ROPE, EMERGENCY START
  • 28
    37-95666M DECAL (HP)(PORT)
    SERIAL (E-004020 EL-316338) AND BELOW
    DECAL (HP)(PORT)
    SERIAL (E-004020 EL-316338) AND BELOW
  • 29
    37-95666M DECAL (HP)(STARBOARD)
    SERIAL (E-004020 EL-316338) AND BELOW
    DECAL (HP)(STARBOARD)
    SERIAL (E-004020 EL-316338) AND BELOW
