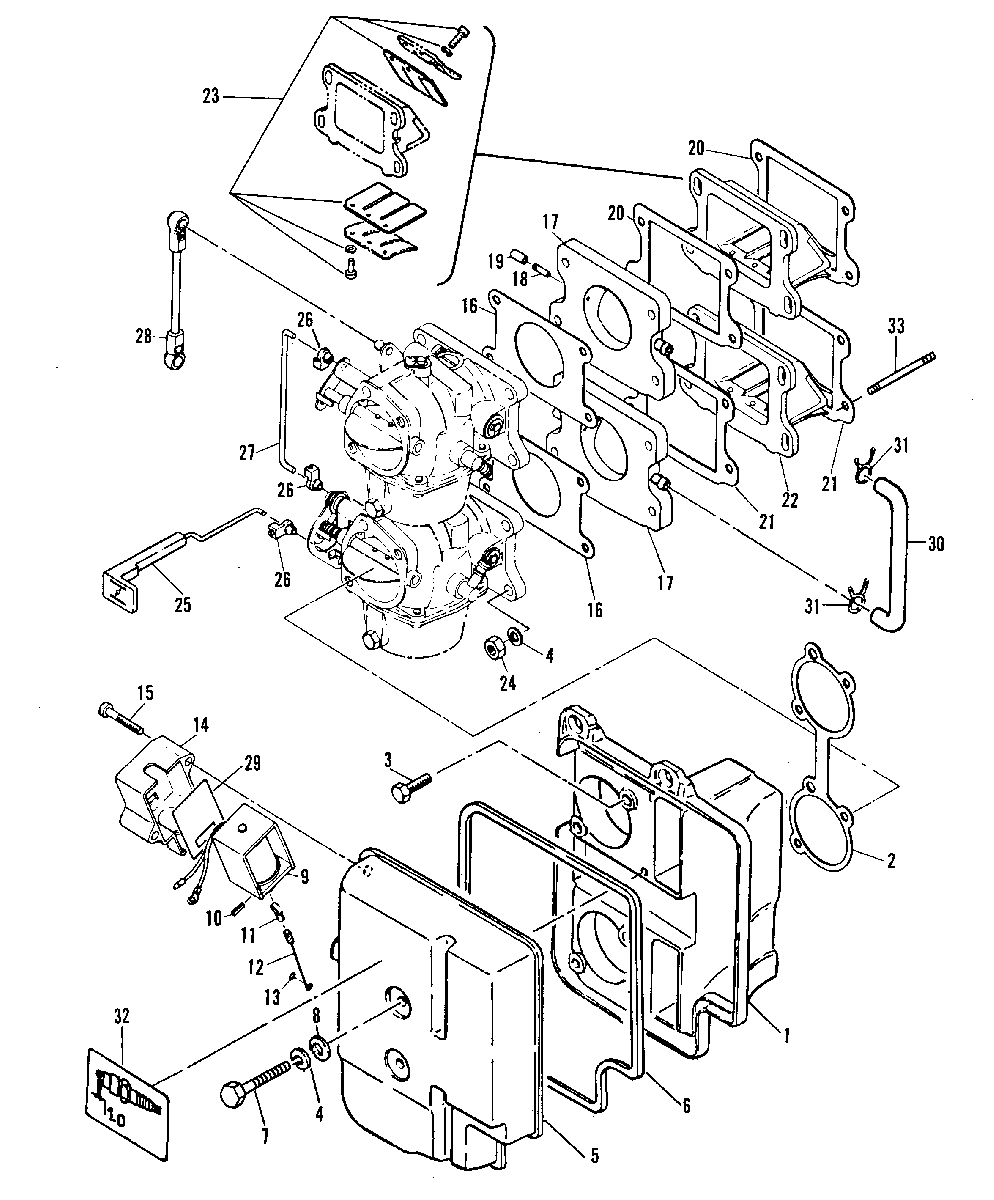

INTAKE MANIFOLD для Mariner - 55 663-004041 AND UP

  • №
    Артикул
    Название
  • 1
    92629M AIR INTAKE BASE
    AIR INTAKE BASE
  • 2
    27-81276M GASKET
    GASKET
  • 3
    10-82405M BOLT
    BOLT
  • 4
    13-82212M LOCKWASHER
    LOCKWASHER
  • 5
    92630M AIR INTAKE COVER
    AIR INTAKE COVER
  • 6
    27-92631M GASKET
    GASKET
  • 7
    10-84657M BOLT
    BOLT
  • 8
    12-82214M WASHER
    WASHER
  • 9
    89-84410M SOLENOID
    SOLENOID
  • 10
    17-82145M ROLL PIN
    ROLL PIN
  • 11
    84411M HOOK
    HOOK
  • 12
    84412M WIRE
    WIRE
  • 13
    25-82258M "O" RING
    "O" RING
  • 14
    81551M COVER, SOLENOID
    COVER, SOLENOID
  • 15
    10-82522M SCREW
    SCREW
  • 16
    27-81272 GASKET
    GASKET
  • 17
    92632M INTAKE MANIFOLD
    INTAKE MANIFOLD
  • 18
    22-80122M PIPE, OVER FLOW
    PIPE, OVER FLOW
  • 19
    80454M CAP
    CAP
  • 20
    27-81269M GASKET, MANIFOLD (UPPER)
    GASKET, MANIFOLD (UPPER)
  • 21
    27-81270M GASKET, MANIFOLD (LOWER)
    GASKET, MANIFOLD (LOWER)
  • 22
    34-95630M REED VALVE
    REED VALVE
  • 23
    34-92676M REED SET (REED STOPS NOT INCLUDED)
    REED SET (REED STOPS NOT INCLUDED)
  • 24
    11-82389M NUT
    NUT
  • 25
    81337M CHOKE ROD
    CHOKE ROD
  • 26
    16333 CONNECTOR
    CONNECTOR
  • 27
    810938M ROD, CHOKE LINK
    SERIAL 00004516-09999999
    ROD, CHOKE LINK
    SERIAL 00004516-09999999
  • 28
    810939M ROD, THROTTLE ADJUSTMENT
    SERIAL 00004516-09999999
    ROD, THROTTLE ADJUSTMENT
    SERIAL 00004516-09999999
  • 27
    810938M ROD, CHOKE LINK AND BELOW
    SERIAL 00000000-00004515
    ROD, CHOKE LINK AND BELOW
    SERIAL 00000000-00004515
  • 28
    810939M ROD, THROTTLE ADJUSTMENT
    SERIAL 00000000-00004515
    ROD, THROTTLE ADJUSTMENT
    SERIAL 00000000-00004515
  • 29
    81554M DAMPER
    DAMPER
  • 30
    32-84415M HOSE
    HOSE
  • 31
    54-82047M CLAMP
    CLAMP
  • 32
    37-84416M DECAL
    SERIAL 00000000-00004423
    DECAL
    SERIAL 00000000-00004423
  • 33
    16-81735M STUD
    STUD
  • --
    27-84168M POWERHEAD GASKET SET
    CONTENTS INDICATED BY FOOTNOTE 12.
    POWERHEAD GASKET SET
    CONTENTS INDICATED BY FOOTNOTE 12.
  • --
    84419M CARBURETOR REPAIR KIT
    CONTENTS INDICATED BY FOOTNOTE 11.
    CARBURETOR REPAIR KIT
    CONTENTS INDICATED BY FOOTNOTE 11.
  • --
    19141M CARBURETOR REPAIR KIT
    CONTENTS INDICATED BY FOOTNOTE 11.
    CARBURETOR REPAIR KIT
    CONTENTS INDICATED BY FOOTNOTE 11.
