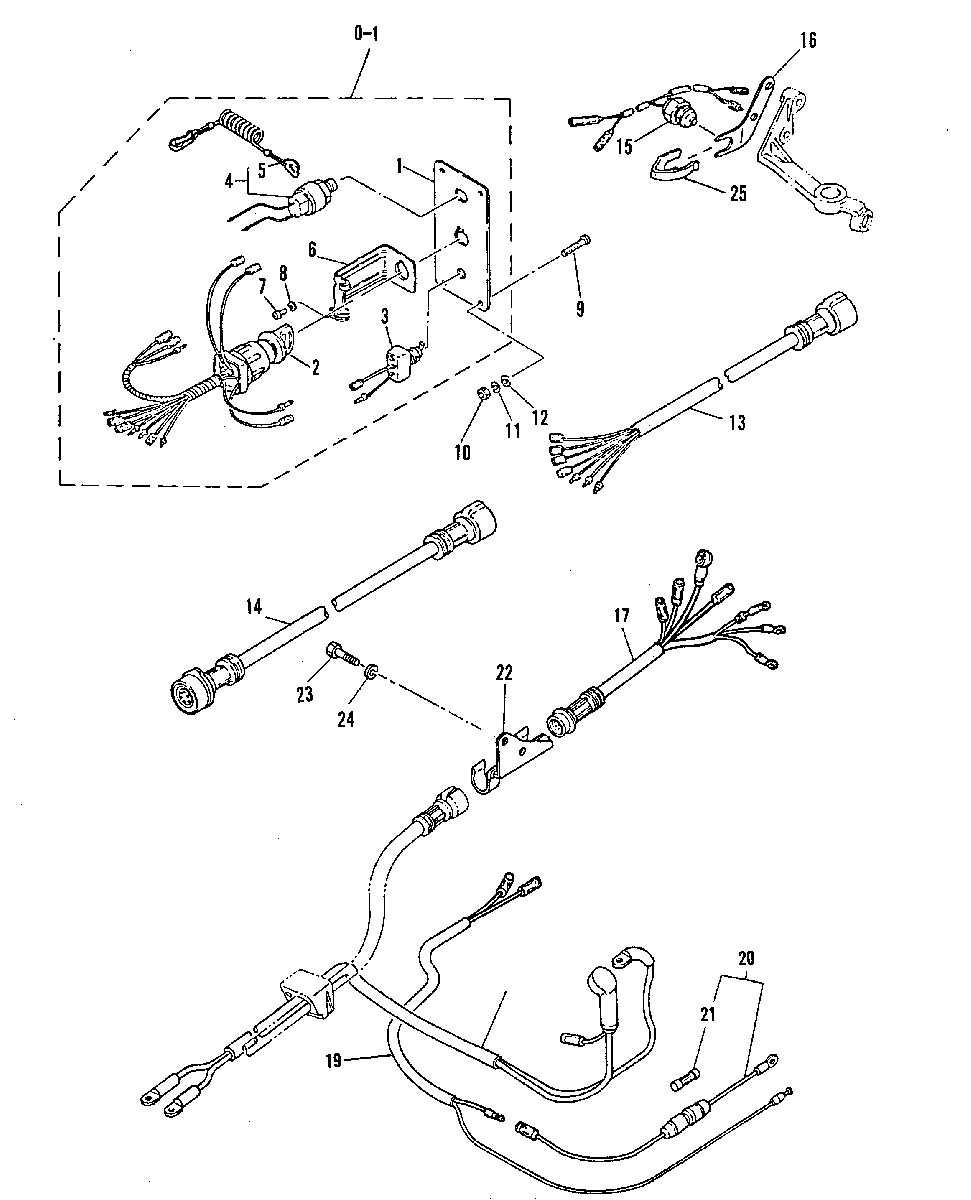

ELECTRIC START COMPONENTS для Mariner - 55 663-004041 AND UP

  • №
    Артикул
    Название
  • 0-1
    18975M SWITCH PANEL ASSEMBLY
    SWITCH PANEL ASSEMBLY
  • 1
    16711M SWITCH PANEL
    SERIAL (E-004318 EL-317711) AND ABOVE
    SWITCH PANEL
    SERIAL (E-004318 EL-317711) AND ABOVE
  • 1
    N.L.A. SWITCH PANEL
    SERIAL (E-004317 EL-317710) AND BELOW
    SWITCH PANEL
    SERIAL (E-004317 EL-317710) AND BELOW
  • 2
    87-8M0078321 MAIN SWITCH
    MAIN SWITCH
  • 3
    87-84944M CHOKE SWITCH
    CHOKE SWITCH
  • 4
    87-16710M KILL SWITCH
    SERIAL (E-004318 EL-317711) AND ABOVE
    KILL SWITCH
    SERIAL (E-004318 EL-317711) AND ABOVE
  • 4
    87-97682M KILL SWITCH
    SERIAL (E-004317 EL-317710) AND BELOW
    KILL SWITCH
    SERIAL (E-004317 EL-317710) AND BELOW
  • 5
    97756M STOPPER
    STOPPER
  • 6
    16712M BRACKET
    SERIAL (E-004318 EL-317711) AND ABOVE
    BRACKET
    SERIAL (E-004318 EL-317711) AND ABOVE
  • 6
    81537M BRACKET
    SERIAL (E-004317 EL-317710) AND BELOW
    BRACKET
    SERIAL (E-004317 EL-317710) AND BELOW
  • 7
    10-82500M SCREW
    SERIAL (E-004475 EL-319170) AND BELOW
    SCREW
    SERIAL (E-004475 EL-319170) AND BELOW
  • 8
    13-82206M LOCKWASHER
    SERIAL (E-004475 EL-319170) AND BELOW
    LOCKWASHER
    SERIAL (E-004475 EL-319170) AND BELOW
  • 9
    10-84946M SCREW
    SERIAL (E-004318 EL-317711) AND ABOVE
    SCREW
    SERIAL (E-004318 EL-317711) AND ABOVE
  • 9
    10-84946M SCREW
    SERIAL (E-004317 EL-317710) AND BELOW
    SCREW
    SERIAL (E-004317 EL-317710) AND BELOW
  • 10
    11-82388M NUT
    SERIAL (E-004318 EL-317711) AND ABOVE
    NUT
    SERIAL (E-004318 EL-317711) AND ABOVE
  • 10
    11-82388M NUT
    SERIAL (E-004317 EL-317710) AND BELOW
    NUT
    SERIAL (E-004317 EL-317710) AND BELOW
  • 11
    13-82186M LOCKWASHER
    LOCKWASHER
  • 12
    12-82211M WASHER
    WASHER
  • 13
    84-84711M EXTENSION (5M)
    EXTENSION (5M)
  • 14
    84960M EXTENSION (2M)
    EXTENSION (2M)
  • 15
    87-95631001 NEUTRAL SWITCH
    NEUTRAL SWITCH
  • 16
    81529M BRACKET
    BRACKET
  • 17
    84-95668M WIRE HARNESS
    WIRE HARNESS
  • 18
    84-98912M LEAD WIRE
    LEAD WIRE
  • 19
    84-97086M LEAD WIRE
    LEAD WIRE
  • 20
    84937M FUSE HOLDER ASSEMBLY
    FUSE HOLDER ASSEMBLY
  • 21
    88-81522M FUSE (12V-20A)
    FUSE (12V-20A)
  • 22
    54-92668M BRACKET
    BRACKET
  • 23
    10-82437M BOLT
    BOLT
  • 24
    12-82217M WASHER
    WASHER
  • 25
    81530M PLATE
    SERIAL (E-004424 EL-318399) AND ABOVE
    PLATE
    SERIAL (E-004424 EL-318399) AND ABOVE
