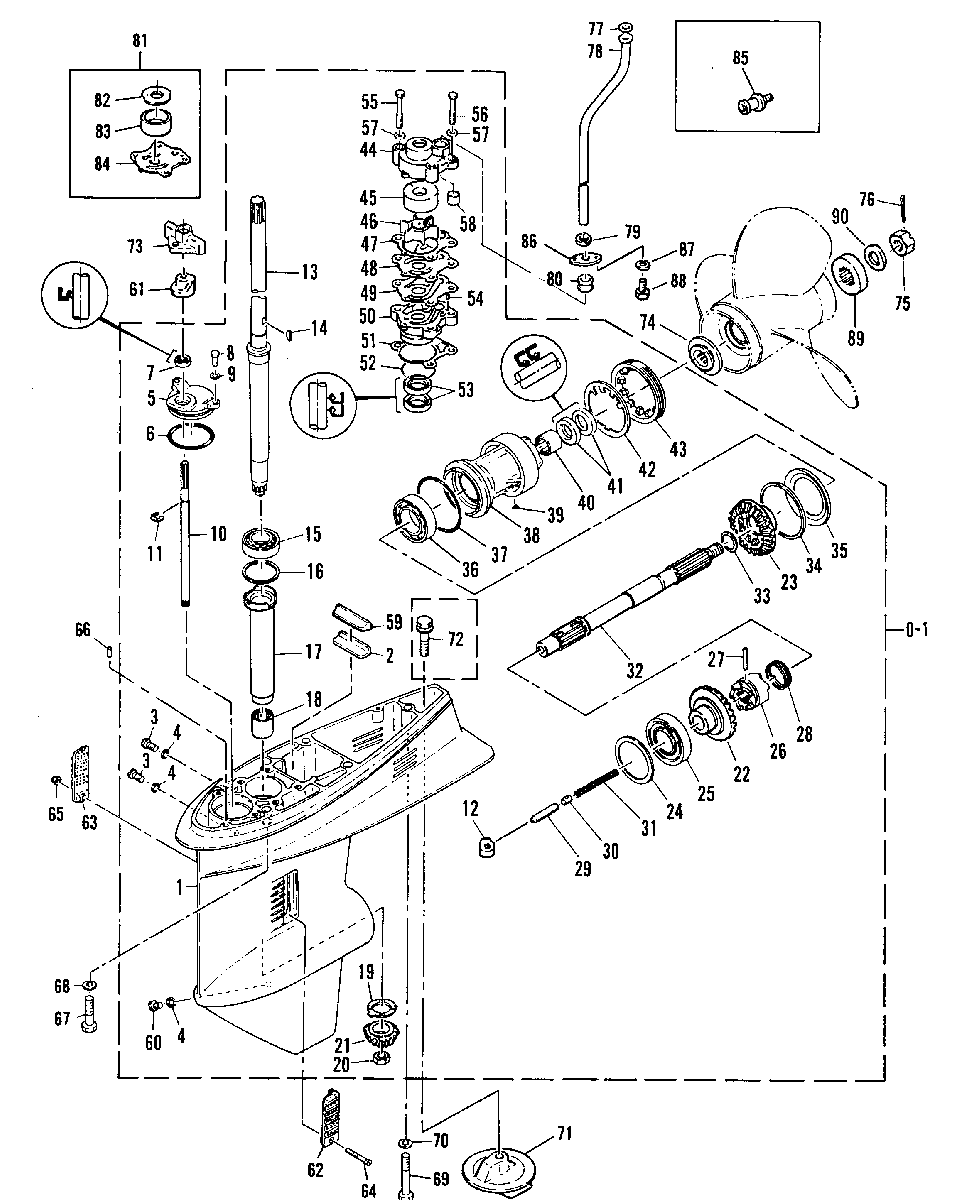

GEAR HOUSING ASSEMBLY для Mariner - 55 663-004041 AND UP

  • №
    Артикул
    Название
  • 0-1
    1651-9286M GEAR HOUSING ASSEMBLY (E)
    GEAR HOUSING ASSEMBLY (E)
  • 0-1
    1651-9287M GEAR HOUSING ASSEMBLY (EL)
    GEAR HOUSING ASSEMBLY (EL)
  • 1
    1651-7971M GEAR HOUSING (BASIC)
    GEAR HOUSING (BASIC)
  • 2
    81449M GUIDE, SEAL
    GUIDE, SEAL
  • 3
    22-81924M PLUG
    PLUG
  • 4
    27-81987 GASKET
    GASKET
  • 5
    81445M COVER, GEAR HOUSING
    COVER, GEAR HOUSING
  • 6
    25-82281M "O" RING, COVER TO GEAR HOUSING
    "O" RING, COVER TO GEAR HOUSING
  • 7
    26-82257M OIL SEAL, GEAR HOUSING COVER
    OIL SEAL, GEAR HOUSING COVER
  • 8
    10-826957M BOLT
    BOLT
  • 9
    12-82214M WASHER
    WASHER
  • 10
    81408M SHIFT ROD (LOWER)
    SHIFT ROD (LOWER)
  • 11
    53-82334M SNAP RING
    SNAP RING
  • 12
    81409M SHIFT CAM
    SHIFT CAM
  • 13
    45-81451M DRIVESHAFT (E)
    DRIVESHAFT (E)
  • 13
    45-81452M DRIVESHAFT (EL)
    DRIVESHAFT (EL)
  • 14
    28-97089M KEY
    KEY
  • 15
    31-82319T BEARING
    BEARING
  • 16
    15-81467M SHIM, DRIVESHAFT BEARING (0.05MM)
    SERIAL (E-004423 EL-318398) AND BELOW
    SHIM, DRIVESHAFT BEARING (0.05MM)
    SERIAL (E-004423 EL-318398) AND BELOW
  • 16
    15-81468M SHIM, DRIVESHAFT BEARING (0.08MM)
    SERIAL (E-004423 EL-318398) AND BELOW
    SHIM, DRIVESHAFT BEARING (0.08MM)
    SERIAL (E-004423 EL-318398) AND BELOW
  • 16
    15-19148M SHIM, DRIVESHAFT BEARING (0.10MM)
    SERIAL (E-004424 EL-318399) AND ABOVE
    SHIM, DRIVESHAFT BEARING (0.10MM)
    SERIAL (E-004424 EL-318399) AND ABOVE
  • 16
    15-19148002 SHIM, DRIVESHAFT BEARING (0.12MM)
    SHIM, DRIVESHAFT BEARING (0.12MM)
  • 16
    15-19149M SHIM, DRIVESHAFT BEARING (0.15MM)
    SERIAL (E-004424 EL-318399) AND ABOVE
    SHIM, DRIVESHAFT BEARING (0.15MM)
    SERIAL (E-004424 EL-318399) AND ABOVE
  • 16
    15-19150M SHIM, DRIVESHAFT BEARING (0.18MM)
    SERIAL (E-004424 EL-318399) AND ABOVE
    SHIM, DRIVESHAFT BEARING (0.18MM)
    SERIAL (E-004424 EL-318399) AND ABOVE
  • 16
    15-19148004 SHIM, DRIVESHAFT BEARING (0.30MM)
    SHIM, DRIVESHAFT BEARING (0.30MM)
  • 16
    15-19152M SHIM, DRIVESHAFT BEARING (0.40MM)
    SERIAL (E-004424 EL-318399) AND ABOVE
    SHIM, DRIVESHAFT BEARING (0.40MM)
    SERIAL (E-004424 EL-318399) AND ABOVE
  • 16
    15-19153M SHIM, DRIVESHAFT BEARING (0.50MM)
    SHIM, DRIVESHAFT BEARING (0.50MM)
  • 17
    23-81453M SLEEVE
    SLEEVE
  • 18
    31-82316T NEEDLE BEARING
    NEEDLE BEARING
  • 19
    12-81455M THRUST WASHER
    THRUST WASHER
  • 20
    11-81772M NUT
    NUT
  • 21
    43-84442T PINION GEAR
    PINION GEAR
  • 22
    43-84443T FORWARD GEAR
    FORWARD GEAR
  • 23
    1651-8444M REVERSE GEAR
    REVERSE GEAR
  • 0-1
    1651-9286M GEAR HOUSING ASSEMBLY (E)
    GEAR HOUSING ASSEMBLY (E)
  • 0-1
    1651-9287M GEAR HOUSING ASSEMBLY (EL)
    GEAR HOUSING ASSEMBLY (EL)
  • 24
    15-81456M SHIM, FORWARD GEAR ADJUST (0.05MM)
    SERIAL (E-004423 EL-318398) AND BELOW
    SHIM, FORWARD GEAR ADJUST (0.05MM)
    SERIAL (E-004423 EL-318398) AND BELOW
  • 24
    15-81457M SHIM, FORWARD GEAR ADJUST (0.08MM)
    SERIAL (E-004423 EL-318398) AND BELOW
    SHIM, FORWARD GEAR ADJUST (0.08MM)
    SERIAL (E-004423 EL-318398) AND BELOW
  • 24
    15-19154M SHIM, FORWARD GEAR ADJUST (0.10MM)
    SERIAL (E-004424 EL-318399) AND ABOVE
    SHIM, FORWARD GEAR ADJUST (0.10MM)
    SERIAL (E-004424 EL-318399) AND ABOVE
  • 24
    15-19148003 SHIM, FORWARD GEAR ADJUST (0.12MM)
    SERIAL (E-004423 EL-318398) AND BELOW
    SHIM, FORWARD GEAR ADJUST (0.12MM)
    SERIAL (E-004423 EL-318398) AND BELOW
  • 24
    15-19156M SHIM, FORWARD GEAR ADJUST (0.15MM)
    SERIAL (E-004424 EL-318399) AND ABOVE
    SHIM, FORWARD GEAR ADJUST (0.15MM)
    SERIAL (E-004424 EL-318399) AND ABOVE
  • 24
    15-19157M SHIM, FORWARD GEAR ADJUST (0.18MM)
    SERIAL (E-004424 EL-318399) AND ABOVE
    SHIM, FORWARD GEAR ADJUST (0.18MM)
    SERIAL (E-004424 EL-318399) AND ABOVE
  • 24
    15-19158M SHIM, FORWARD GEAR ADJUST (0.30MM)
    SERIAL (E-004423 EL-318398) AND BELOW
    SHIM, FORWARD GEAR ADJUST (0.30MM)
    SERIAL (E-004423 EL-318398) AND BELOW
  • 24
    15-19159M SHIM, FORWARD GEAR ADJUST (0.40MM)
    SERIAL (E-004424 EL-318399) AND ABOVE
    SHIM, FORWARD GEAR ADJUST (0.40MM)
    SERIAL (E-004424 EL-318399) AND ABOVE
  • 24
    15-81460M SHIM, FORWARD GEAR ADJUST (0.50MM)
    SHIM, FORWARD GEAR ADJUST (0.50MM)
  • 25
    31-82320T BEARING
    BEARING
  • 26
    52-81473T CLUTCH
    CLUTCH
  • 27
    17-81903M CROSS PIN
    CROSS PIN
  • 28
    81474M RING
    RING
  • 29
    92643M PLUNGER
    PLUNGER
  • 30
    81475M SLIDE
    SLIDE
  • 31
    24-82091M SPRING
    SPRING
  • 32
    44-92644M PROPELLER SHAFT
    PROPELLER SHAFT
  • 33
    12-81837M THRUST WASHER
    THRUST WASHER
  • 34
    15-81462M SHIM, REVERSE GEAR ADJUST (0.05MM)
    SERIAL (E-004423 EL-3189398) AND BELOW
    SHIM, REVERSE GEAR ADJUST (0.05MM)
    SERIAL (E-004423 EL-3189398) AND BELOW
  • 34
    15-81463M SHIM, REVERSE GEAR ADJUST (0.08MM)
    SERIAL (E-004423 EL-318398) AND BELOW
    SHIM, REVERSE GEAR ADJUST (0.08MM)
    SERIAL (E-004423 EL-318398) AND BELOW
  • 34
    15-19160M SHIM, REVERSE GEAR ADJUST (0.10MM)
    SERIAL (E-004424 EL-318399) AND ABOVE
    SHIM, REVERSE GEAR ADJUST (0.10MM)
    SERIAL (E-004424 EL-318399) AND ABOVE
  • 34
    15-19163002 SHIM, REVERSE GEAR ADJUST (0.12MM)
    SHIM, REVERSE GEAR ADJUST (0.12MM)
  • 34
    15-19161M SHIM, REVERSE GEAR ADJUST (0.15MM)
    SERIAL (E-004424 EL-318399) AND ABOVE
    SHIM, REVERSE GEAR ADJUST (0.15MM)
    SERIAL (E-004424 EL-318399) AND ABOVE
  • 34
    15-19162M SHIM, REVERSE GEAR ADJUST (0.18MM)
    SERIAL (E-004424 EL-318399) AND ABOVE
    SHIM, REVERSE GEAR ADJUST (0.18MM)
    SERIAL (E-004424 EL-318399) AND ABOVE
  • 34
    15-19163001 SHIM, REVERSE GEAR ADJUST (0.30MM)
    SERIAL (E-004424 EL-318399) AND ABOVE
    SHIM, REVERSE GEAR ADJUST (0.30MM)
    SERIAL (E-004424 EL-318399) AND ABOVE
  • 34
    15-19164M SHIM, REVERSE GEAR ADJUST (0.40MM)
    SERIAL (E-004424 EL-318399) AND ABOVE
    SHIM, REVERSE GEAR ADJUST (0.40MM)
    SERIAL (E-004424 EL-318399) AND ABOVE
  • 34
    15-19165M SHIM, REVERSE GEAR ADJUST (0.50MM)
    SHIM, REVERSE GEAR ADJUST (0.50MM)
  • 0-1
    1651-9286M GEAR HOUSING ASSEMBLY (E)
    GEAR HOUSING ASSEMBLY (E)
  • 0-1
    1651-9287M GEAR HOUSING ASSEMBLY (EL)
    GEAR HOUSING ASSEMBLY (EL)
  • 35
    12-81461M THRUST WASHER, REVERSE GEAR
    THRUST WASHER, REVERSE GEAR
  • 36
    30-82296T BEARING, REVERSE GEAR
    BEARING, REVERSE GEAR
  • 37
    25-82289M "O" RING
    "O" RING
  • 38
    81446M HOUSING, BEARING
    HOUSING, BEARING
  • 39
    28-81916M KEY
    KEY
  • 40
    31-82317M NEEDLE BEARING (PROP SHAFT)
    NEEDLE BEARING (PROP SHAFT)
  • 41
    26-854017 OIL SEAL, PROPELLER SHAFT
    OIL SEAL, PROPELLER SHAFT
  • 42
    14-81877M CLAW, WASHER
    CLAW, WASHER
  • 43
    11-8M0059031 NUT
    NUT
  • 44
    46-81416M WATER PUMP BODY
    WATER PUMP BODY
  • 45
    81419M INSERT, CARTRIDGE
    INSERT, CARTRIDGE
  • 46
    47-97108M IMPELLER, WATER PUMP
    IMPELLER, WATER PUMP
  • 47
    27-81417 GASKET, WATER PUMP
    GASKET, WATER PUMP
  • 48
    81420M OUTER PLATE, CARTRIDGE
    OUTER PLATE, CARTRIDGE
  • 49
    27-81421M GASKET, CARTRIDGE OUTER PLATE
    GASKET, CARTRIDGE OUTER PLATE
  • 50
    46-81422M WATER PUMP BASE
    WATER PUMP BASE
  • 51
    27-81418M GASKET, WATER PUMP BASE
    GASKET, WATER PUMP BASE
  • 52
    25-82275M "O" RING, WATER PUMP BASE
    "O" RING, WATER PUMP BASE
  • 53
    26-82234M OIL SEAL, WATER PUMP
    OIL SEAL, WATER PUMP
  • 54
    17-82354M DOWEL PIN
    DOWEL PIN
  • 55
    10-84057M BOLT
    BOLT
  • 56
    10-85277614 BOLT
    BOLT
  • 57
    12-82217M WASHER
    WASHER
  • 58
    26-81426M SEAL, WATER TUBE (UPPER)
    SEAL, WATER TUBE (UPPER)
  • 59
    81448M SEAL (RUBBER)
    SEAL (RUBBER)
  • 60
    22-95632010 DRAIN PLUG
    DRAIN PLUG
  • 61
    81410M CAM
    CAM
  • 62
    19166M COVER, WATER INLET (PORT)
    SERIAL (E-004424 EL-318399) AND ABOVE
    COVER, WATER INLET (PORT)
    SERIAL (E-004424 EL-318399) AND ABOVE
  • 63
    19167M COVER, WATER INLET (STARBOARD)
    SERIAL (E-E-004424 EL-318399) AND ABOVE
    COVER, WATER INLET (STARBOARD)
    SERIAL (E-E-004424 EL-318399) AND ABOVE
  • 64
    10-82484M SCREW
    SCREW
  • 65
    11-8528165 NUT
    NUT
  • 66
    17-82364M DOWEL PIN
    DOWEL PIN
  • 67
    10-91636M BOLT
    BOLT
  • 68
    13-82218M LOCKWASHER
    LOCKWASHER
  • 69
    10-43103M BOLT
    BOLT
  • 70
    13-82215M LOCKWASHER
    LOCKWASHER
  • 71
    83859T TRIM TAB
    TRIM TAB
  • 0-1
    1651-9286M GEAR HOUSING ASSEMBLY (E)
    GEAR HOUSING ASSEMBLY (E)
  • 0-1
    1651-9287M GEAR HOUSING ASSEMBLY (EL)
    GEAR HOUSING ASSEMBLY (EL)
  • 72
    10-82801M BOLT
    BOLT
  • 73
    98937M GUIDE, REVERSE ROD
    GUIDE, REVERSE ROD
  • 74
    12-81477M THRUST WASHER
    SERIAL (E-004246 EL-317280 AND ABOVE)
    THRUST WASHER
    SERIAL (E-004246 EL-317280 AND ABOVE)
  • 74
    73345A1 THRUST WASHER
    SERIAL (E-004245 EL-317279 AND BELOW)
    THRUST WASHER
    SERIAL (E-004245 EL-317279 AND BELOW)
  • 75
    859935 PROPELLER NUT
    PROPELLER NUT
  • 76
    18-95295 COTTER PIN
    COTTER PIN
  • 77
    12-81852M WASHER
    WASHER
  • 78
    32-81424M WATER TUBE (E)
    WATER TUBE (E)
  • 78
    32-81425M WATER TUBE (EL)
    WATER TUBE (EL)
  • 79
    25-81989M GASKET
    GASKET
  • 80
    26-81427M SEAL (LOWER)
    SEAL (LOWER)
  • 81
    84187T CHROME W/PUMP KIT (OPT)
    SERIAL (E-004424 EL-318399) AND ABOVE
    CHROME W/PUMP KIT (OPT)
    SERIAL (E-004424 EL-318399) AND ABOVE
  • 81
    84187T CHROME W/PUMP KIT (OPT)
    SERIAL (E-004423 EL-318398) AND BELOW
    CHROME W/PUMP KIT (OPT)
    SERIAL (E-004423 EL-318398) AND BELOW
  • 82
    83131M INNER PLATE
    INNER PLATE
  • 83
    81672M INSERT
    INSERT
  • 84
    81673M FACE PLATE
    FACE PLATE
  • 85
    22-8M0121335 FLUSH PLUG (OPT.)
    FLUSH PLUG (OPT.)
  • 86
    81428M PLATE
    PLATE
  • 87
    13-82212M LOCKWASHER
    LOCKWASHER
  • 88
    10-91772M BOLT
    BOLT
  • 89
    23-84445T SPACER
    SERIAL (E-004246EL-317280) AND ABOVE
    SPACER
    SERIAL (E-004246EL-317280) AND ABOVE
  • 90
    12-83700M WASHER
    SERIAL (E-004246 EL-317280) AND ABOVE
    WASHER
    SERIAL (E-004246 EL-317280) AND ABOVE
  • 62
    19166M COVER, WATER INLET (PORT)
    SERIAL (E-004423 EL-318398) AND BELOW
    COVER, WATER INLET (PORT)
    SERIAL (E-004423 EL-318398) AND BELOW
  • 63
    19167M COVER, WATER INLET (STARBOARD)
    SERIAL (E-004423 EL-318398) AND BELOW
    COVER, WATER INLET (STARBOARD)
    SERIAL (E-004423 EL-318398) AND BELOW
  • -
    27-92648M GASKET SET, LOWER UNIT
    CONTENTS INDICATED BY FOOTNOTE 13.
    GASKET SET, LOWER UNIT
    CONTENTS INDICATED BY FOOTNOTE 13.
  • -
    84188T REPAIR KIT, WATER PUMP
    CONTENTS INDICATED BY FOOTNOTE 14.
    REPAIR KIT, WATER PUMP
    CONTENTS INDICATED BY FOOTNOTE 14.
  • -
    84187T REPAIR KIT, CHROME WATER PUMP (OPT)
    SERIAL (E-004424 EL-318399) AND ABOVE. CONTENTS INDICATED BY FOOTNOTE 15.
    REPAIR KIT, CHROME WATER PUMP (OPT)
    SERIAL (E-004424 EL-318399) AND ABOVE. CONTENTS INDICATED BY FOOTNOTE 15.
  • -
    84187T REPAIR KIT, CHROME WATER PUMP (OPT)
    SERIAL (E-004423 EL-318398) AND BELOW. CONTENTS INDICATED BY FOOTNOTE 15.
    REPAIR KIT, CHROME WATER PUMP (OPT)
    SERIAL (E-004423 EL-318398) AND BELOW. CONTENTS INDICATED BY FOOTNOTE 15.
