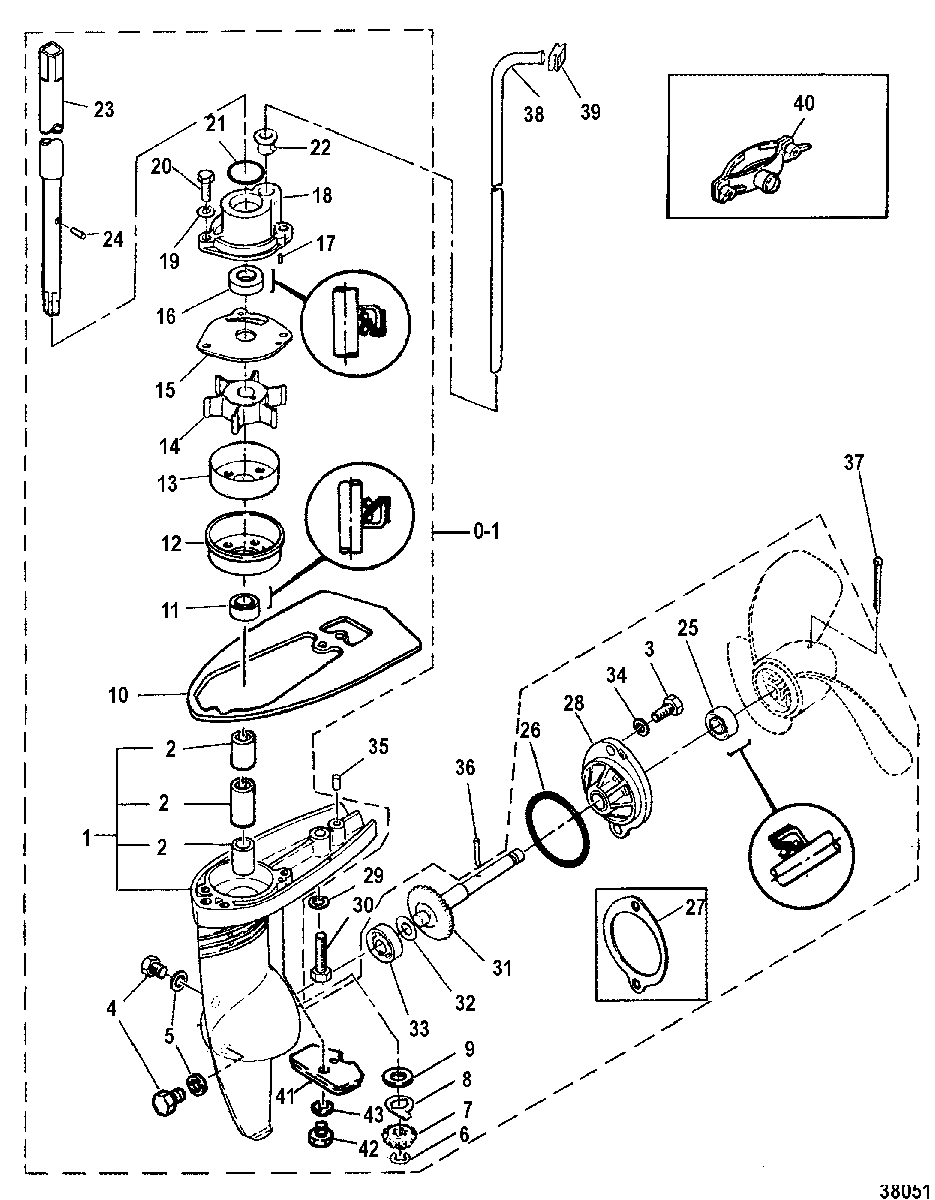

GEARHOUSING ASSEMBLY для Mariner - 2B 6A1-000101 & Up

  • №
    Артикул
    Название
  • 0-1
    1651-810946M GEAR HOUSING ASSEMBLY
    SN# M-142377 & Up
    GEAR HOUSING ASSEMBLY
    SN# M-142377 & Up
  • 0-1
    1651-810946M GEAR HOUSING ASSEMBLY
    SN# M-131232 THRU M-142376
    GEAR HOUSING ASSEMBLY
    SN# M-131232 THRU M-142376
  • 0-1
    1651-810946M GEAR HOUSING ASSEMBLY
    SN# M-131231 & Below
    GEAR HOUSING ASSEMBLY
    SN# M-131231 & Below
  • 1
    1651-810955M GEAR HOUSING ASSEMBLY
    SN# M-142377 & Up
    GEAR HOUSING ASSEMBLY
    SN# M-142377 & Up
  • 1
    1651-810955M GEAR HOUSING ASSEMBLY
    SN# M-093605 THRU M-142376
    GEAR HOUSING ASSEMBLY
    SN# M-093605 THRU M-142376
  • 1
    1651-7861M GEAR HOUSING ASSEMBLY
    SN# M-093604 & Below
    GEAR HOUSING ASSEMBLY
    SN# M-093604 & Below
  • 2
    23-95465M BUSHING, DRIVESHAFT
    SN# M-093604 & Below
    BUSHING, DRIVESHAFT
    SN# M-093604 & Below
  • 3
    10-84368M BOLT
    BOLT
  • 4
    22-81924M PLUG, OIL DRAIN
    PLUG, OIL DRAIN
  • 5
    27-81987 GASKET, OIL DRAIN PLUG
    GASKET, OIL DRAIN PLUG
  • 6
    53-82331M RING, Snap
    RING, Snap
  • 7
    43-80405M GEAR, Pinion
    GEAR, Pinion
  • 8
    12-96311M THRUST WASHER, DRIVESHAFT
    SN# M-093605 & Up
    THRUST WASHER, DRIVESHAFT
    SN# M-093605 & Up
  • 8
    12-81875M THRUST WASHER, DRIVESHAFT
    SN# M-093604 & Below
    THRUST WASHER, DRIVESHAFT
    SN# M-093604 & Below
  • 9
    12-80404M WASHER, DRIVESHAFT (0.3 MM)
    WASHER, DRIVESHAFT (0.3 MM)
  • 9
    15-82802M SHIM, DRIVESHAFT (0.5 MM)
    SHIM, DRIVESHAFT (0.5 MM)
  • 10
    92528M PLATE
    PLATE
  • 11
    26-82251M SEAL, Oil
    SEAL, Oil
  • 12
    26-92529M SEAL, Oil, PROTECTOR
    SEAL, Oil, PROTECTOR
  • 13
    80393M INSERT, CARTRIDGE
    INSERT, CARTRIDGE
  • 14
    47-80395M IMPELLER
    IMPELLER
  • 15
    80394M OUTER PLATE, CARTRIDGE
    OUTER PLATE, CARTRIDGE
  • 16
    26-813497T SEAL, Oil
    SN# M-131232 & Up
    SEAL, Oil
    SN# M-131232 & Up
  • 16
    26-82251M SEAL, Oil
    SN# M-008801 THRU M-131231
    SEAL, Oil
    SN# M-008801 THRU M-131231
  • 16
    26-813497T SEAL, Oil
    SN# M-008800 & Below
    SEAL, Oil
    SN# M-008800 & Below
  • 17
    17-82356M PIN, Dowel
    PIN, Dowel
  • 18
    46-813498M COVER, WATER PUMP HOUSING
    SN# M-131232 & Up
    COVER, WATER PUMP HOUSING
    SN# M-131232 & Up
  • 18
    46-96337M COVER, WATER PUMP HOUSING
    SN# M-131231 & Below
    COVER, WATER PUMP HOUSING
    SN# M-131231 & Below
  • 19
    12-82211M WASHER, LOCK
    WASHER, LOCK
  • 20
    10-92521M BOLT
    BOLT
  • 21
    25-82269M O-RING
    O-RING
  • 22
    26-80398M RUBBER, WATER SEAL
    RUBBER, WATER SEAL
  • 23
    45-92522M DRIVESHAFT
    DRIVESHAFT
  • 24
    17-82355M PIN, Dowel
    PIN, Dowel
  • 25
    26-82250M SEAL, Oil, PROPELLER SHAFT
    SEAL, Oil, PROPELLER SHAFT
  • 26
    25-14175M O-RING, GEAR HOUSING CAP
    SN# M-093605 & Up
    O-RING, GEAR HOUSING CAP
    SN# M-093605 & Up
  • 27
    27-80402 GASKET, GEAR HOUSING CAP
    SN# M-093604 & Below
    GASKET, GEAR HOUSING CAP
    SN# M-093604 & Below
  • 28
    813499M CAP, Gear Housing
    SN# M-093605 & Up
    CAP, Gear Housing
    SN# M-093605 & Up
  • 28
    80401M COVER
    SN# M-093604 & Below
    COVER
    SN# M-093604 & Below
  • 29
    12-82214M WASHER
    WASHER
  • 30
    10-83285M BOLT
    BOLT
  • 31
    43-80406M GEAR ASSEMBLY
    GEAR ASSEMBLY
  • 32
    15-80407M SHIM, GEAR ADJUST (0.3 MM)
    SHIM, GEAR ADJUST (0.3 MM)
  • 32
    15-80408M SHIM, GEAR ADJUST (0.5 MM)
    SHIM, GEAR ADJUST (0.5 MM)
  • 32
    15-14174M SHIM, GEAR ADJUST (0.4 MM)
    SN# M-093605 & Up
    SHIM, GEAR ADJUST (0.4 MM)
    SN# M-093605 & Up
  • 33
    30-82290M BEARING, PROPELLER SHAFT
    BEARING, PROPELLER SHAFT
  • 34
    12-82214M WASHER
    WASHER
  • 35
    17-82360M PIN, Dowel
    SN# M-104886 & Up
    PIN, Dowel
    SN# M-104886 & Up
  • 35
    17-92524M PIN, DOWEL
    SN# M-104885 & Below
    PIN, DOWEL
    SN# M-104885 & Below
  • 36
    17-81896M PIN, Drive
    PIN, Drive
  • 37
    18-82134M COTTER PIN
    COTTER PIN
  • 38
    32-80396M TUBE, Water
    TUBE, Water
  • 39
    26-80397M RUBBER, WATER SEAL
    RUBBER, WATER SEAL
  • 40
    84358M FLUSHING ATTACHMENT
    FLUSHING ATTACHMENT
  • 41
    810945M ANODE
    SN# M-142377 & Up
    ANODE
    SN# M-142377 & Up
  • 42
    10-91772M BOLT
    SN# M-142377 & Up
    BOLT
    SN# M-142377 & Up
  • 43
    12-82214M WASHER
    SN# M-142377 & Up
    WASHER
    SN# M-142377 & Up
  • -
    27-813500M GASKET SET, Lower Unit
    SN# M-131232 & Up
    GASKET SET, Lower Unit
    SN# M-131232 & Up
  • -
    27-18858M GASKET SET, Lower Unit
    SN# M-115872 THRU M-131231
    GASKET SET, Lower Unit
    SN# M-115872 THRU M-131231
  • -
    27-96338M GASKET SET, Lower Unit
    SN# M-008801 THRU M-115871
    GASKET SET, Lower Unit
    SN# M-008801 THRU M-115871
  • -
    27-92525M GASKET SET, Lower Unit
    SN# M-008800 & Below
    GASKET SET, Lower Unit
    SN# M-008800 & Below
  • -
    814453M REPAIR KIT, Water Pump
    SN# M-131232 & Up
    REPAIR KIT, Water Pump
    SN# M-131232 & Up
  • -
    96339M REPAIR KIT, Water Pump
    SN# M-008801 THRU M-093604
    REPAIR KIT, Water Pump
    SN# M-008801 THRU M-093604
