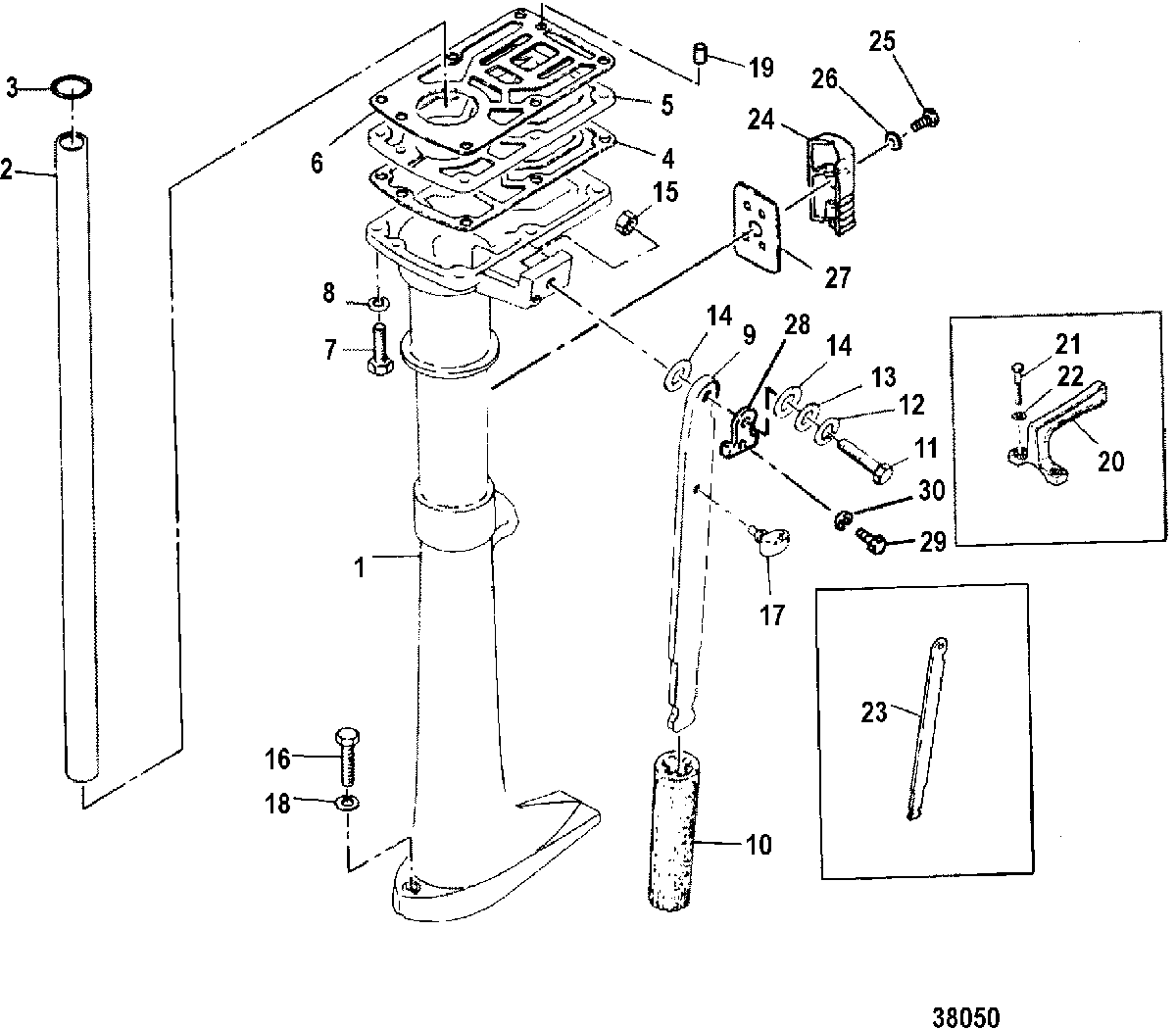

DRIVESHAFT HOUSING AND STEERING HANDLE для Mariner - 2B 6A1-000101 & Up

  • №
    Артикул
    Название
  • 1
    1587-814462M HOUSING, Driveshaft
    SN# M-131232 & Up
    HOUSING, Driveshaft
    SN# M-131232 & Up
  • 1
    1587-8798M HOUSING, Driveshaft
    SN# M-044561 THRU M-131231
    HOUSING, Driveshaft
    SN# M-044561 THRU M-131231
  • 1
    1587-7862M HOUSING, Driveshaft
    SN# M-044560 & Below
    HOUSING, Driveshaft
    SN# M-044560 & Below
  • 2
    32-813491M CASING, DRIVESHAFT
    SN# M-131232 & Up
    CASING, DRIVESHAFT
    SN# M-131232 & Up
  • 2
    32-80399M TUBE, DRIVESHAFT
    SN# M-131231 & Below
    TUBE, DRIVESHAFT
    SN# M-131231 & Below
  • 3
    25-82269M O-RING
    O-RING
  • 4
    27-80355 GASKET, EXHAUST GUIDE-LOWER
    GASKET, EXHAUST GUIDE-LOWER
  • 5
    813492M GUIDE, EXHAUST
    GUIDE, EXHAUST
  • 6
    27-92532 GASKET, EXHAUST GUIDE-UPPER
    GASKET, EXHAUST GUIDE-UPPER
  • 7
    10-82405M BOLT
    BOLT
  • 8
    12-82214M WASHER
    WASHER
  • 9
    813493M ARM, STEERING
    SN# M-131232 & Up
    ARM, STEERING
    SN# M-131232 & Up
  • 9
    80379M ARM, Steering
    SN# M-131231 & Below
    ARM, Steering
    SN# M-131231 & Below
  • 10
    80380M GRIP, STEERING
    GRIP, STEERING
  • 11
    10-813494M BOLT
    SN# M-131232 & Up
    BOLT
    SN# M-131232 & Up
  • 11
    10-813494M BOLT
    SN# M-131231 & Below
    BOLT
    SN# M-131231 & Below
  • 12
    13-82215M LOCKWASHER
    LOCKWASHER
  • 13
    12-82216M WASHER
    WASHER
  • 14
    12-81802M WASHER
    WASHER
  • 15
    11-82382M NUT
    NUT
  • 16
    10-83285M BOLT
    BOLT
  • 17
    80383M HOLDER, DRIVE PIN
    HOLDER, DRIVE PIN
  • 18
    12-82214M WASHER
    WASHER
  • 19
    17-82360M PIN, Dowel
    PIN, Dowel
  • 20
    84398M BRACKET, CARRYING
    BRACKET, CARRYING
  • 21
    10-8527765 BOLT
    BOLT
  • 22
    13-82212M LOCKWASHER
    LOCKWASHER
  • 23
    84399M HANDLE, Steering
    SN# M-131231 & Below
    HANDLE, Steering
    SN# M-131231 & Below
  • 24
    41248M COVER
    SN# M-044561 & Up
    COVER
    SN# M-044561 & Up
  • 25
    10-83870M SCREW
    SN# M-044561 & Up
    SCREW
    SN# M-044561 & Up
  • 26
    12-82214M WASHER
    SN# M-044561 & Up
    WASHER
    SN# M-044561 & Up
  • 27
    27-41875M GASKET
    SN# M-044561 & Up
    GASKET
    SN# M-044561 & Up
  • 28
    12-813495M WASHER
    SN# M-131232 & Up
    WASHER
    SN# M-131232 & Up
  • 29
    10-84088M SCREW, (M6 x 10)
    SN# M-131232 & Up
    SCREW, (M6 x 10)
    SN# M-131232 & Up
  • 30
    13-82212M LOCKWASHER
    SN# M-131232 & Up
    LOCKWASHER
    SN# M-131232 & Up
