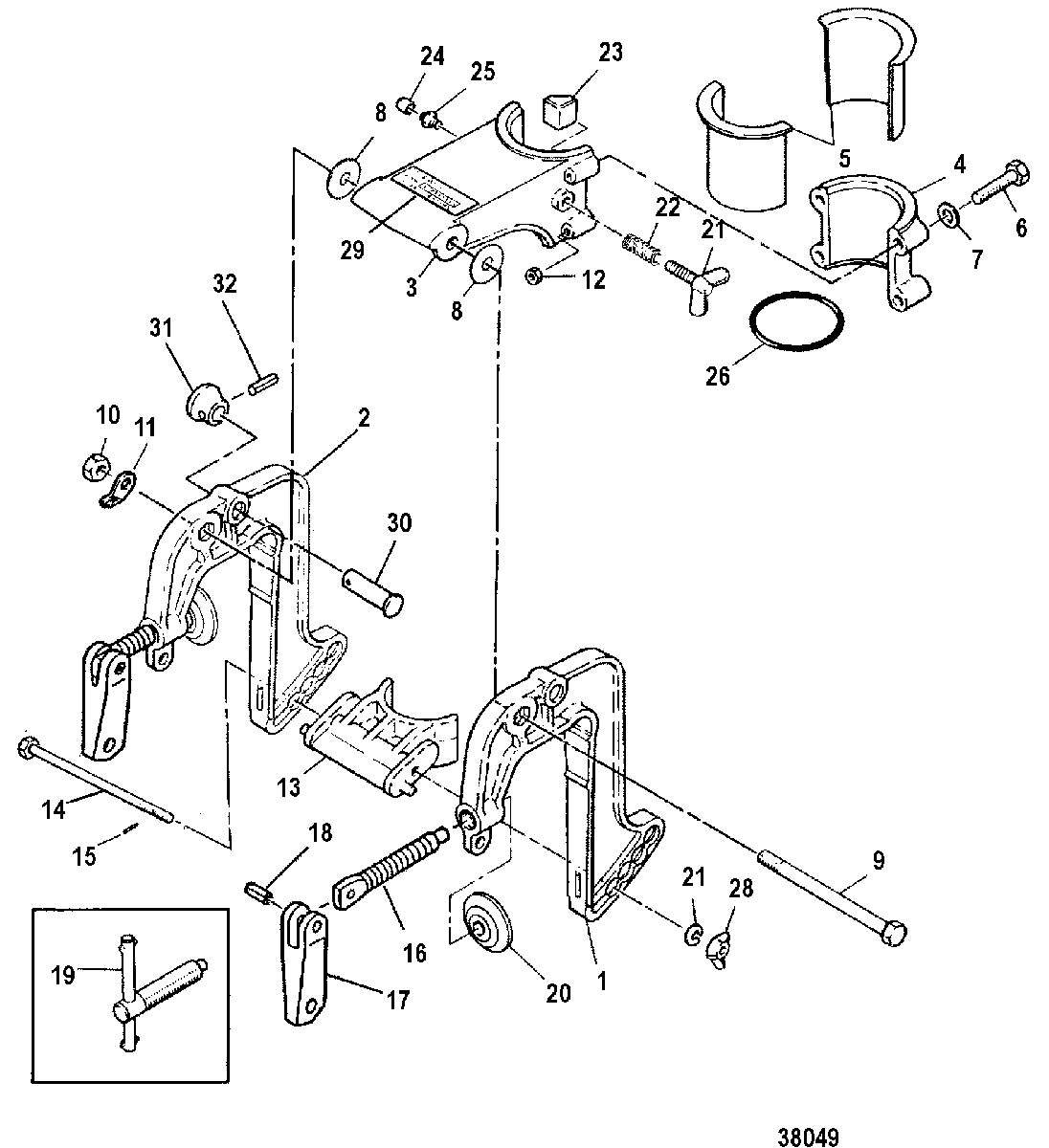

CLAMP AND SWIVEL BRACKET для Mariner - 2B 6A1-000101 & Up

  • №
    Артикул
    Название
  • 1
    1484-813486M CLAMP BRACKET (PORT)
    SN# M-131232 & Up
    CLAMP BRACKET (PORT)
    SN# M-131232 & Up
  • 1
    1484-813486M CLAMP BRACKET (PORT/STARBOARD)
    SN# M-115872 THRU M-131231
    CLAMP BRACKET (PORT/STARBOARD)
    SN# M-115872 THRU M-131231
  • 1
    1484-813486M CLAMP BRACKET (PORT/STARBOARD)
    SN# M-076692 THRU M-115871
    CLAMP BRACKET (PORT/STARBOARD)
    SN# M-076692 THRU M-115871
  • 1
    1484-7863M CLAMP BRACKET (PORT/STARBOARD)
    SN# M-076691 & Below
    CLAMP BRACKET (PORT/STARBOARD)
    SN# M-076691 & Below
  • 2
    1484-813487M CLAMP BRACKET (STARBOARD)
    SN# M-131232 & Up
    CLAMP BRACKET (STARBOARD)
    SN# M-131232 & Up
  • 3
    1485-813488M SWIVEL BRACKET, FRONT
    SN# M-131232 & Up
    SWIVEL BRACKET, FRONT
    SN# M-131232 & Up
  • 3
    1485-813488M SWIVEL BRACKET, FRONT
    SN# M-131231 & Below
    SWIVEL BRACKET, FRONT
    SN# M-131231 & Below
  • 4
    92535M SWIVEL BRACKET, REAR
    SWIVEL BRACKET, REAR
  • 5
    23-80382M BUSHING, PILOT SHAFT
    BUSHING, PILOT SHAFT
  • 6
    10-84657M BOLT
    BOLT
  • 7
    12-82214M WASHER
    WASHER
  • 8
    12-81845M WASHER
    WASHER
  • 9
    10-81705M BOLT
    BOLT
  • 10
    11-82382M NUT
    NUT
  • 11
    18840M PLATE, CLAMP BRACKET
    SN# M-115872 & Up
    PLATE, CLAMP BRACKET
    SN# M-115872 & Up
  • 11
    13-82215M LOCKWASHER
    SN# M-115871 & Below
    LOCKWASHER
    SN# M-115871 & Below
  • 12
    11-82389M NUT
    NUT
  • 13
    92537M RECIEVER, THRUST
    RECIEVER, THRUST
  • 14
    10-92538M BOLT, RECEIVER
    BOLT, RECEIVER
  • 15
    17-82140M PIN, Roll
    PIN, Roll
  • 16
    10-91783M SCREW, TRANSOM CLAMP
    SN# M-076692 & Up
    SCREW, TRANSOM CLAMP
    SN# M-076692 & Up
  • 17
    91748M HANDLE, TRANSOM CLAMP
    SN# M-076692 & Up
    HANDLE, TRANSOM CLAMP
    SN# M-076692 & Up
  • 18
    17-852812 PIN
    SN# M-076692 & Up
    PIN
    SN# M-076692 & Up
  • 19
    92539M CLAMP SCREW
    SN# M-076691 & Below
    CLAMP SCREW
    SN# M-076691 & Below
  • 20
    12-80638M PAD, TRANSOM CLAMP SCERW
    PAD, TRANSOM CLAMP SCERW
  • 21
    10-81745M WING BOLT
    WING BOLT
  • 22
    24-82083M SPRING, CO-PILOT ADJUSTING SCREW
    SPRING, CO-PILOT ADJUSTING SCREW
  • 23
    80381M FRICTION PIECE
    FRICTION PIECE
  • 24
    81439M CAP, GREASE FITTING
    SN# M-142376 & Below
    CAP, GREASE FITTING
    SN# M-142376 & Below
  • 25
    22-82369M FITTING, GREASE
    FITTING, GREASE
  • 26
    25-82279M O-RING
    O-RING
  • 27
    12-81791M WASHER
    WASHER
  • 28
    11-81776M WING NUT
    WING NUT
  • 29
    37-95570M DECAL
    SN# M-104886 THRU M-115871
    DECAL
    SN# M-104886 THRU M-115871
  • 30
    813489M SHAFT, STOPPER
    SN# M-131232 & Up
    SHAFT, STOPPER
    SN# M-131232 & Up
  • 31
    813490M KNOB, STOPPER
    SN# M-131232 & Up
    KNOB, STOPPER
    SN# M-131232 & Up
  • 32
    17-82147M PIN, ROLL
    SN# M-131232 & Up
    PIN, ROLL
    SN# M-131232 & Up
