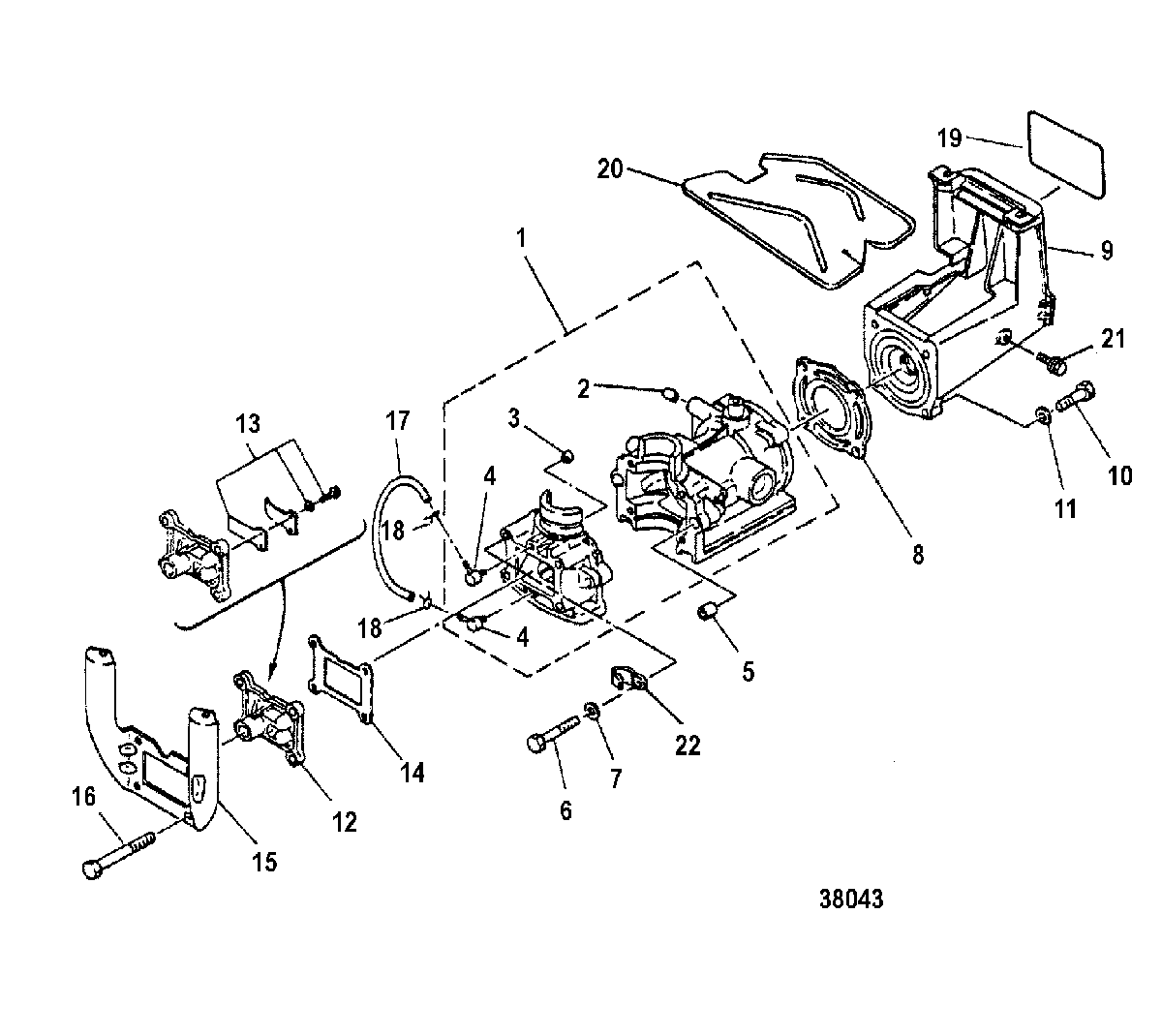

CRANKCASE AND CYLINDER HEAD для Mariner - 2B 6A1-000101 & Up

  • №
    Артикул
    Название
  • 1
    870-7856M CRANKCASE ASSEMBLY
    CRANKCASE ASSEMBLY
  • 2
    22-81923M PLUG
    PLUG
  • 3
    21-80107M VALVE, CHECK
    VALVE, CHECK
  • 4
    22-80743M FITTING, Drain
    FITTING, Drain
  • 5
    17-14214M PIN, Dowel
    PIN, Dowel
  • 6
    10-827043M BOLT
    BOLT
  • 7
    12-82214M WASHER
    WASHER
  • 8
    27-80313M GASKET, CYLINDER HEAD
    GASKET, CYLINDER HEAD
  • 9
    968-9208M CYLINDER HEAD
    CYLINDER HEAD
  • 10
    10-82405M BOLT
    BOLT
  • 11
    12-82214M WASHER, CYLINDER HEAD BOLT
    WASHER, CYLINDER HEAD BOLT
  • 12
    34-84983M REED VALVE ASSEMBLY
    REED VALVE ASSEMBLY
  • 13
    34-84984M REED SET (REED STOP NOT INCLUDED)
    REED SET (REED STOP NOT INCLUDED)
  • 14
    27-84985M GASKET, REED VALVE SEAT
    GASKET, REED VALVE SEAT
  • 15
    84986M BRACKET, THROTTLE LINKAGE
    BRACKET, THROTTLE LINKAGE
  • 16
    10-84987M BOLT
    BOLT
  • 17
    32-811045M HOSE, DRAIN
    HOSE, DRAIN
  • 18
    54-82046M CLAMP, HOSE
    CLAMP, HOSE
  • 19
    N.S.S. Not Sold Separate, DECAL-REAR (PART OF 37-810931A90)
    SN# M-142377 & Up
    Not Sold Separate, DECAL-REAR (PART OF 37-810931A90)
    SN# M-142377 & Up
  • 19
    37-11908M DECAL, REAR
    SN# M-142376 & Below
    DECAL, REAR
    SN# M-142376 & Below
  • 20
    95455M PROTECTOR, FUEL TANK
    SN# M-061112 & Up
    PROTECTOR, FUEL TANK
    SN# M-061112 & Up
  • 21
    10-95456M BOLT
    SN# M-061112 & Up
    BOLT
    SN# M-061112 & Up
  • 22
    54-83577M CLAMP
    SN# M-061112 & Up
    CLAMP
    SN# M-061112 & Up
  • -
    95457M POWERHEAD ASSEMBLY
    POWERHEAD ASSEMBLY
  • -
    27-813475M GASKET SET, Powerhead
    SN# M-131232 & Up
    GASKET SET, Powerhead
    SN# M-131232 & Up
  • -
    27-84988M GASKET SET, Powerhead
    SN# M-131231 & Below
    GASKET SET, Powerhead
    SN# M-131231 & Below
