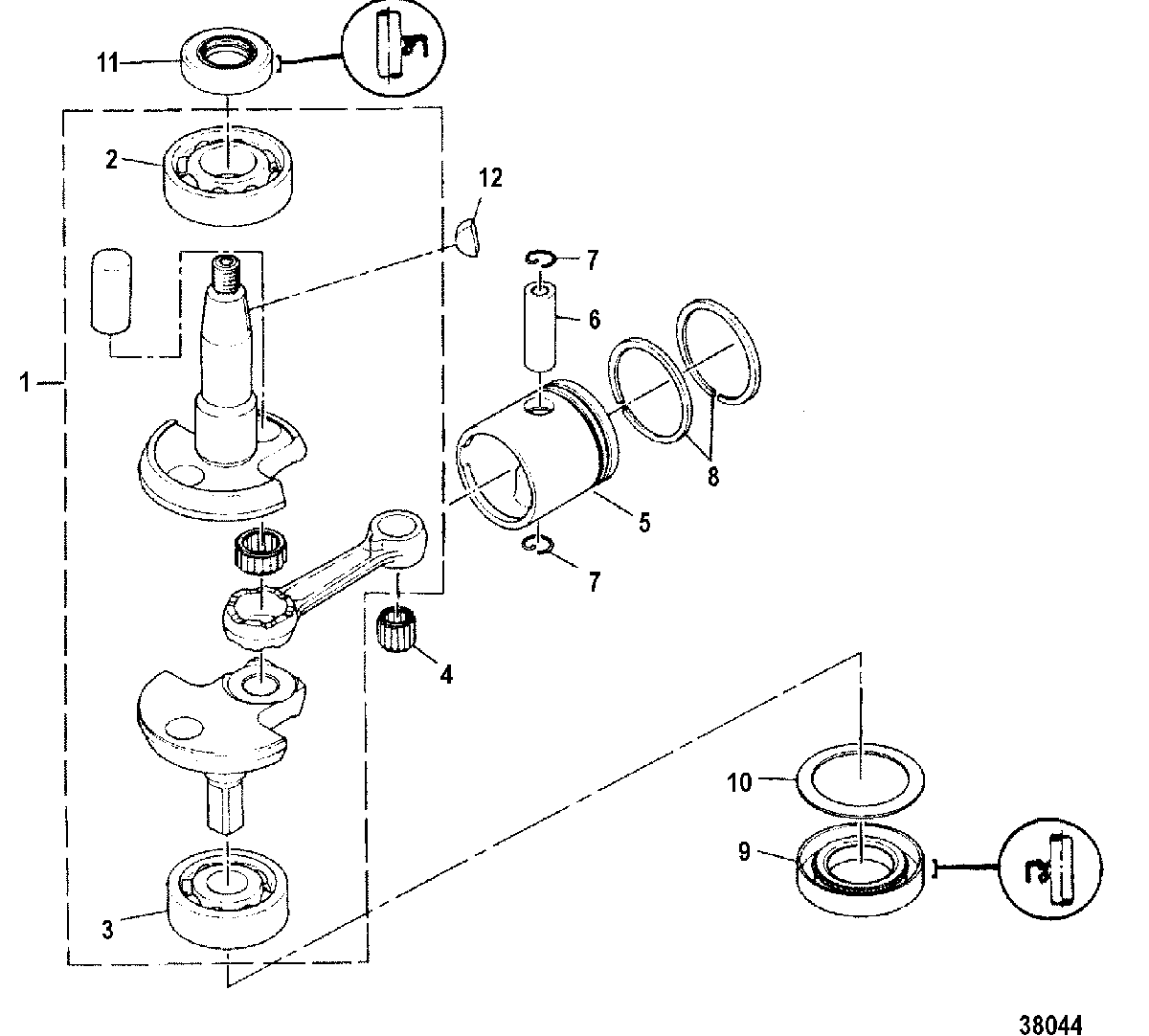

CRANKSHAFT AND PISTON для Mariner - 2B 6A1-000101 & Up

  • №
    Артикул
    Название
  • 1
    463-7858M CRANKSHAFT ASSEMBLY
    CRANKSHAFT ASSEMBLY
  • 2
    30-82293M BEARING, Upper
    BEARING, Upper
  • 3
    31-810944M BEARING, Lower
    BEARING, Lower
  • 4
    31-810944M BEARING, CONNECTING ROD-SMALL END
    SN# M-142377 & Up
    BEARING, CONNECTING ROD-SMALL END
    SN# M-142377 & Up
  • 4
    31-82310M BEARING, CONNECTING ROD-SMALL END
    SN# M-142376 & Below
    BEARING, CONNECTING ROD-SMALL END
    SN# M-142376 & Below
  • 5
    761-6731M PISTON (STD)
    PISTON (STD)
  • 5
    761-6732M PISTON (1ST O.S. 39.25MM)
    PISTON (1ST O.S. 39.25MM)
  • 5
    761-6733M PISTON (2ND O.S 39.50MM)
    PISTON (2ND O.S 39.50MM)
  • 6
    41-80317M PIN, Piston
    PIN, Piston
  • 7
    53-82341M LOCK RING
    LOCK RING
  • 8
    39-80314M RING SET, Piston (STD)
    RING SET, Piston (STD)
  • 8
    39-80315M RING SET, Piston (1ST O.S.)
    RING SET, Piston (1ST O.S.)
  • 8
    39-80316M RING SET, Piston (2ND O.S)
    RING SET, Piston (2ND O.S)
  • 9
    26-813474M SEAL, Oil, CRANKSHAFT-LOWER
    SN# M-131232 & Up
    SEAL, Oil, CRANKSHAFT-LOWER
    SN# M-131232 & Up
  • 9
    26-82242M SEAL, Oil, CRANKSHAFT-LOWER
    SN# M-131231 & Below
    SEAL, Oil, CRANKSHAFT-LOWER
    SN# M-131231 & Below
  • 10
    23-81840M SPACER, CRANKSHAFT BEARAING - LOWER
    SPACER, CRANKSHAFT BEARAING - LOWER
  • 11
    26-82242M SEAL, Oil, CRANKSHAFT - UPPER
    SN# M-131232 & Up
    SEAL, Oil, CRANKSHAFT - UPPER
    SN# M-131232 & Up
  • 11
    26-82237M SEAL, Oil, CRANKSHAFT-UPPER
    SN# M-131231 & Below
    SEAL, Oil, CRANKSHAFT-UPPER
    SN# M-131231 & Below
  • 12
    28-893761 KEY, CRANKSHAFT TO FLYWHEEL
    KEY, CRANKSHAFT TO FLYWHEEL
