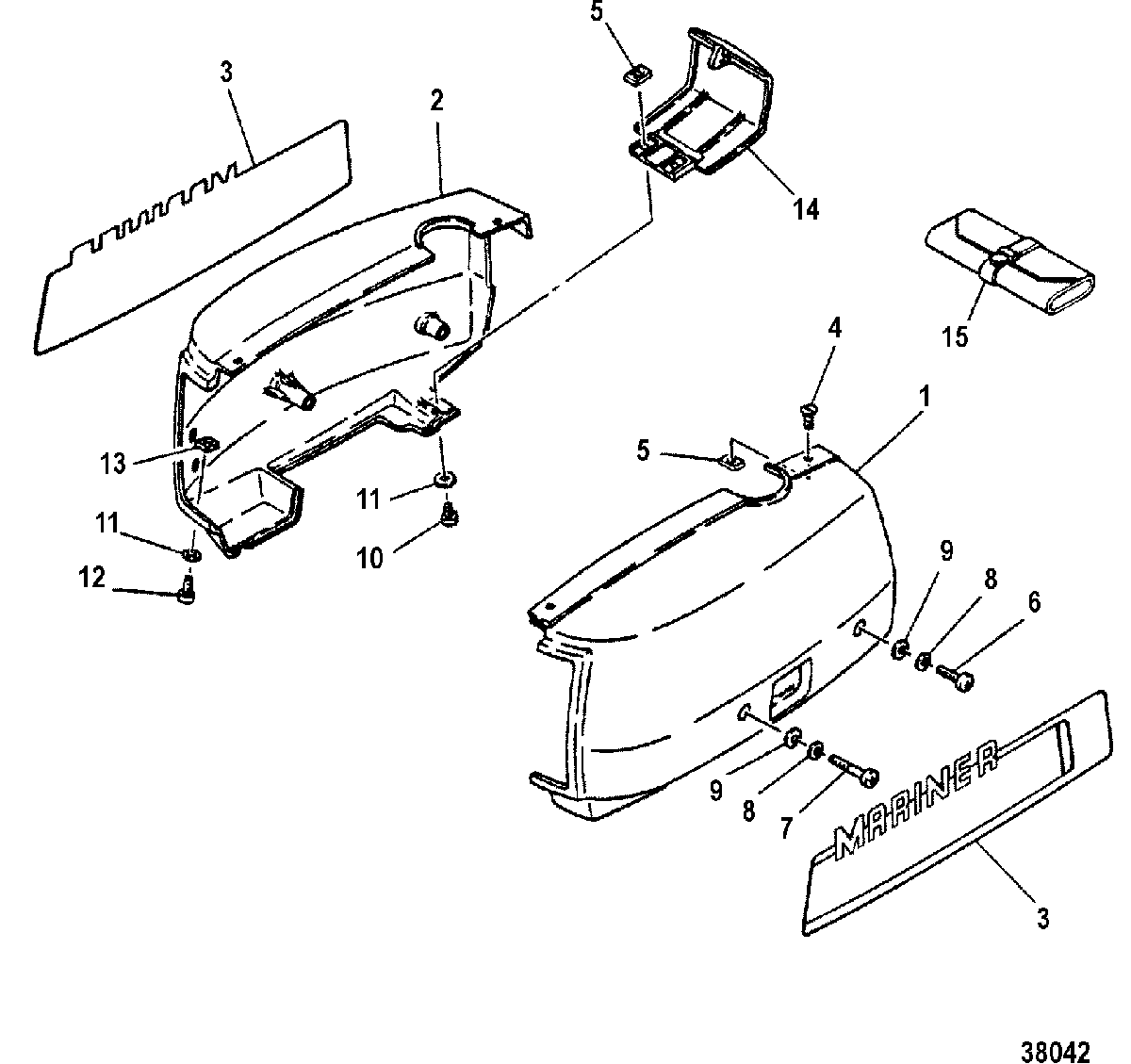

COWLING для Mariner - 2B 6A1-000101 & Up

  • №
    Артикул
    Название
  • 1
    2168-9336M TOP COWL ASSEMBLY, PORT
    SN# M-076692 & Up
    TOP COWL ASSEMBLY, PORT
    SN# M-076692 & Up
  • 1
    2168-9336M TOP COWL ASSEMBLY, PORT
    SN# M-061112 THRU M-076691
    TOP COWL ASSEMBLY, PORT
    SN# M-061112 THRU M-076691
  • 1
    2168-7869M TOP COWL ASSEMBLY, PORT
    SN# M-061111 & Below
    TOP COWL ASSEMBLY, PORT
    SN# M-061111 & Below
  • 2
    2168-9337M TOP COWL ASSEMBLY, STARBOARD
    SN# M-061112 & Up
    TOP COWL ASSEMBLY, STARBOARD
    SN# M-061112 & Up
  • 2
    2168-7868M TOP COWL ASSEMBLY, STARBOARD
    SN# M-061111 & Below
    TOP COWL ASSEMBLY, STARBOARD
    SN# M-061111 & Below
  • 3
    37-810931A90 DECAL, SIDE SET
    SN# M-142377 & Up
    DECAL, SIDE SET
    SN# M-142377 & Up
  • 3
    37-11906M DECAL, SIDE SET
    SN# M-142376 & Below
    DECAL, SIDE SET
    SN# M-142376 & Below
  • 4
    10-92556M SCREW
    SCREW
  • 5
    11-92557M NUT
    NUT
  • 6
    10-8527874 SCREW
    SCREW
  • 7
    10-92559M SCREW
    SCREW
  • 8
    822112M WASHER, LOCK
    WASHER, LOCK
  • 9
    12-82214M WASHER
    WASHER
  • 10
    10-83523M SCREW
    SN# M-131232 & Up
    SCREW
    SN# M-131232 & Up
  • 10
    10-14232M SCREW
    SN# M-131231 & Below
    SCREW
    SN# M-131231 & Below
  • 11
    12-82211M WASHER
    WASHER
  • 12
    10-14232M SCREW
    SN# M-131232 & Up
    SCREW
    SN# M-131232 & Up
  • 12
    10-83523M SCREW
    SN# M-131231 & Below
    SCREW
    SN# M-131231 & Below
  • 13
    11-92560M NUT
    NUT
  • 14
    11907M COVER, PLUG CAP
    SN# M-061112 & Up
    COVER, PLUG CAP
    SN# M-061112 & Up
  • 14
    11907M COVER, PLUG CAP
    SN# M-061111 & Below
    COVER, PLUG CAP
    SN# M-061111 & Below
  • 15
    91-803581 TOOL KIT
    TOOL KIT
