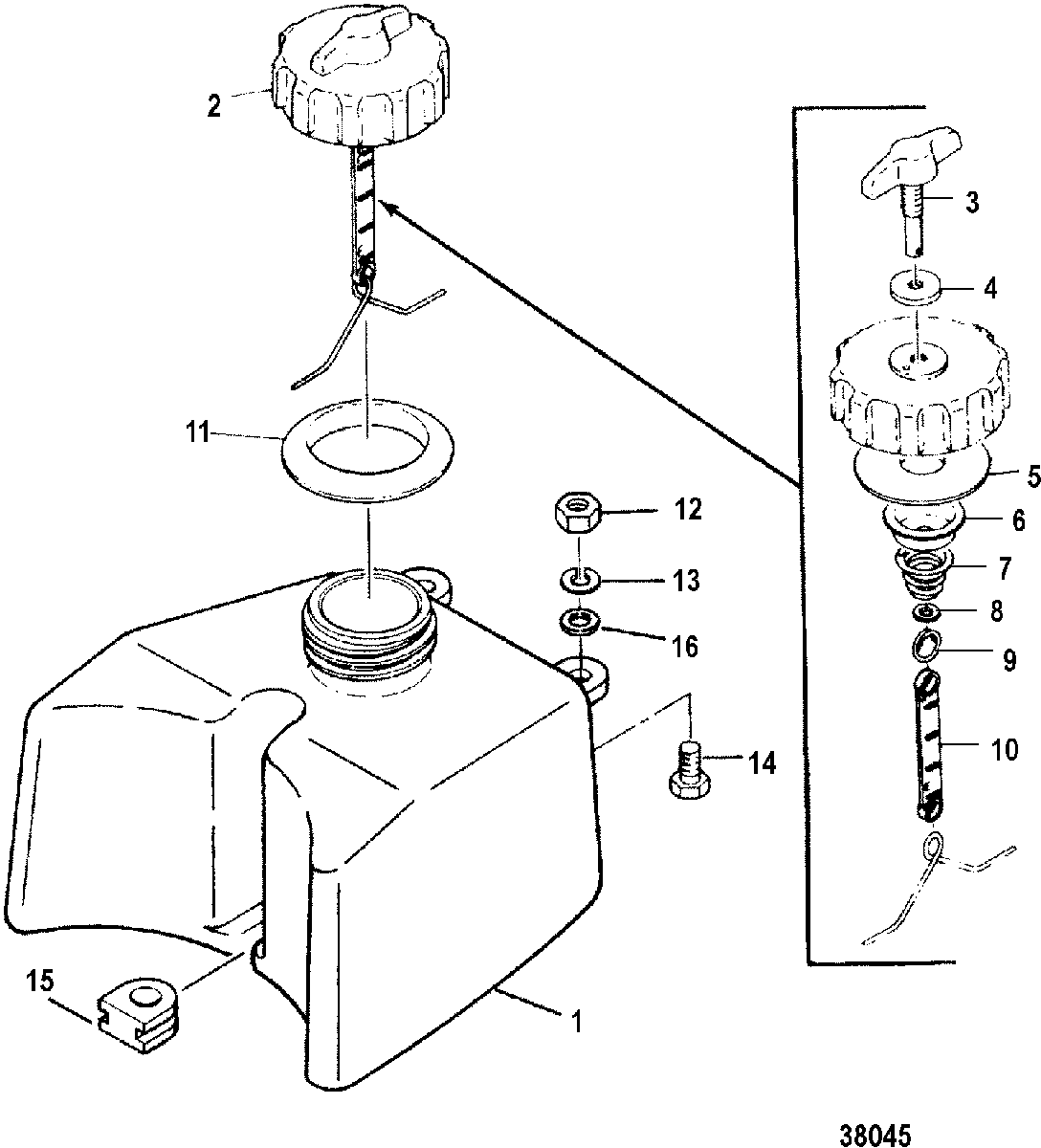

FUEL TANK для Mariner - 2B 6A1-000101 & Up

  • №
    Артикул
    Название
  • 1
    1252-9209T TANK, Fuel
    TANK, Fuel
  • 2
    36-18857M CAP ASSEMBLY
    CAP ASSEMBLY
  • 3
    10-11910M SCREW, AIR
    SN# M-076692 & Up
    SCREW, AIR
    SN# M-076692 & Up
  • 3
    10-11910M SCREW, AIR
    SN# M-076691 & Below
    SCREW, AIR
    SN# M-076691 & Below
  • 4
    27-82814M GASKET
    GASKET
  • 5
    26-82815M PACKING
    PACKING
  • 6
    27-82817M GASKET
    GASKET
  • 7
    24-82819M SPRING, COMPRESSION
    SPRING, COMPRESSION
  • 8
    12-82847M WASHER
    WASHER
  • 9
    24-82820M SPRING, SAFETY
    SPRING, SAFETY
  • 10
    82821M INDICATOR
    INDICATOR
  • 11
    25-95458M SEAT, CAP ASSEMBLY
    SEAT, CAP ASSEMBLY
  • 12
    11-82389M NUT
    SN# M-142377 & Up
    NUT
    SN# M-142377 & Up
  • 12
    11-82389M NUT
    SN# M-142376 & Below
    NUT
    SN# M-142376 & Below
  • 13
    13-82212M LOCKWASHER, SPRING
    SN# M-093605 & Up
    LOCKWASHER, SPRING
    SN# M-093605 & Up
  • 14
    10-82423M BOLT
    SN# M-142377 & Up
    BOLT
    SN# M-142377 & Up
  • 14
    10-82423M BOLT
    SN# M-142376 & Below
    BOLT
    SN# M-142376 & Below
  • 15
    92565M DAMPER, LOCATING
    DAMPER, LOCATING
  • 16
    12-92564M WASHER
    WASHER
