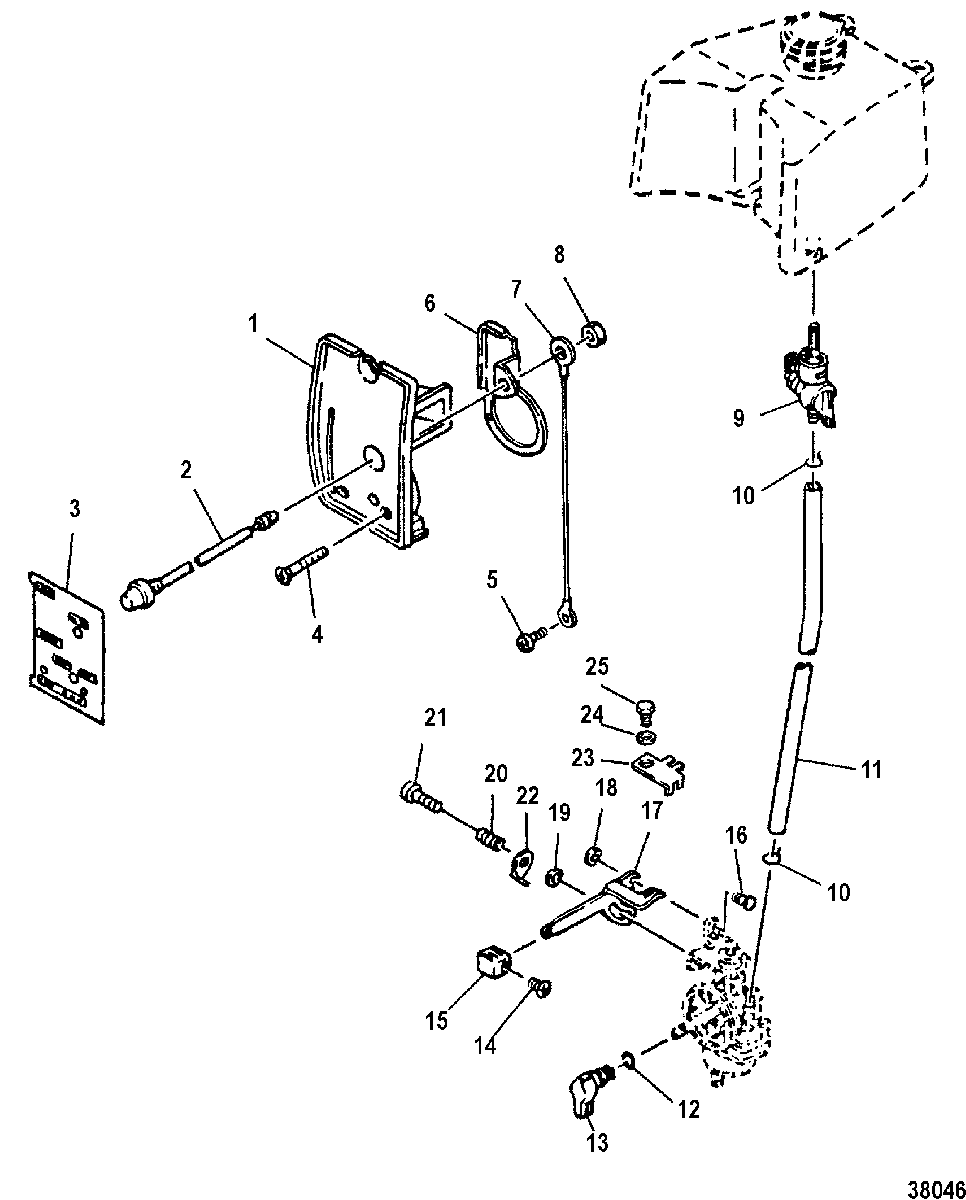

CHOKE-MAGNETO CONTROL AND FUEL COCK для Mariner - 2B 6A1-000101 & Up

№

Артикул

Название
1

813476M SILENCER ASSEMBLY, Intake
SN# M-061112 & Up

SILENCER ASSEMBLY, Intake
SN# M-061112 & Up
1

810818M SILENCER ASSEMBLY, Intake
SN# M-061111 & Below

SILENCER ASSEMBLY, Intake
SN# M-061111 & Below
2

87-18835M SWITCH ASSEMBLY, Stop
SN# M-115872 & Up

SWITCH ASSEMBLY, Stop
SN# M-115872 & Up
2

87-18835M SWITCH ASSEMBLY, Stop
SN# M-115871 & Below

SWITCH ASSEMBLY, Stop
SN# M-115871 & Below
3

37-11911M DECAL, FRONT

DECAL, FRONT
4

10-84993M SCREW

SCREW
5

10-83523M SCREW
SN# M-131232 & Up

SCREW
SN# M-131232 & Up
5

10-17661M SCREW
SN# M-131231 & Below

SCREW
SN# M-131231 & Below
6

23-84994M SPACER

SPACER
7

84-84995M WIRE, LEAD

WIRE, LEAD
8

11-82383M NUT

NUT
9

35-95460T FUEL COCK ASSEMBLY

FUEL COCK ASSEMBLY
10

32-81324M CLAMP, HOSE

CLAMP, HOSE
11

32-81324M CLAMP, FUEL

CLAMP, FUEL
12

25-84998M O-RING

O-RING
13

84999M KNOB, CHOKE

KNOB, CHOKE
14

10-95461M SCREW
SN# M-061112 & Up

SCREW
SN# M-061112 & Up
14

10-92505M SCREW
SN# M-061111 & Below

SCREW
SN# M-061111 & Below
15

92506M KNOB, MAGNETO CONTROL

KNOB, MAGNETO CONTROL
16

17-92507M PIN, CLEVIS

PIN, CLEVIS
17

18836M ARM, Accelerator
SN# M-115872 & Up

ARM, Accelerator
SN# M-115872 & Up
17

92508M ACCELERATOR ARM
SN# M-115871 & Below

ACCELERATOR ARM
SN# M-115871 & Below
18

53-82327M CIRCLIP

CIRCLIP
19

12-82209M WASHER
SN# M-131231 & Below

WASHER
SN# M-131231 & Below
20

24-92509M SPRING

SPRING
21

10-83108M SCREW

SCREW
22

13-18838M WASHER, LOCK
SN# M-115872 & Up

WASHER, LOCK
SN# M-115872 & Up
23

18837M LINK, ACCELERATOR
SN# M-115872 & Up

LINK, ACCELERATOR
SN# M-115872 & Up
24

13-82186M WASHER, LOCK
SN# M-115872 & Up

WASHER, LOCK
SN# M-115872 & Up
25

10-84313M BOLT
SN# M-115872 & Up

BOLT
SN# M-115872 & Up
-

27-813475M GASKET SET, Powerhead

GASKET SET, Powerhead
