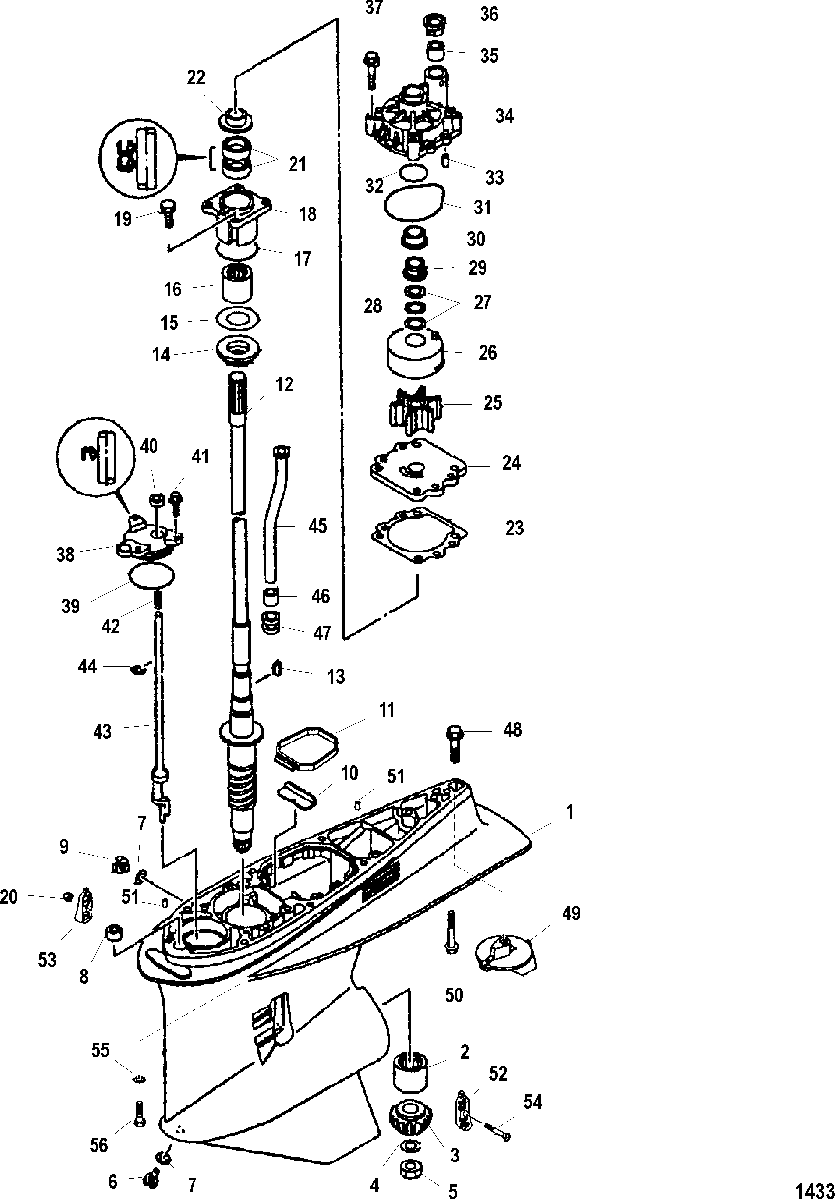

Gear Housing(Driveshaft)(standard/Counter Rotation) для Mariner - 225 EFI (4-STROKE) 0T653945 & Up
![](/wa-data/public/shop/sheme/mercury/dmcxh2oj.png)
-
№АртикулНазвание
-
-1623-888680T06 GEAR HOUSING ASSEMBLY, Complete
(X-Long)(Standard) SN# 1B226999 & BelowGEAR HOUSING ASSEMBLY, Complete
(X-Long)(Standard) SN# 1B226999 & Below -
-1623-888680T06 GEAR HOUSING ASSEMBLY, Complete
(X-Long)(Standard) SN# 1B227000 & UpGEAR HOUSING ASSEMBLY, Complete
(X-Long)(Standard) SN# 1B227000 & Up -
-1623-888680T07 GEAR HOUSING ASSEMBLY, Complete
(XX-Long)(Standard) SN# 1B226999 & BelowGEAR HOUSING ASSEMBLY, Complete
(XX-Long)(Standard) SN# 1B226999 & Below -
-1623-888680T07 GEAR HOUSING ASSEMBLY, Complete
(XX-Long)(Standard) SN# 1B227000 & UpGEAR HOUSING ASSEMBLY, Complete
(XX-Long)(Standard) SN# 1B227000 & Up -
-1623-888680T08 GEAR HOUSING ASSEMBLY, Complete
(X-Long)(Counter Rotation) SN# 1B226999 & BelowGEAR HOUSING ASSEMBLY, Complete
(X-Long)(Counter Rotation) SN# 1B226999 & Below -
-1623-888680T08 GEAR HOUSING ASSEMBLY, Complete
(X-Long)(Counter Rotation) SN# 1B227000 & UpGEAR HOUSING ASSEMBLY, Complete
(X-Long)(Counter Rotation) SN# 1B227000 & Up -
-1623-888680T09 GEAR HOUSING ASSEMBLY, Complete
(XX-Long)(Counter Rotation) SN# 1B226999 & BelowGEAR HOUSING ASSEMBLY, Complete
(XX-Long)(Counter Rotation) SN# 1B226999 & Below -
-1623-888680T09 GEAR HOUSING ASSEMBLY, Complete
(XX-Long)(Counter Rotation) SN# 1B227000 & UpGEAR HOUSING ASSEMBLY, Complete
(XX-Long)(Counter Rotation) SN# 1B227000 & Up -
11623-888680T1 GEAR HOUSING ASSEMBLY, Basic (Basic)GEAR HOUSING ASSEMBLY, Basic (Basic)
-
231-888681 BEARINGBEARING
-
343-888697 GEAR, Pinion
SN# 1B226999 & BelowGEAR, Pinion
SN# 1B226999 & Below -
343-8M0065219 GEAR, Pinion
SN# 1B227000 & UpGEAR, Pinion
SN# 1B227000 & Up -
412-88838012 WASHERWASHER
-
511-8813141 NUTNUT
-
622-95632010 PLUG, DrainPLUG, Drain
-
727-81987 GASKETGASKET
-
826-81426M SEALSEAL
-
922-81924M PLUGPLUG
-
108M0073425 GUIDEGUIDE
-
118886653 DAMPERDAMPER
-
1245-888696 DRIVESHAFT
(X-Long)DRIVESHAFT
(X-Long) -
1245-8886961 DRIVESHAFT
(XX-Long)DRIVESHAFT
(XX-Long) -
1328-8813421 KEYKEY
-
1431-8M0080453 BEARINGBEARING
-
1515-888715A1 SHIM SETSHIM SET
-
1631-8M0054671 BEARINGBEARING
-
1725-8814372 O-RINGO-RING
-
188M0132383 HOUSINGHOUSING
-
1910-8878272 BOLTBOLT
-
2011-8528165 NUTNUT
-
2126-888694 SEAL, OilSEAL, Oil
-
22888695 COVERCOVER
-
2327-888692 GASKETGASKET
-
248M0091465 OUTER PLATEOUTER PLATE
-
2547-888689 IMPELLERIMPELLER
-
26888687 INSERTINSERT
-
2712-8556822 WASHERWASHER
-
2813-8883632 WAVE WASHERWAVE WASHER
-
2923-888690 SPACERSPACER
-
3023-8886901 COLLARCOLLAR
-
3125-8255792 O-RINGO-RING
-
3225-82274M O-RINGO-RING
-
3317-82364M PIN, DowelPIN, Dowel
-
34888686T HOUSING, Water PumpHOUSING, Water Pump
-
358886652 DAMPERDAMPER
-
36888688 COVERCOVER
-
3710-8814231 BOLTBOLT
-
38888683 PLATEPLATE
-
3925-8255791 O-RINGO-RING
-
4026-82257M SEAL, OilSEAL, Oil
-
4110-85277616 BOLTBOLT
-
4224-8266901 SPRINGSPRING
-
43888684 SHIFT CAM
(Standard)SHIFT CAM
(Standard) -
438886841 SHIFT CAM
(Counter Rotation)SHIFT CAM
(Counter Rotation) -
4453-82334M RING, SnapRING, Snap
-
4532-8M0087433 TUBE, Water
(X-Long)TUBE, Water
(X-Long) -
4532-8M0057157 TUBE, Water
(XX-Long)TUBE, Water
(XX-Long) -
468886652 DAMPERDAMPER
-
478886651 DAMPERDAMPER
-
4810-82801M BOLTBOLT
-
49888712 TRIM TABTRIM TAB
-
5010-8041171 BOLT
(X-Long)BOLT
(X-Long) -
5010-8041172 BOLT
(XX-Long)BOLT
(XX-Long) -
5117-8886631 PIN, DowelPIN, Dowel
-
52888710003 COVERCOVER
-
53888710002 COVERCOVER
-
5410-888711 SCREWSCREW
-
5512-82220M WASHER
(X-Long)WASHER
(X-Long) -
5610-888612 BOLT
(X-Long)BOLT
(X-Long) -
-27-888658A03 GASKET SET, Lower Unit
SN# 0T807875 & BelowGASKET SET, Lower Unit
SN# 0T807875 & Below -
-27-888658A04 GASKET SET, Lower Unit
SN# 0T807876 & UpGASKET SET, Lower Unit
SN# 0T807876 & Up -
-888687A1 REPAIR KIT, Water PumpREPAIR KIT, Water Pump
