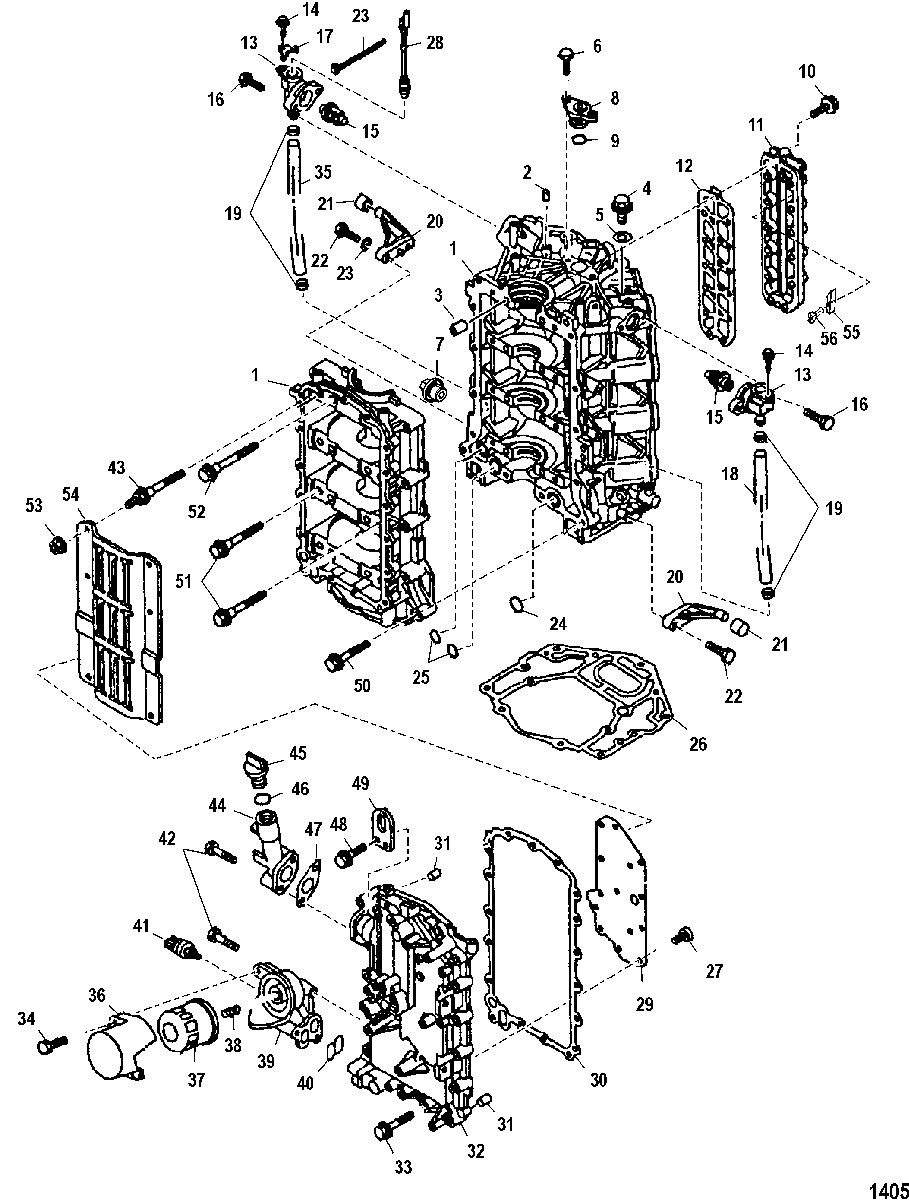

Cylinder Block для Mariner - 225 EFI (4-STROKE) 0T653945 & Up
-
№АртикулНазвание
-
1885-887792T1 CYLINDER BLOCK
SN# 0T807875 & BelowCYLINDER BLOCK
SN# 0T807875 & Below -
1885-887792T10 CYLINDER BLOCK
SN# 0T807876 & UpCYLINDER BLOCK
SN# 0T807876 & Up -
217-82364M PIN, DowelPIN, Dowel
-
317-887793 PIN, DowelPIN, Dowel
-
419-825953 PLUG, (M14 x 12)PLUG, (M14 x 12)
-
527-81990M GASKETGASKET
-
610-8257021 BOLT, (M6 x 20)BOLT, (M6 x 20)
-
722-888408 FITTINGFITTING
-
819-887813 PLUGPLUG
-
925-887814 O-RINGO-RING
-
1010-881427 BOLT, (M6 x 30)BOLT, (M6 x 30)
-
11887804T COVER
(Use without Anodes)COVER
(Use without Anodes) -
11887804T01 COVER
(Use with Anodes)COVER
(Use with Anodes) -
1227-8M0075276 GASKETGASKET
-
13887806T COVERCOVER
-
1410-887807 BOLTBOLT
-
158556761 THERMOSTAT, 60A°C (140A°F)THERMOSTAT, 60A°C (140A°F)
-
1610-8248326 SCREW, (M6 x 25 MM)SCREW, (M6 x 25 MM)
-
17815004M PLATEPLATE
-
1832-8878081 HOSEHOSE
-
1956762 TIE STRAP, (4.00 Inches)TIE STRAP, (4.00 Inches)
-
20804091 BRACKETBRACKET
-
21887811 DAMPERDAMPER
-
2210-8248326 SCREW, (M6 x 25 MM)SCREW, (M6 x 25 MM)
-
2356762 CLAMPCLAMP
-
2425-887812 O-RINGO-RING
-
2525-62705001 O-RINGO-RING
-
2627-887810 GASKET
SN# 0T807875 & BelowGASKET
SN# 0T807875 & Below -
2627-887810011 GASKET
SN# 0T807876 THRU 1B055687GASKET
SN# 0T807876 THRU 1B055687 -
2627-887810011 GASKET
SN# 1B055688 & UpGASKET
SN# 1B055688 & Up -
2710-804120 SCREW, (M4 x 8)SCREW, (M4 x 8)
-
28887823001 THERMO SWITCHTHERMO SWITCH
-
29887802 BREATHER COVERBREATHER COVER
-
3027-887825 GASKETGASKET
-
3117-82364M PIN, DowelPIN, Dowel
-
32887799T COVERCOVER
-
3310-887800 BOLTBOLT
-
3410-8248329 SCREW, (M6 x 40)SCREW, (M6 x 40)
-
3532-8878081 HOSEHOSE
-
36887819T COVERCOVER
-
3735-822626T7 FILTER, OilFILTER, Oil
-
3810-887816 BOLTBOLT
-
39887817T HOUSING, FilterHOUSING, Filter
-
4027-887818 GASKETGASKET
-
41887824T01 SENDER, Oil PressureSENDER, Oil Pressure
-
4210-887827 BOLTBOLT
-
4310-887797 BOLTBOLT
-
44887820 HOUSINGHOUSING
-
45859578A1 PLUG ASSEMBLY, OilPLUG ASSEMBLY, Oil
-
4625-90196 O-RING, (.921 x .139)O-RING, (.921 x .139)
-
4727-887822 GASKETGASKET
-
4810-881428 BOLT, (M6 x 16)BOLT, (M6 x 16)
-
49887803 LIFTING EYELIFTING EYE
-
5010-8M0101617 BOLT, (M8 x 55)BOLT, (M8 x 55)
-
5110-887796 BOLTBOLT
-
5210-887795 BOLTBOLT
-
5311-887798 NUTNUT
-
54887794T PLATEPLATE
-
5511761001 ANODEANODE
-
5610-827443001 SCREWSCREW
-
-900-887844T07 CYLINDER HEAD ASSEMBLY
(Starboard) SN# 1B055687 & BelowCYLINDER HEAD ASSEMBLY
(Starboard) SN# 1B055687 & Below -
-900-887844T07 CYLINDER HEAD ASSEMBLY
(Starboard) SN# 1B055688 THRU 1B226999CYLINDER HEAD ASSEMBLY
(Starboard) SN# 1B055688 THRU 1B226999 -
-900-887844T07 CYLINDER HEAD ASSEMBLY
(Starboard) SN# 1B227000 & UpCYLINDER HEAD ASSEMBLY
(Starboard) SN# 1B227000 & Up -
-900-887845T07 CYLINDER HEAD ASSEMBLY
(Port) SN# 1B055687 & BelowCYLINDER HEAD ASSEMBLY
(Port) SN# 1B055687 & Below -
-900-887845T07 CYLINDER HEAD ASSEMBLY
(Port) SN# 1B055688 THRU 1B226999CYLINDER HEAD ASSEMBLY
(Port) SN# 1B055688 THRU 1B226999 -
-900-887845T07 CYLINDER HEAD ASSEMBLY
(Port) SN# 1B227000 & UpCYLINDER HEAD ASSEMBLY
(Port) SN# 1B227000 & Up -
-885225T07 POWERHEAD ASSEMBLY
SN# 1B055687 & BelowPOWERHEAD ASSEMBLY
SN# 1B055687 & Below -
-885225T07 POWERHEAD ASSEMBLY
SN# 1B055688 THRU 1B226999POWERHEAD ASSEMBLY
SN# 1B055688 THRU 1B226999 -
-885225T07 POWERHEAD ASSEMBLY
SN# 1B227000 & UpPOWERHEAD ASSEMBLY
SN# 1B227000 & Up -
-27-887810A03 GASKET SET, Powerhead
SN# 0T807875 & BelowGASKET SET, Powerhead
SN# 0T807875 & Below -
-27-887810A04 GASKET SET, Powerhead
SN# 0T807876 THRU 1B055687GASKET SET, Powerhead
SN# 0T807876 THRU 1B055687 -
-27-887810A05 GASKET SET, Powerhead
SN# 1B055688 & UpGASKET SET, Powerhead
SN# 1B055688 & Up
