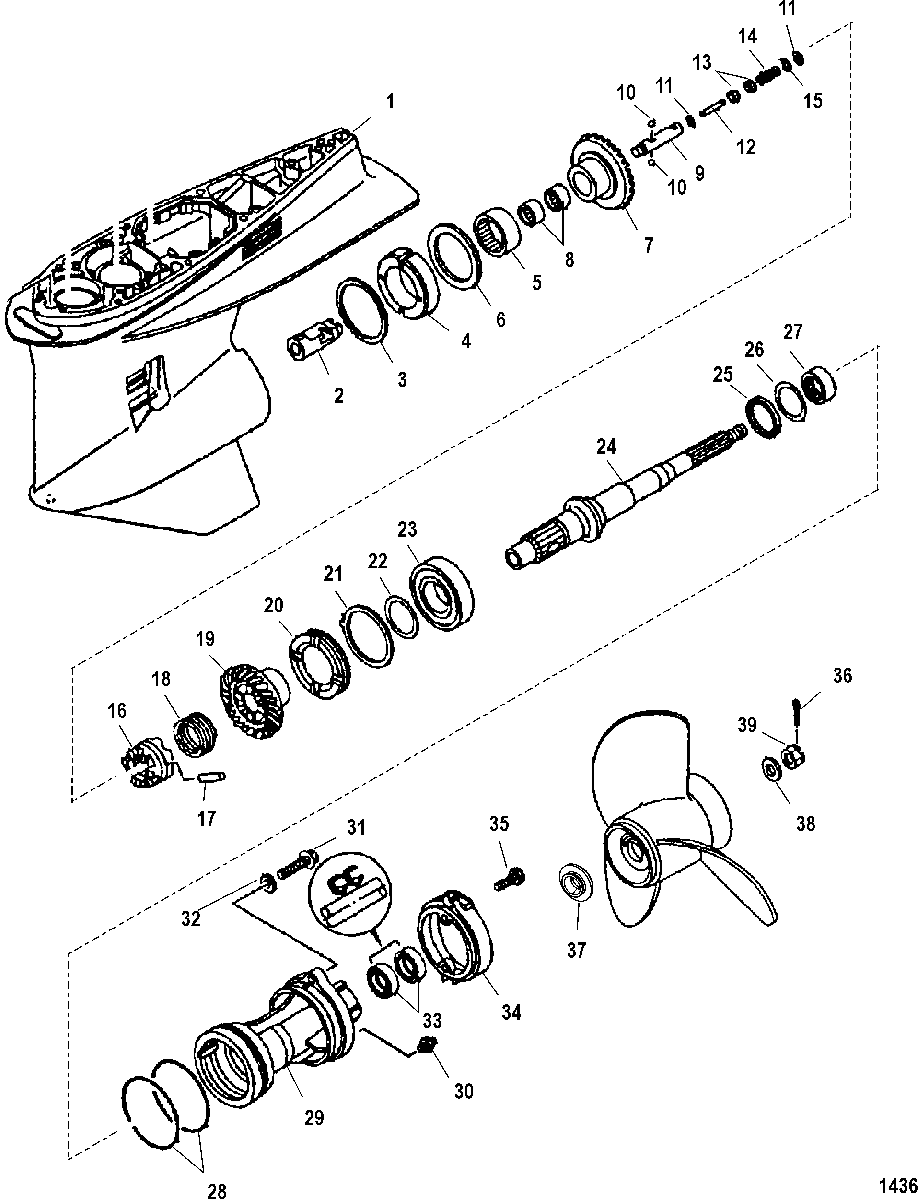

Gear Housing, Propeller Shaft - Counter Rotation для Mariner - 225 EFI (4-STROKE) 0T653945 & Up
-
№АртикулНазвание
-
-1623-888680T08 GEAR HOUSING ASSEMBLY, Complete
(X-Long) SN# 1B226999 & BelowGEAR HOUSING ASSEMBLY, Complete
(X-Long) SN# 1B226999 & Below -
-1623-888680T08 GEAR HOUSING ASSEMBLY, Complete
(X-Long) SN# 1B227000 & UpGEAR HOUSING ASSEMBLY, Complete
(X-Long) SN# 1B227000 & Up -
-1623-888680T09 GEAR HOUSING ASSEMBLY, Complete
(XX-Long) SN# 1B226999 & BelowGEAR HOUSING ASSEMBLY, Complete
(XX-Long) SN# 1B226999 & Below -
-1623-888680T09 GEAR HOUSING ASSEMBLY, Complete
(XX-Long) SN# 1B227000 & UpGEAR HOUSING ASSEMBLY, Complete
(XX-Long) SN# 1B227000 & Up -
11623-888680T1 GEAR HOUSING ASSEMBLY, Basic (Basic)GEAR HOUSING ASSEMBLY, Basic (Basic)
-
28M0120286 SHIFTERSHIFTER
-
315-888713A1 SHIM SETSHIM SET
-
423-888716 SPACERSPACER
-
531-8886816 BEARINGBEARING
-
631-8886817 BEARINGBEARING
-
743-888707T1 GEAR, Reverse
SN# 1B226999 & BelowGEAR, Reverse
SN# 1B226999 & Below -
743-888707T03 GEAR, Reverse
SN# 1B227000 & UpGEAR, Reverse
SN# 1B227000 & Up -
831-8886818 BEARING
SN# 1B226999 & BelowBEARING
SN# 1B226999 & Below -
831-8M0070189 BEARING
SN# 1B227000 & UpBEARING
SN# 1B227000 & Up -
9888701 SHIFT SLIDESHIFT SLIDE
-
1082346M BALLBALL
-
1111-8813142 NUTNUT
-
12888704 SHAFTSHAFT
-
13888705 PLUNGERPLUNGER
-
1424-8887031 SPRINGSPRING
-
1512-8043051 WASHERWASHER
-
1652-888702 CLUTCHCLUTCH
-
1717-8886331 PINPIN
-
1824-888703 SPRINGSPRING
-
1943-888698T1 GEAR, Forward
SN# 1B226999 & BelowGEAR, Forward
SN# 1B226999 & Below -
1943-888698T03 GEAR, Forward
SN# 1B227000 & UpGEAR, Forward
SN# 1B227000 & Up -
2011-889309 NUTNUT
-
2114-888717 TAB WASHERTAB WASHER
-
2215-888767A1 SHIM SETSHIM SET
-
2331-8886819 BEARINGBEARING
-
2444-8886991 PROPELLER SHAFTPROPELLER SHAFT
-
2531-88868110 BEARINGBEARING
-
2615-888766A1 SHIM SETSHIM SET
-
2731-8886815 BEARINGBEARING
-
2825-8814373 O-RINGO-RING
-
29888706T1 CARRIER, BearingCARRIER, Bearing
-
3022-8883741 FITTING, GreaseFITTING, Grease
-
3110-8M0086362 BOLTBOLT
-
3212-8043053 WASHERWASHER
-
3326-8886941 SEAL, OilSEAL, Oil
-
34888708 CAPCAP
-
3510-881816 BOLT, (M8 x 20)BOLT, (M8 x 20)
-
3618-887974 COTTER PINCOTTER PIN
-
3712-8539481 THRUST WASHERTHRUST WASHER
-
3812-887972 WASHERWASHER
-
39859939 PROP NUTPROP NUT
-
-27-888658A03 GASKET SET, Lower Unit
SN# 0T807875 & BelowGASKET SET, Lower Unit
SN# 0T807875 & Below -
-27-888658A04 GASKET SET, Lower Unit
SN# 0T807876 & UpGASKET SET, Lower Unit
SN# 0T807876 & Up
