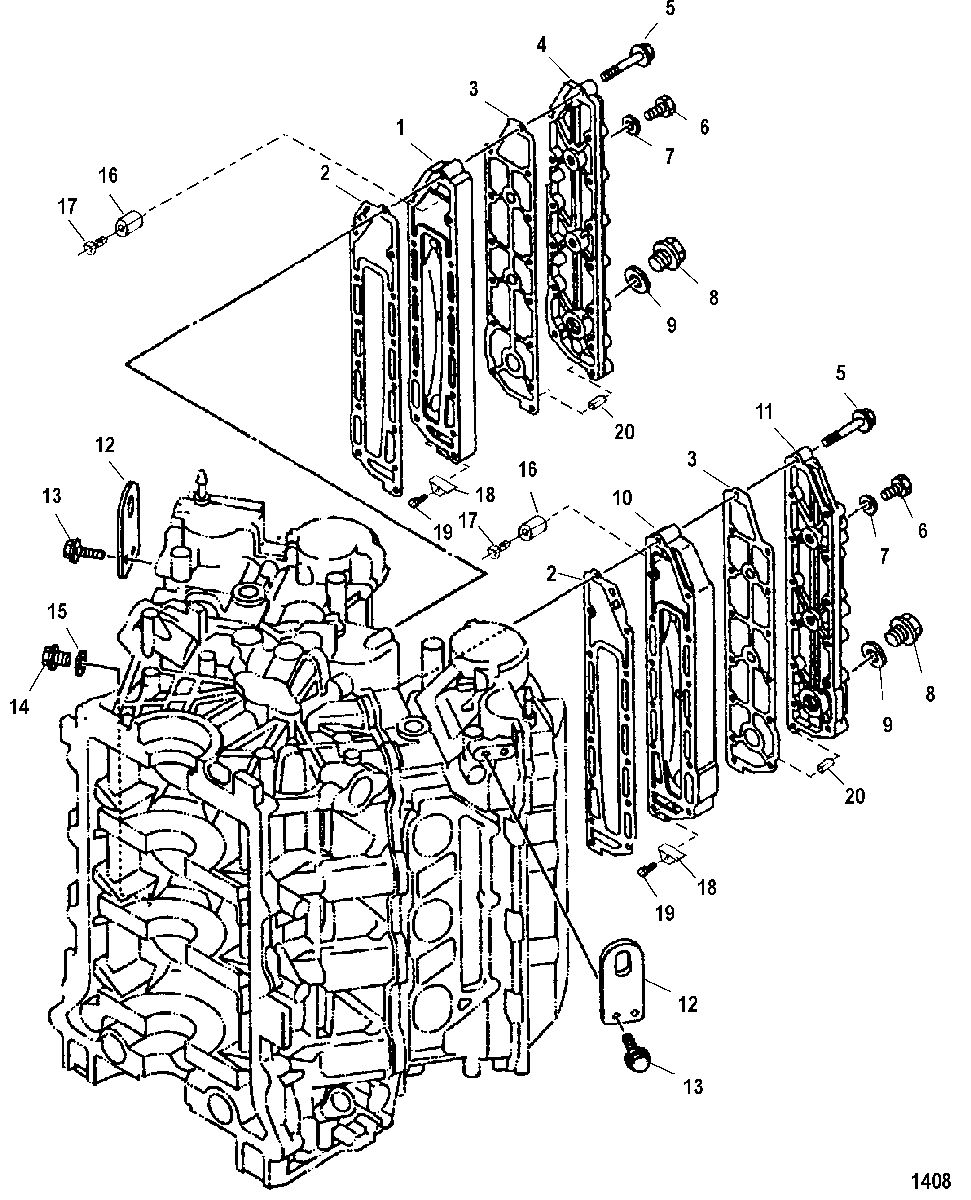

Exhaust Covers для Mariner - 225 EFI (4-STROKE) 0T653945 & Up

  • №
    Артикул
    Название
  • 1
    887857T COVER, Exhaust - Inner (Starboard)
    (Use without Anodes)
    COVER, Exhaust - Inner (Starboard)
    (Use without Anodes)
  • 1
    887857T01 COVER, Exhaust - Inner (Starboard)
    (Use with Anodes)
    COVER, Exhaust - Inner (Starboard)
    (Use with Anodes)
  • 2
    27-887861001 GASKET
    (Use without Anodes)
    GASKET
    (Use without Anodes)
  • 2
    27-887861001 GASKET
    (Use with Anodes)
    GASKET
    (Use with Anodes)
  • 3
    27-887862001 GASKET
    (Use without Anodes)
    GASKET
    (Use without Anodes)
  • 3
    27-887862001 GASKET
    (Use with Anodes)
    GASKET
    (Use with Anodes)
  • 4
    887859T COVER, Exhaust - Outer (Starboard)
    (Use without Anodes)
    COVER, Exhaust - Outer (Starboard)
    (Use without Anodes)
  • 4
    887859T01 COVER, Exhaust - Outer (Starboard)
    (Use with Anodes)
    COVER, Exhaust - Outer (Starboard)
    (Use with Anodes)
  • 5
    10-887863 BOLT
    BOLT
  • 6
    10-83124714 BOLT
    BOLT
  • 7
    12-831246 WASHER, Sealing
    WASHER, Sealing
  • 8
    10-881425 SCREW
    SCREW
  • 9
    27-881426 GASKET
    GASKET
  • 10
    887858T COVER, Exhaust - Inner (Port)
    (Use without Anodes)
    COVER, Exhaust - Inner (Port)
    (Use without Anodes)
  • 10
    887858T01 COVER, Exhaust - Inner (Port)
    (Use with Anodes)
    COVER, Exhaust - Inner (Port)
    (Use with Anodes)
  • 11
    887860T COVER, Exhaust - Outer (Port)
    (Use without Anodes)
    COVER, Exhaust - Outer (Port)
    (Use without Anodes)
  • 11
    887860T01 COVER, Exhaust - Outer (Port)
    (Use with Anodes)
    COVER, Exhaust - Outer (Port)
    (Use with Anodes)
  • 12
    887864 LIFTING EYE
    LIFTING EYE
  • 13
    10-881428 BOLT, (M6 x 16)
    BOLT, (M6 x 16)
  • 14
    19-825953 PLUG, (M14 x 12)
    PLUG, (M14 x 12)
  • 15
    27-81990M GASKET
    GASKET
  • 16
    97-11761002 ANODE
    ANODE
  • 17
    10-95209001 SCREW
    SCREW
  • 18
    11761001 ANODE
    ANODE
  • 19
    10-827443001 SCREW
    SCREW
  • 20
    17-82154M PIN
    PIN
  • -
    900-887844T07 CYLINDER HEAD ASSEMBLY
    (Starboard) SN# 1B055687 & Below
    CYLINDER HEAD ASSEMBLY
    (Starboard) SN# 1B055687 & Below
  • -
    900-887844T07 CYLINDER HEAD ASSEMBLY
    (Starboard) SN# 1B055688 THRU 1B226999
    CYLINDER HEAD ASSEMBLY
    (Starboard) SN# 1B055688 THRU 1B226999
  • -
    900-887844T07 CYLINDER HEAD ASSEMBLY
    (Starboard) SN# 1B227000 & Up
    CYLINDER HEAD ASSEMBLY
    (Starboard) SN# 1B227000 & Up
  • -
    900-887845T07 CYLINDER HEAD ASSEMBLY
    (Port) SN# 1B055687 & Below
    CYLINDER HEAD ASSEMBLY
    (Port) SN# 1B055687 & Below
  • -
    900-887845T07 CYLINDER HEAD ASSEMBLY
    (Port) SN# 1B055688 THRU 1B226999
    CYLINDER HEAD ASSEMBLY
    (Port) SN# 1B055688 THRU 1B226999
  • -
    900-887845T07 CYLINDER HEAD ASSEMBLY
    (Port) SN# 1B227000 & Up
    CYLINDER HEAD ASSEMBLY
    (Port) SN# 1B227000 & Up
  • -
    27-887810A03 GASKET SET, Powerhead
    SN# 0T807875 & Below
    GASKET SET, Powerhead
    SN# 0T807875 & Below
  • -
    27-887810A04 GASKET SET, Powerhead
    SN# 0T807876 THRU 1B055687
    GASKET SET, Powerhead
    SN# 0T807876 THRU 1B055687
  • -
    27-887810A05 GASKET SET, Powerhead
    SN# 1B055688 & Up
    GASKET SET, Powerhead
    SN# 1B055688 & Up
