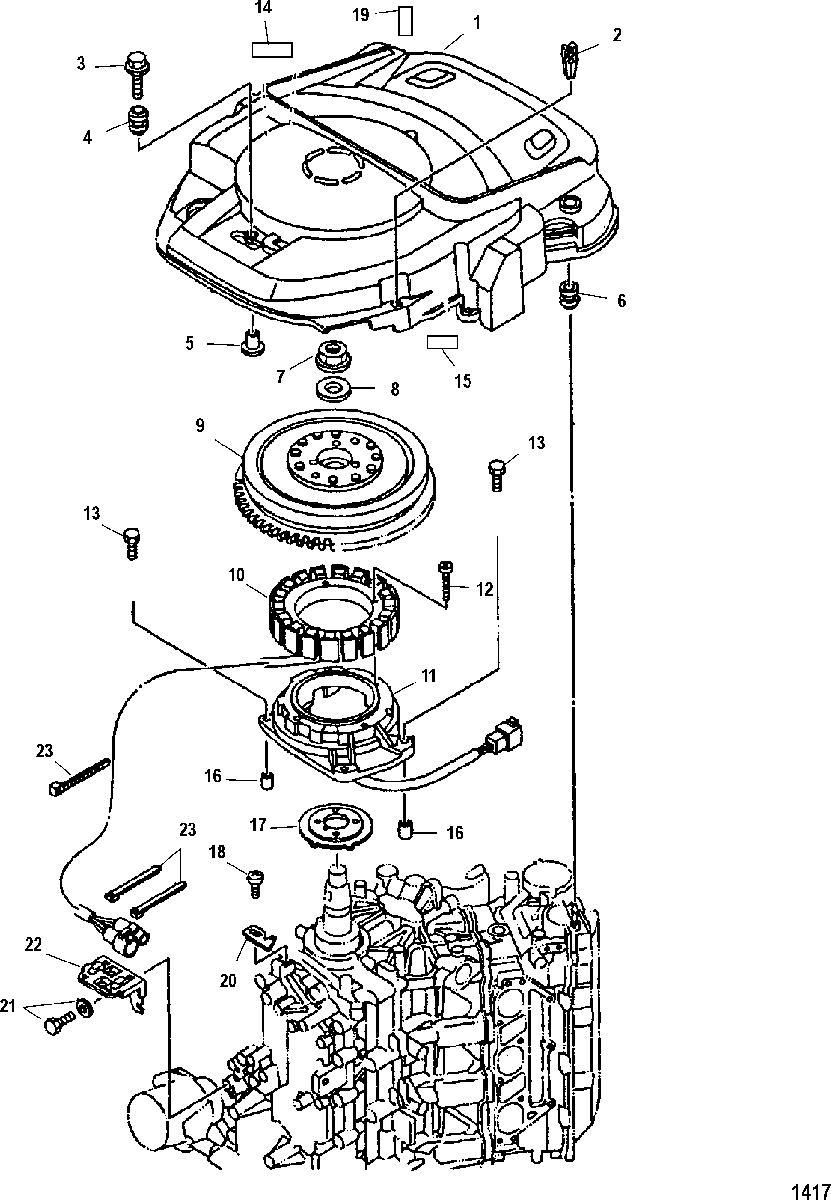

Flywheel для Mariner - 225 EFI (4-STROKE) 0T653945 & Up

  • №
    Артикул
    Название
  • 1
    888303T COVER, Flywheel
    COVER, Flywheel
  • 2
    804289 PULLER, Fuse
    PULLER, Fuse
  • 3
    10-804270 BOLT, (M6 x 28)
    BOLT, (M6 x 28)
  • 4
    25-881304 GROMMET
    GROMMET
  • 5
    23-804344003 BUSHING
    BUSHING
  • 6
    25-888304 GROMMET
    GROMMET
  • 7
    11-804265A1 NUT/WASHER KIT, Hex (36 mm)
    NUT/WASHER KIT, Hex (36 mm)
  • 8
    12-8042641 WASHER, Plate
    WASHER, Plate
  • 9
    280-888300T FLYWHEEL
    SN# 0T807875 & Below
    FLYWHEEL
    SN# 0T807875 & Below
  • 9
    280-888300T10 FLYWHEEL
    SN# 0T807876 & Up
    FLYWHEEL
    SN# 0T807876 & Up
  • -
    398-888305T1 STATOR KIT
    SN# 0T807875 & Below
    STATOR KIT
    SN# 0T807875 & Below
  • -
    398-888305T03 STATOR KIT
    SN# 0T807876 & Up
    STATOR KIT
    SN# 0T807876 & Up
  • 10
    398-8M0095241 STATOR
    STATOR
  • 11
    888306T1 SENSOR ASSEMBLY, Crankshaft Position
    SENSOR ASSEMBLY, Crankshaft Position
  • 12
    10-881338 SCREW, (M6 x 28)
    SCREW, (M6 x 28)
  • 13
    10-881375 BOLT, (M6 x 30)
    BOLT, (M6 x 30)
  • 14
    37-881865 DECAL, Caution-Start in Gear
    DECAL, Caution-Start in Gear
  • 15
    NSS NOT SOLD SEPARATE, Decal
    NOT SOLD SEPARATE, Decal
  • 16
    17-825010 PIN, Dowel
    PIN, Dowel
  • 17
    888301 ROTOR
    ROTOR
  • 18
    10-804267 SCREW
    SCREW
  • 19
    NSS NOT SOLD SEPARATE, Decal-Servicing Referral
    NOT SOLD SEPARATE, Decal-Servicing Referral
  • 20
    804266001 TIMING PLATE
    TIMING PLATE
  • 21
    10-811188T BOLT, (M6 x 16)
    BOLT, (M6 x 16)
  • 22
    888302 PLATE
    PLATE
  • 23
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
  • -
    885225T07 POWERHEAD ASSEMBLY
    SN# 1B055687 & Below
    POWERHEAD ASSEMBLY
    SN# 1B055687 & Below
  • -
    885225T07 POWERHEAD ASSEMBLY
    SN# 1B055688 THRU 1B226999
    POWERHEAD ASSEMBLY
    SN# 1B055688 THRU 1B226999
  • -
    885225T07 POWERHEAD ASSEMBLY
    SN# 1B227000 & Up
    POWERHEAD ASSEMBLY
    SN# 1B227000 & Up
