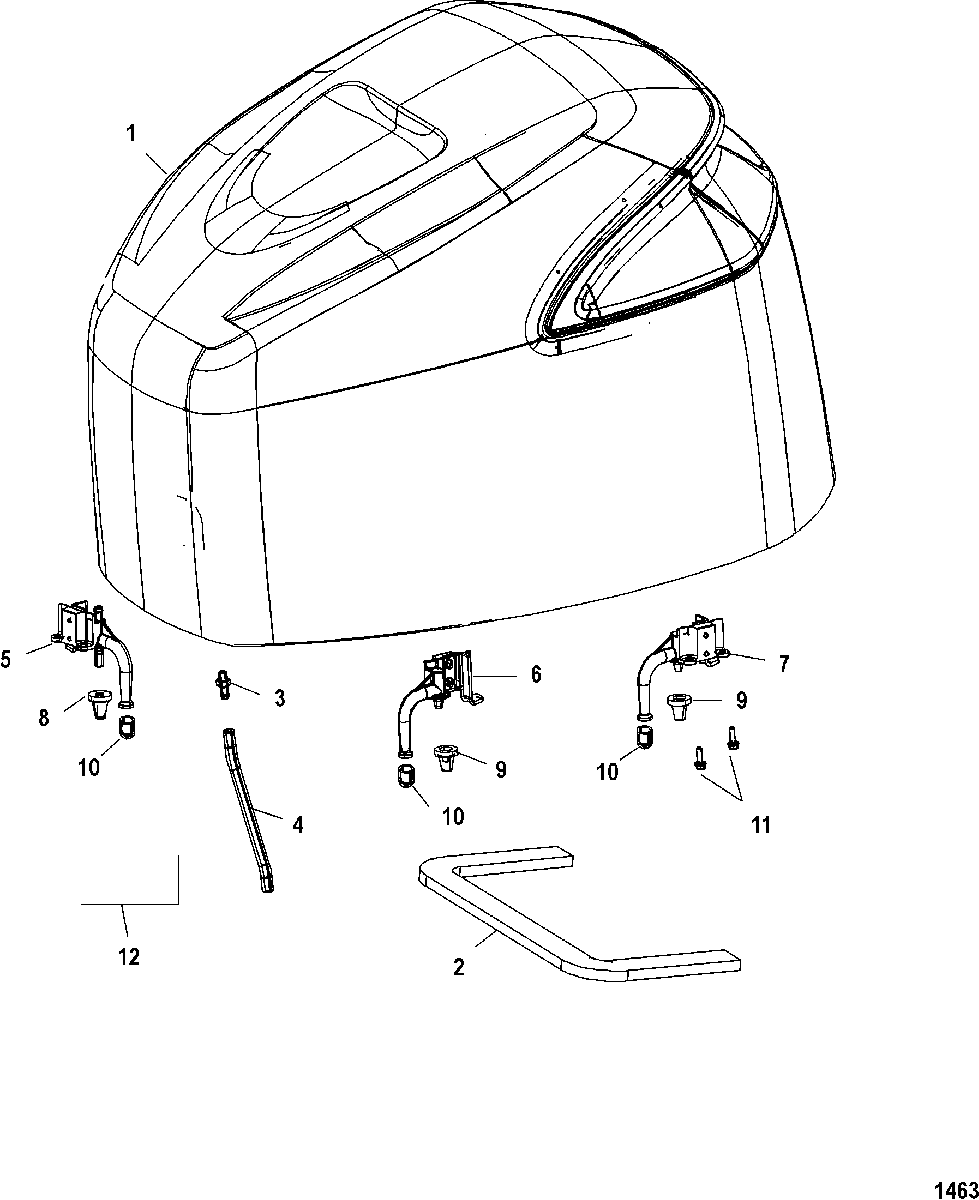

Top Cowl для Mariner - 225 EFI (4-STROKE) 0T653945 & Up

  • №
    Артикул
    Название
  • 1
    100-887913T02 TOP COWL ASSEMBLY
    TOP COWL ASSEMBLY
  • 2
    887962 FOAM
    FOAM
  • 3
    22-291112 FITTING
    FITTING
  • 4
    32-8M0108349 TUBING, (.312) (70.00 Inches Bulk) (Cut to 8 Inches)
    TUBING, (.312) (70.00 Inches Bulk) (Cut to 8 Inches)
  • 5
    887964A1 LATCH KIT (Front)
    LATCH KIT (Front)
  • 6
    887963A1 LATCH KIT (Starboard)
    LATCH KIT (Starboard)
  • 7
    887967A1 LATCH KIT (Port)
    LATCH KIT (Port)
  • 8
    887965 DAMPER (Front)
    DAMPER (Front)
  • 9
    887975 DAMPER (Starboard/Port)
    DAMPER (Starboard/Port)
  • 10
    881600 CAP, Rubber
    CAP, Rubber
  • 11
    10-8M4503518 SCREW, (M6 x 20) Stainless Steel
    SCREW, (M6 x 20) Stainless Steel
  • 12
    NSS NOT SOLD SEPARATE, Decal-Clean Cling-On
    NOT SOLD SEPARATE, Decal-Clean Cling-On
  • -
    98-8M0099558 DECAL SET
    (Mercury)
    DECAL SET
    (Mercury)
  • -
    37-8848751 DECAL, Wrap Around
    (Mariner)(Export Only)
    DECAL, Wrap Around
    (Mariner)(Export Only)
  • -
    37-8M0133054 DECAL, M Icon
    (Mariner)(Export Only)
    DECAL, M Icon
    (Mariner)(Export Only)
