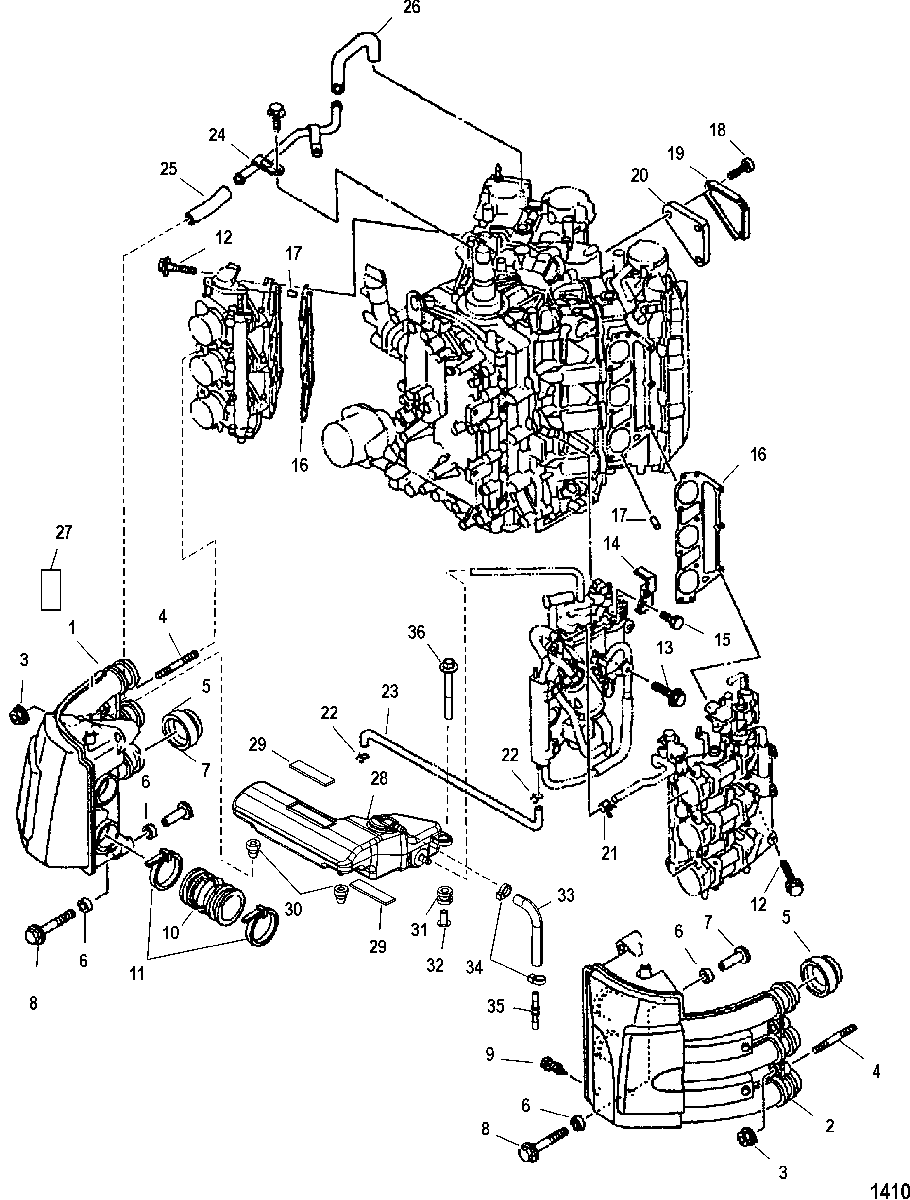

Intake Silencer для Mariner - 225 EFI (4-STROKE) 0T653945 & Up
-
№АртикулНазвание
-
1887896T SILENCER, Intake (Starboard)SILENCER, Intake (Starboard)
-
2887897T SILENCER, Intake (Port)SILENCER, Intake (Port)
-
311-8528162 NUTNUT
-
416-887889 STUDSTUD
-
526-887899 SEALSEAL
-
623-887900 BUSHINGBUSHING
-
723-888193 COLLARCOLLAR
-
810-888192 BOLTBOLT
-
9880882T THERMOSENSORTHERMOSENSOR
-
1032-887898 TUBETUBE
-
1154-827148M CLAMPCLAMP
-
1210-887894 BOLTBOLT
-
1310-887895 BOLTBOLT
-
14887887 PLATEPLATE
-
1510-887888 BOLTBOLT
-
1627-887893 GASKETGASKET
-
1717-804160 PINPIN
-
1810-8813511 SCREWSCREW
-
19887890 COVERCOVER
-
20887891 DAMPERDAMPER
-
2154-881530 CLIPCLIP
-
2254-98974M CLIPCLIP
-
2332-887892 HOSEHOSE
-
2432-888195 VENT PIPEVENT PIPE
-
2532-888196 HOSEHOSE
-
2632-888194 HOSEHOSE
-
2737-8272822 DECAL, Warning, High VoltageDECAL, Warning, High Voltage
-
28888494T1 VAPOR SEPARATOR ASSEMBLYVAPOR SEPARATOR ASSEMBLY
-
298M0043364 BUMPERBUMPER
-
3023-45354 BUSHINGBUSHING
-
3125-821555001 GROMMETGROMMET
-
3223-804344003 BUSHINGBUSHING
-
3332-8M0108355 HOSE, (57.00 Inches Bulk) (Cut to 26 Inches)HOSE, (57.00 Inches Bulk) (Cut to 26 Inches)
-
3454-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
3522-858955 CONNECTORCONNECTOR
-
3610-82130050 SCREW, (M6 x 50)SCREW, (M6 x 50)
-
-27-887810A03 GASKET SET, Powerhead
SN# 0T807875 & BelowGASKET SET, Powerhead
SN# 0T807875 & Below -
-27-887810A04 GASKET SET, Powerhead
SN# 0T807876 THRU 1B055687GASKET SET, Powerhead
SN# 0T807876 THRU 1B055687 -
-27-887810A05 GASKET SET, Powerhead
SN# 1B055688 & UpGASKET SET, Powerhead
SN# 1B055688 & Up
