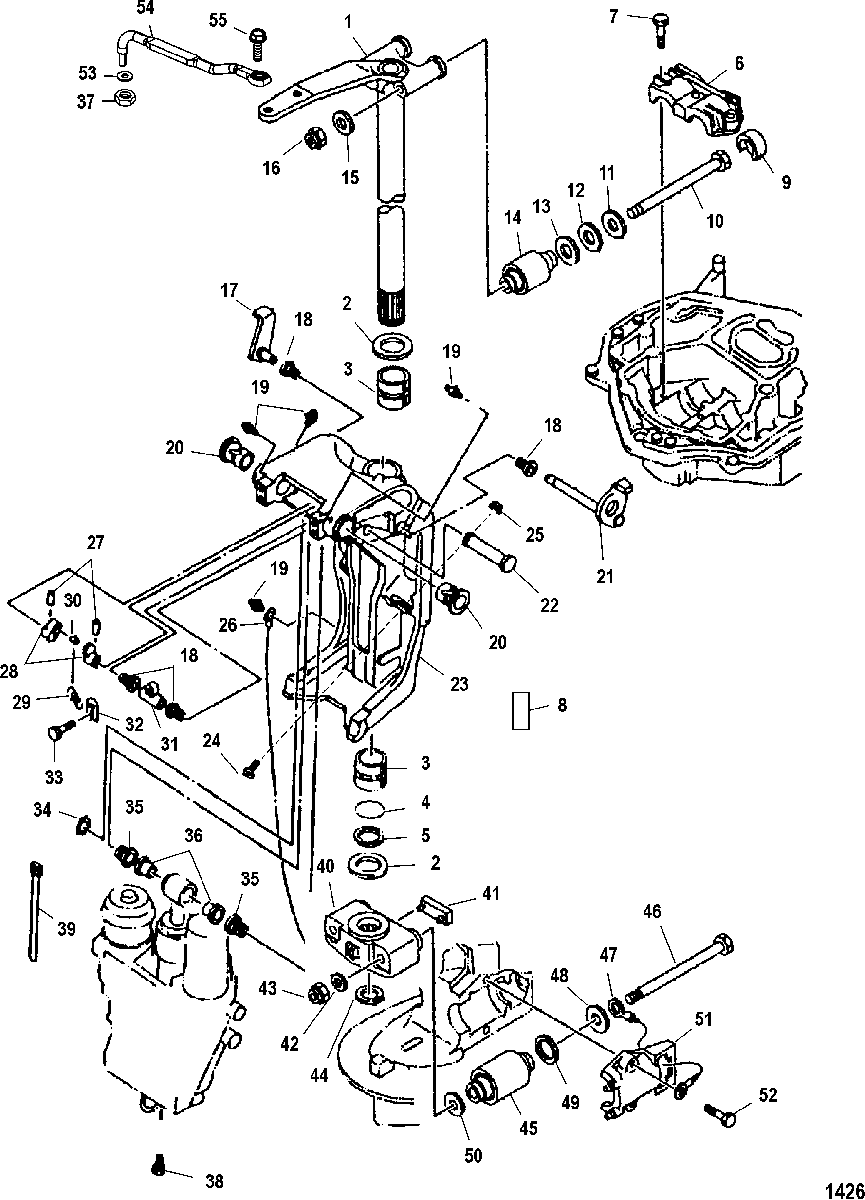

Swivel Bracket and Steering Arm для Mariner - 225 EFI (4-STROKE) 0T653945 & Up
-
№АртикулНазвание
-
117-888620T SWIVEL PIN ASSEMBLYSWIVEL PIN ASSEMBLY
-
212-8528037 WASHERWASHER
-
323-8883811 BUSHINGBUSHING
-
425-8269182 O-RINGO-RING
-
512-8883804 WASHERWASHER
-
6888625 COVERCOVER
-
710-888612 BOLTBOLT
-
8NSS NOT SOLD SEPARATE, Decal-Serial OverlaminateNOT SOLD SEPARATE, Decal-Serial Overlaminate
-
98886221 DAMPERDAMPER
-
1010-8M0075273 BOLT
SN# 1B055687 & BelowBOLT
SN# 1B055687 & Below -
1010-8M0075273 BOLT
SN# 1B055688 & UpBOLT
SN# 1B055688 & Up -
1112-8883809 WASHERWASHER
-
1212-88838010 WASHERWASHER
-
1312-88838011 WASHERWASHER
-
148886231 MOUNTMOUNT
-
1512-8883808 WASHERWASHER
-
1611-8528166 NUTNUT
-
178886141 LEVER, Tilt StopLEVER, Tilt Stop
-
1823-17074M BUSHINGBUSHING
-
1922-82369M FITTINGFITTING
-
2023-8883621 BUSHINGBUSHING
-
21888614 LEVER, Tilt StopLEVER, Tilt Stop
-
2217-19239M PINPIN
-
231499-888613T SWIVEL BRACKETSWIVEL BRACKET
-
2410-888618 BOLTBOLT
-
2511-888619 NUTNUT
-
2684-8886081 GROUND WIREGROUND WIRE
-
2717-8041601 PINPIN
-
28888615 COLLARCOLLAR
-
2924-8043941 SPRINGSPRING
-
3017-8250871 PINPIN
-
3123-8041161 COLLARCOLLAR
-
32888616 HOOK, SpringHOOK, Spring
-
3310-84088M SCREW, (M6 x 10)SCREW, (M6 x 10)
-
3453-8M0075279 RING, SnapRING, Snap
-
3523-85281411 BUSHINGBUSHING
-
3623-85281410 BUSHINGBUSHING
-
3711-8M0042636 NUT, (.375-24) Stainless SteelNUT, (.375-24) Stainless Steel
-
3810-8255011 BOLTBOLT
-
3956762 CLAMPCLAMP
-
40888621 YOKE, BottomYOKE, Bottom
-
41888622 DAMPERDAMPER
-
4212-8883808 WASHERWASHER
-
4311-8528166 NUTNUT
-
4453-8883831 CIRCLIPCIRCLIP
-
45888623 MOUNTMOUNT
-
4610-8M0059048 BOLT
SN# 1B055687 & BelowBOLT
SN# 1B055687 & Below -
4610-8M0059048 BOLT
SN# 1B055688 & UpBOLT
SN# 1B055688 & Up -
4784-8886082 GROUND WIREGROUND WIRE
-
4812-8883806 WASHERWASHER
-
4912-8883805 WASHERWASHER
-
5012-8883807 WASHERWASHER
-
51888624 HOUSINGHOUSING
-
5210-888612 BOLTBOLT
-
5312-37828 WASHER, (.390 x .625 x .062) Stainless SteelWASHER, (.390 x .625 x .062) Stainless Steel
-
5492876A12 LINK ROD ASSEMBLYLINK ROD ASSEMBLY
-
5510-856680 SCREW, (.375-24 x 1.62)SCREW, (.375-24 x 1.62)
