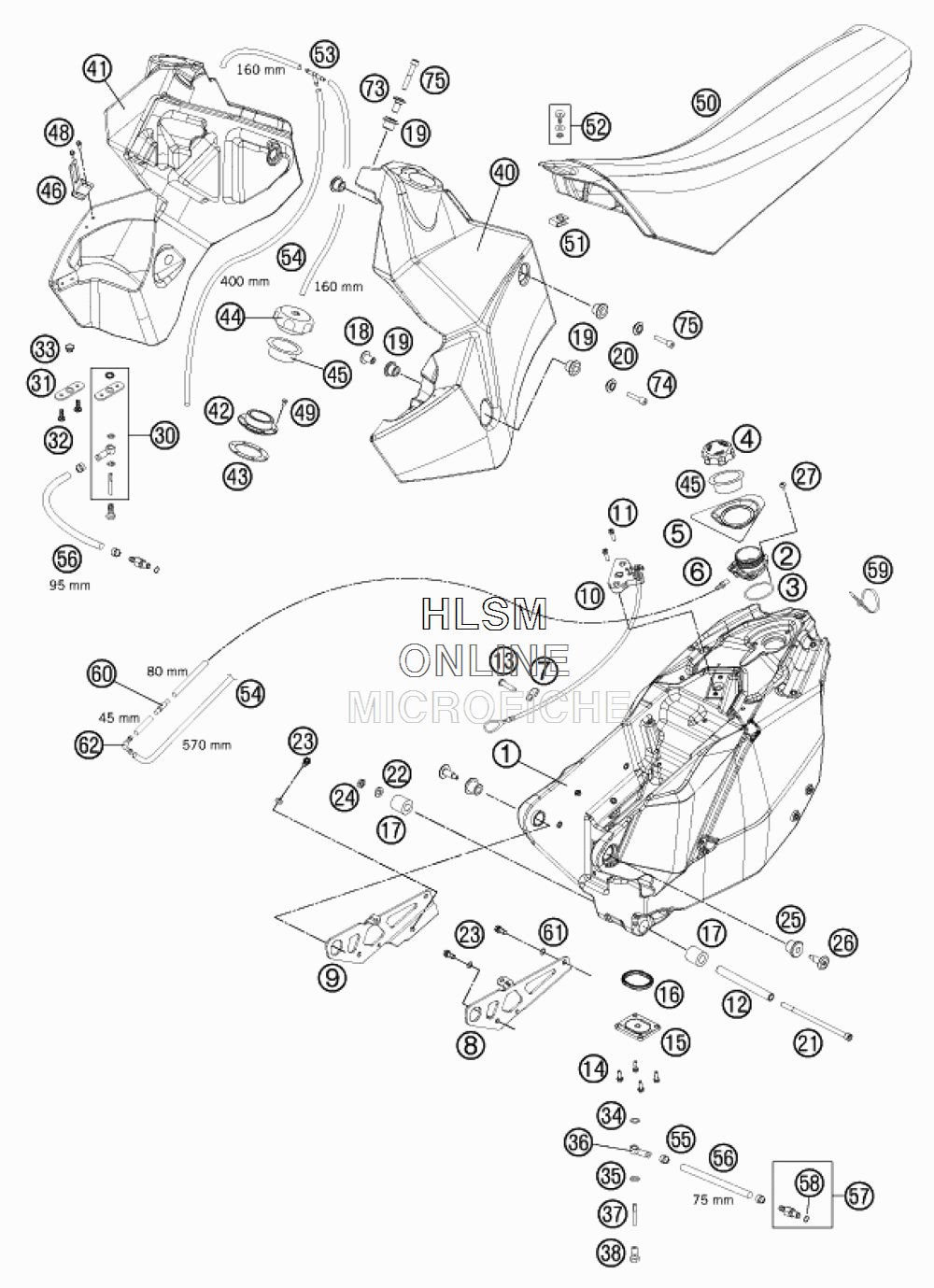

TANK SEAT для Ktm 450 RR - 2014 года выпуска
-
№АртикулНазвание
-
17630721300028A REAR TANK WHITEREAR TANK WHITE
-
276307008151 FLANGE PLUGFLANGE PLUG
-
30770050030 O-RING 50,00X3,00 VITONO-RING 50,00X3,00 VITON
-
476307008000 FILLER CAP TANKFILLER CAP TANK
-
576307008152 COVER TANKCOVER TANK
-
658336020090 VACUUM CONNECTION M 6X1VACUUM CONNECTION M 6X1
-
776507053000 CLAMP F. CABLE SEAT LOCKCLAMP F. CABLE SEAT LOCK
-
876307027000 SUPPORT REARTANK LEFTSUPPORT REARTANK LEFT
-
976307028000 SUPPORT REARTANK RIGHTSUPPORT REARTANK RIGHT
-
1076507050000 SEAT LOCKSEAT LOCK
-
110991060202 FLAT HEAD DIN7991-M 6X20FLAT HEAD DIN7991-M 6X20
-
1276307061000 BEARING BUSHING DOWNBEARING BUSHING DOWN
-
130985040163 FLAT HEAD SCREW DIN7985-M 4X16FLAT HEAD SCREW DIN7985-M 4X16
-
140025050166 HH COLLAR SCREW M5X16 TX30HH COLLAR SCREW M5X16 TX30
-
1576307081010 PLATE TANKFILTERPLATE TANKFILTER
-
1675007089001 MOLDED RINGMOLDED RING
-
1776507065100 RUBBER BUSHING 11,7X24,7 L=26RUBBER BUSHING 11,7X24,7 L=26
-
1858512063000 BUSHING SLEEVE IN.34MMBUSHING SLEEVE IN.34MM
-
1956401040000 RUBBER BUSHINGRUBBER BUSHING
-
2058512062000 BUSHING SLEEVE OUTBUSHING SLEEVE OUT
-
210912081403 AH SCREW DIN0912-M 8X140AH SCREW DIN0912-M 8X140
-
220125080003 WASHER DIN0125-A 8,4WASHER DIN0125-A 8,4
-
230025080166 HH COLLAR SCREW M8X16 TX40HH COLLAR SCREW M8X16 TX40
-
240985080003 SELF LOCKING NUT DIN0985-M 8SELF LOCKING NUT DIN0985-M 8
-
2576507066000 RUBB.BEAR.BOX 12X24X35 L=24,5RUBB.BEAR.BOX 12X24X35 L=24,5
-
2676507060000 BEARING BUSHING UPBEARING BUSHING UP
-
2778105081010 SCREW TORX M5X10SCREW TORX M5X10
-
3058507008000 FUEL CONNECTION CPL.FUEL CONNECTION CPL.
-
3158507008050 FUEL FLANGE SHEETFUEL FLANGE SHEET
-
320991050102 FLAT H.SCEW DIN7991-M5X10 10.9FLAT H.SCEW DIN7991-M5X10 10.9
-
330770120020 O-RING 12,00X2,00 NBR 70O-RING 12,00X2,00 NBR 70
-
340603101420 COPPER GASKET 10,2X14X2 MMCOPPER GASKET 10,2X14X2 MM
-
3542013226000 CU-SEAL RING DIN7603-10X16X1CU-SEAL RING DIN7603-10X16X1
-
3649138493000 RING COMPONENT 10/6MMRING COMPONENT 10/6MM
-
3758507008010 FUEL FLANGE-STRAINERFUEL FLANGE-STRAINER
-
3858507025000 HOLLOW SCREW M10X1X24 RALLYHOLLOW SCREW M10X1X24 RALLY
-
407630701300028A FUEL TANK CPL. FRONT L/SFUEL TANK CPL. FRONT L/S
-
417630711300028A FUEL TANK CPL. FRONT R/SFUEL TANK CPL. FRONT R/S
-
4276207013007 FRONT FUEL TANK FILLERFRONT FUEL TANK FILLER
-
4376207013006 VITON SEAL FOR FRONT TANKVITON SEAL FOR FRONT TANK
-
44SXS03540700 * SXS FUEL TANK CAP* SXS FUEL TANK CAP
-
4559007009000 GASKET FOR FILLER CAP HIGHGASKET FOR FILLER CAP HIGH
-
4676307013003 BRACKET FOR FRONT MASKBRACKET FOR FRONT MASK
-
480025050106 COLLAR SCREW M5X12 ISA30COLLAR SCREW M5X12 ISA30
-
490965040123 FLAT HEAD SCREW DIN0965-M 4X12FLAT HEAD SCREW DIN0965-M 4X12
-
5076307040000 SEAT RALLYSEAT RALLY
-
5158307040552 CLIPCLIP
-
5258307040551 QUICK RELEASE CPL.QUICK RELEASE CPL.
-
5358007015000 T-CONNECTOR FOR FUEL LINET-CONNECTOR FOR FUEL LINE
-
5458507007001 HOSE 8X5MM RALLYEHOSE 8X5MM RALLYE
-
5558007117200 OETIKER HOSE CLAMP 13,3MMOETIKER HOSE CLAMP 13,3MM
-
5658507116100 HOSE OG.ECO 1TBSE 7X13MMHOSE OG.ECO 1TBSE 7X13MM
-
575850701030030 PLUG CPC BLACKPLUG CPC BLACK
-
5858507012000 O-RING VITON F. PLUG CPCO-RING VITON F. PLUG CPC
-
5944011076140 CABLE TIE 140/2,5MM BLACKCABLE TIE 140/2,5MM BLACK
-
6076307008055 VALVE FOR TANK BREATHINGVALVE FOR TANK BREATHING
-
6136003014000 LOCK WASHER 8MMLOCK WASHER 8MM
-
6276307029000 ANGLE PIECEANGLE PIECE
-
7360007060000 BEARING BUSHING OUTSIDEBEARING BUSHING OUTSIDE
-
740912080553 AH SCREW DIN912 M8X55AH SCREW DIN912 M8X55
-
750912080403 AH SCREW DIN912 M8X40AH SCREW DIN912 M8X40
