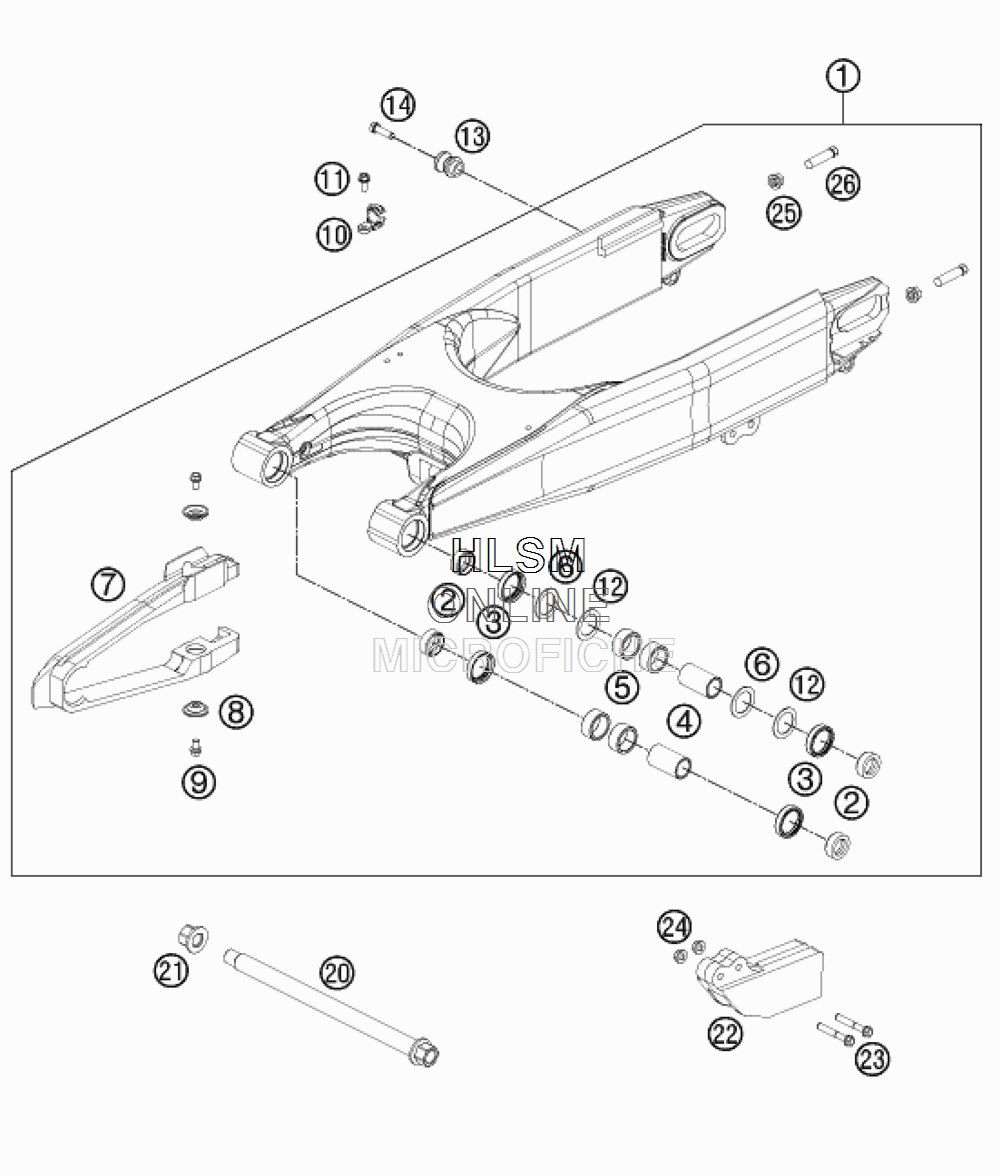

SWING ARM для Ktm 450 RR - 2014 года выпуска

№

Артикул

Название
1

76204030044 SWINGARM RALLY CPL.

SWINGARM RALLY CPL.

0 ₽
2

76204034000 SPACER F. SHAFT SEALRING

SPACER F. SHAFT SEALRING

0 ₽
3

0760253270 SHAFT SEAL RING 25X32X7

SHAFT SEAL RING 25X32X7

1 610 ₽
4

59404032000 BEARING SLEEVE 17X22X38,7

BEARING SLEEVE 17X22X38,7

2 330 ₽
5

0618222812 NEEDLEBEAR HK2212V 22/28/12 MB

NEEDLEBEAR HK2212V 22/28/12 MB

2 490 ₽
6

76203037100 STOP DISK 22X32X1,0

STOP DISK 22X32X1,0

0 ₽
7

50304066100 CHAIN GUARD

CHAIN GUARD

5 600 ₽
8

72210079000 BUCKET

BUCKET

680 ₽
9

0025060106 HH COLLAR SCREW M6X10 TX30

HH COLLAR SCREW M6X10 TX30

500 ₽
10

54611076100 RETAIN.CLAMP FOR BRAKE HOSE

RETAIN.CLAMP FOR BRAKE HOSE

350 ₽
11

0010050103 SPECIAL SCREW M 5,0X10

SPECIAL SCREW M 5,0X10

290 ₽
12

76203037000 STOP DISK 22,2X31,7X0,5

STOP DISK 22,2X31,7X0,5

0 ₽
13

R0610089000 SUPPORT F. LIFTING DEVICE

SUPPORT F. LIFTING DEVICE

0 ₽
14

0032100356S AH-COLLAR SCREW M10X35 ISA45

AH-COLLAR SCREW M10X35 ISA45

880 ₽
20

76204037044 SWINGARM BOLT CPL.

SWINGARM BOLT CPL.

0 ₽
21

54603015000 SELF LOCKING NUT M14X1,5 WS=19

SELF LOCKING NUT M14X1,5 WS=19

1 340 ₽
22

54607066100 CHAIN GUIDE REAR

CHAIN GUIDE REAR

6 600 ₽
23

0025060406 HH COLLAR SCREW M6X40 TX30

HH COLLAR SCREW M6X40 TX30

500 ₽
24

56509064100 SELF LOCKING NUT M6 10.9

SELF LOCKING NUT M6 10.9

320 ₽
25

58414030000 HH COLLAR NUT M10X1,25 WS=13

HH COLLAR NUT M10X1,25 WS=13

350 ₽
26

50304040100 SCREW M10X1,25X50 WS=10

SCREW M10X1,25X50 WS=10

1 000 ₽
