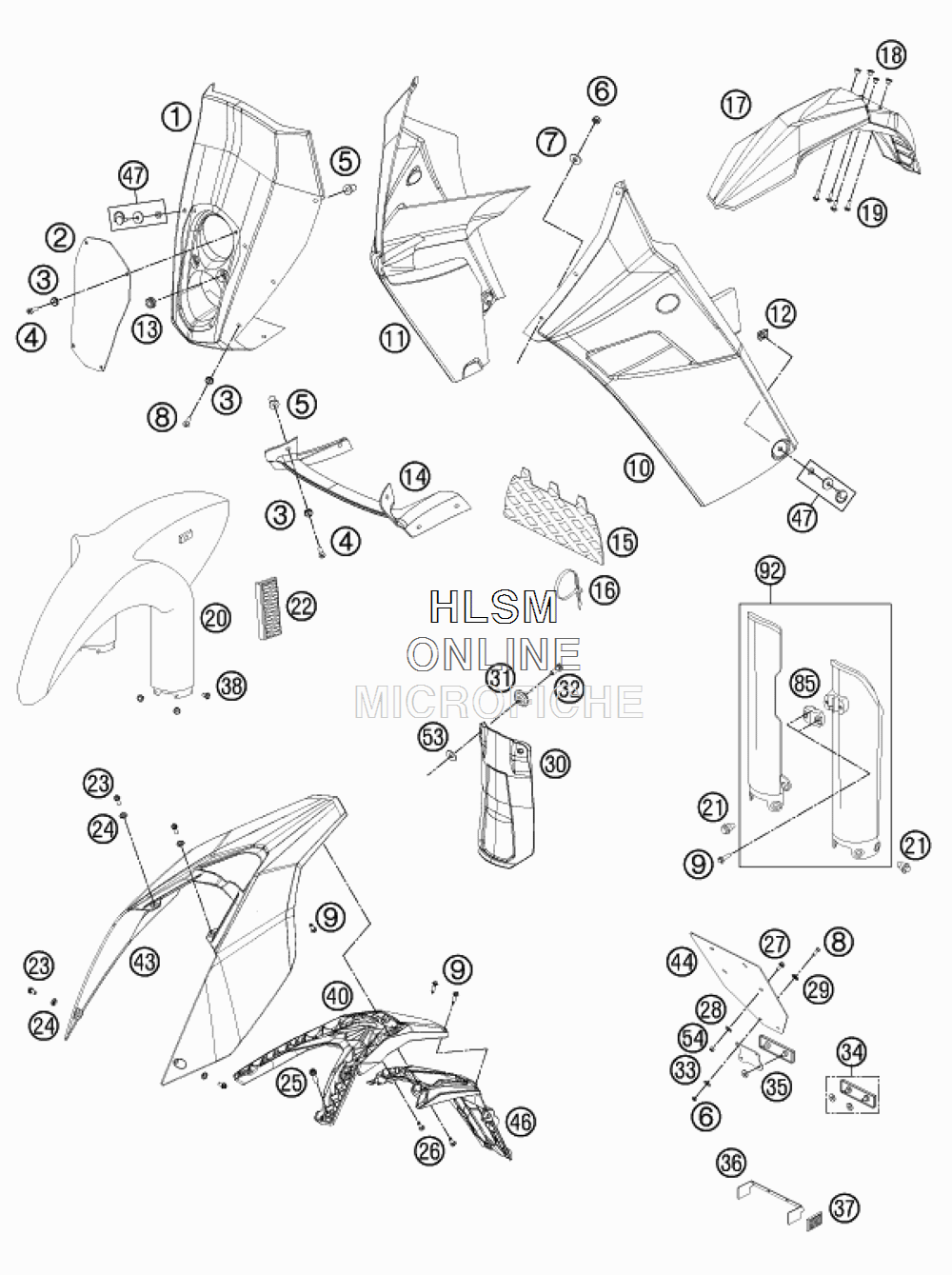

MASK FENDERS для Ktm 450 RR - 2014 года выпуска
-
№АртикулНазвание
-
17621100400028A HEADLIGHT MASK WHITEHEADLIGHT MASK WHITE
-
276214010020 HEADLIGHT PANE FRONT MASKHEADLIGHT PANE FRONT MASK
-
360008046000 SPECIAL WASHER D=12MMSPECIAL WASHER D=12MM
-
40966050208 O.H.SCREW DIN0966-M 5X20 BLACKO.H.SCREW DIN0966-M 5X20 BLACK
-
560008008050 BLIND PLUG-IN NUT M5 WN 16ABLIND PLUG-IN NUT M5 WN 16A
-
60985050003 SELF LOCKING NUT DIN0985-M 5SELF LOCKING NUT DIN0985-M 5
-
70021050003 WASHER DIN9021-A 5,3WASHER DIN9021-A 5,3
-
80966050163 OVAL HEAD SCREW DIN0966-M 5X16OVAL HEAD SCREW DIN0966-M 5X16
-
90017060203 EJOT PT SCREW K60X20 WS=6EJOT PT SCREW K60X20 WS=6
-
107631100300028A FRONT MASK L/S WHITEFRONT MASK L/S WHITE
-
117631100200028A FRONT MASK R/S WHITEFRONT MASK R/S WHITE
-
1245007040052 CLIPCLIP
-
1331008060000 RUBBER SLEEVE D=8MM OPENRUBBER SLEEVE D=8MM OPEN
-
147631100402028A AIR BAFFLE RALLYAIR BAFFLE RALLY
-
1576211004030 OIL RADIATOR GRIDOIL RADIATOR GRID
-
1644011076140 CABLE TIE 140/2,5MM BLACKCABLE TIE 140/2,5MM BLACK
-
1676311093200 CABLE TIE 200MMCABLE TIE 200MM
-
177730821000028 FRONT FENDER WHITEFRONT FENDER WHITE
-
1854808020000 SPACER BUSHINGSPACER BUSHING
-
190024060206 HH COLLAR SCREW M6X20 TX30HH COLLAR SCREW M6X20 TX30
-
205850801020028A FRONT FENDER RALLYEFRONT FENDER RALLYE
-
2159001092050 SPECIAL SCREW M6X12,5 WS=8SPECIAL SCREW M6X12,5 WS=8
-
2258412080100 REFLECTOR YELLOWREFLECTOR YELLOW
-
230025060126 HH COLLAR SCREW M6X12 TX30HH COLLAR SCREW M6X12 TX30
-
2476508043050 COLLAR BUSHINGCOLLAR BUSHING
-
250025080256 HH COLLAR SCREW M8X25 TX40HH COLLAR SCREW M8X25 TX40
-
260017060303 SPECIAL SCREW T60 6X30 WS=6SPECIAL SCREW T60 6X30 WS=6
-
270024060156 HH COLLAR SCREW M6X15 TX30HH COLLAR SCREW M6X15 TX30
-
280125060003 WASHER DIN0125-A 6,4WASHER DIN0125-A 6,4
-
2940006006000 WASHER 6MMWASHER 6MM
-
3076506010000 SPLASHBACKSPLASHBACK
-
3172210079000 BUCKETBUCKET
-
320025060166 HH COLLAR SCREW M6X16 TX30HH COLLAR SCREW M6X16 TX30
-
330125050003 WASHER DIN0125-A 5,3WASHER DIN0125-A 5,3
-
3458412080000 REFLECTOR RED LC4REFLECTOR RED LC4
-
3558412080050 BRACKET FOR REFLECTORBRACKET FOR REFLECTOR
-
3662512081000 BRACKET SIDE REFLECTORBRACKET SIDE REFLECTOR
-
3716512180100 SIDE REFLECTOR RED REARSIDE REFLECTOR RED REAR
-
380024060106 HH COLLAR SCREW M6X10 TX30HH COLLAR SCREW M6X10 TX30
-
4076508016000 NUMBER PLATE CARRIER TOPNUMBER PLATE CARRIER TOP
-
437650801300028 REAR PART WHITEREAR PART WHITE
-
4460012081200 LICENCE FITTINGLICENCE FITTING
-
4676508016050 NUMBER PLATE LO. PARTNUMBER PLATE LO. PART
-
4745007040051 QUICK RELEASE CPL.QUICK RELEASE CPL.
-
530021060003 WASHER DIN9021-A 6,4WASHER DIN9021-A 6,4
-
540985060003 SELF LOCK. NUT DIN0985-M 6SELF LOCK. NUT DIN0985-M 6
-
8559001085100 CLAMP F.SPEED.CABLE D=6MMCLAMP F.SPEED.CABLE D=6MM
-
925900109410030 FORK PROT. L/S+R/S BLACKFORK PROT. L/S+R/S BLACK
