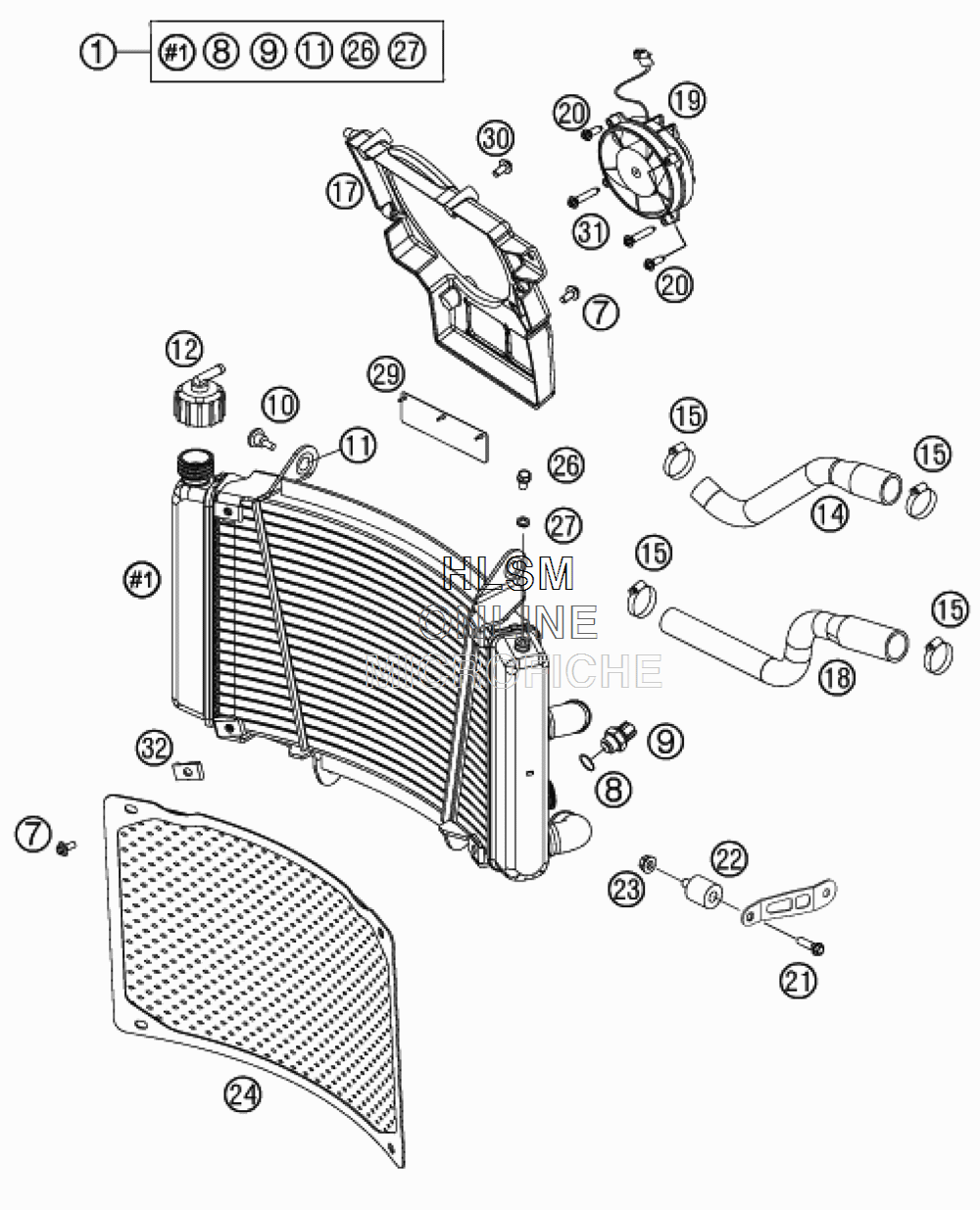

COOLING SYSTEM для Ktm 450 RR - 2014 года выпуска

  • №
    Артикул
    Название
  • 1
    76235010000 RADIATOR "VW 1182"
    RADIATOR "VW 1182"
  • 7
    0024060136 HH COLLAR SCREW M6X13 TX30
    HH COLLAR SCREW M6X13 TX30
  • 8
    0770017015 O-RING 17X1,5 NB75
    O-RING 17X1,5 NB75
  • 9
    58035045000 THERMOSWITCH 80-85 DG
    THERMOSWITCH 80-85 DG
  • 10
    60035001000 SPECIAL SCREW M6X21 WS=8
    SPECIAL SCREW M6X21 WS=8
  • 11
    41001052000 RUBBER SLEEVE D=12MM
    RUBBER SLEEVE D=12MM
  • 12
    62535009000 RADIATOR CAP 1,4 BAR
    RADIATOR CAP 1,4 BAR
  • 14
    76335026000 RADIATOR HOSE 1
    RADIATOR HOSE 1
  • 15
    76235028000 HOSE CLAMP GEMI 20-32 MM
    HOSE CLAMP GEMI 20-32 MM
  • 17
    76235044000 FAN COWL
    FAN COWL
  • 18
    76335026001 RADIATOR HOSE 2
    RADIATOR HOSE 2
  • 19
    60035041000 FAN L/S
    FAN L/S
  • 20
    0017060203 EJOT PT SCREW K60X20 WS=6
    EJOT PT SCREW K60X20 WS=6
  • 21
    0024060106 HH COLLAR SCREW M6X10 TX30
    HH COLLAR SCREW M6X10 TX30
  • 22
    43205062100 RUBBER GROMMET 20X15-M6X10 (1)
    RUBBER GROMMET 20X15-M6X10 (1)
  • 23
    0985060003 SELF LOCK. NUT DIN0985-M 6
    SELF LOCK. NUT DIN0985-M 6
  • 24
    76235034044 RADIATOR PROTECTOR
    RADIATOR PROTECTOR
  • 26
    0025060106 HH COLLAR SCREW M6X10 TX30
    HH COLLAR SCREW M6X10 TX30
  • 27
    60035048000 ALU-GASKET 6X10X1.5
    ALU-GASKET 6X10X1.5
  • 29
    62635044050 FAN CLACK RUBBER
    FAN CLACK RUBBER
  • 30
    0024060156 HH COLLAR SCREW M6X15 TX30
    HH COLLAR SCREW M6X15 TX30
  • 31
    0017060303 SPECIAL SCREW T60 6X30 WS=6
    SPECIAL SCREW T60 6X30 WS=6
  • 32
    54603048100 RANGE CHANGE METAL NUT M6
    RANGE CHANGE METAL NUT M6
