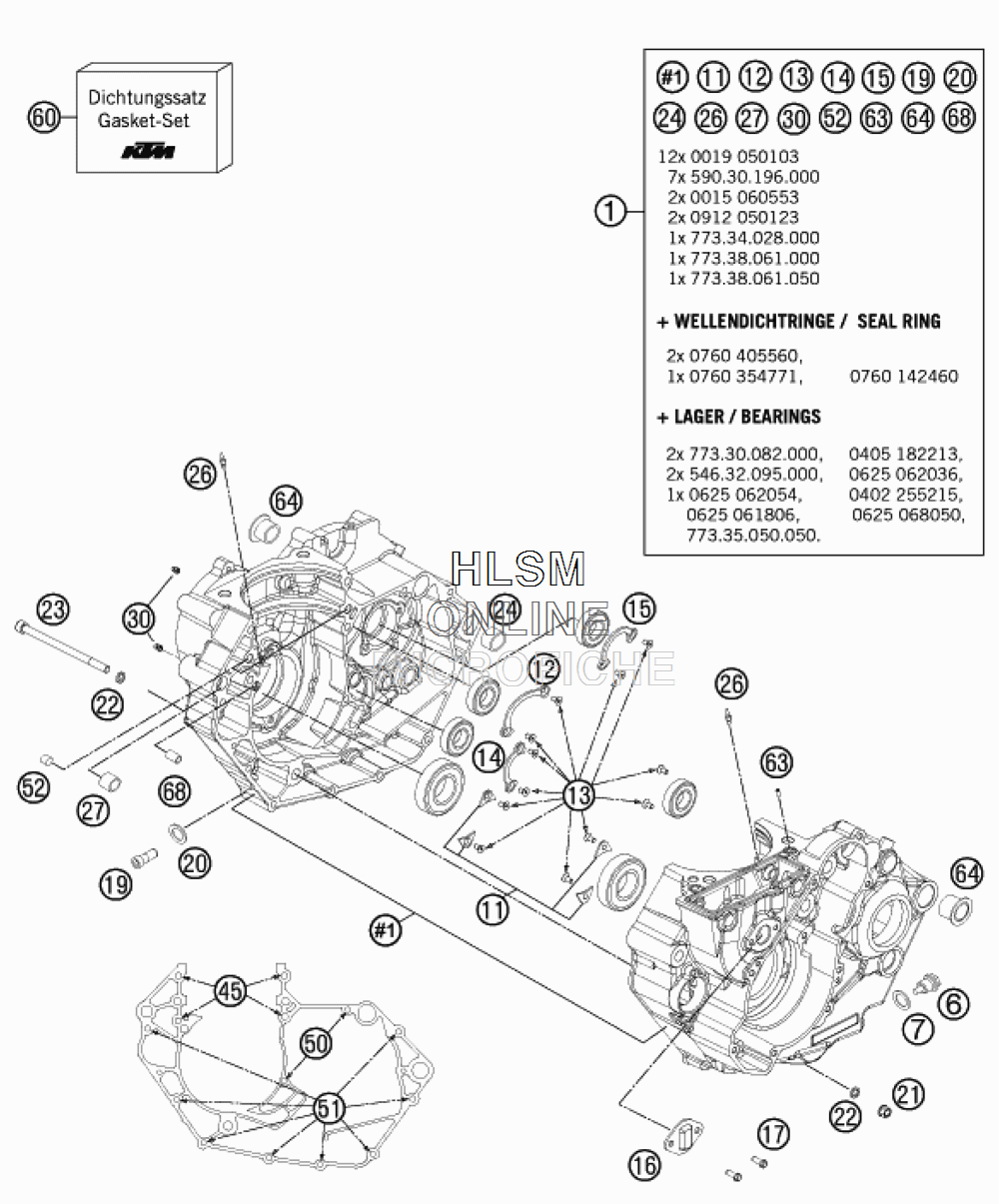

ENGINE CASE для Ktm 450 RR - 2014 года выпуска
-
№АртикулНазвание
-
176330000044 ENGINE CASE CPL. W.TR.BEAR.ENGINE CASE CPL. W.TR.BEAR.
-
658030021000 OILDRAIN PLUG W.MAG. M 12X1,5OILDRAIN PLUG W.MAG. M 12X1,5
-
758038022000 CU-SEAL RING DIN7603-12X18X1,5CU-SEAL RING DIN7603-12X18X1,5
-
1177330085000 BUSHING RETAINING PLATEBUSHING RETAINING PLATE
-
1277333022100 BUSHING RETAINING PLATEBUSHING RETAINING PLATE
-
130019050106 INT. TORX FLAT HEAD M5X10 10.9INT. TORX FLAT HEAD M5X10 10.9
-
1477334090000 BUSHING RETAINING PLATEBUSHING RETAINING PLATE
-
1577333024100 BUSHING RETAINING PLATEBUSHING RETAINING PLATE
-
16SXS07450245 SXS FACTORY RETAINING PLATESXS FACTORY RETAINING PLATE
-
170025050106 COLLAR SCREW M5X12 ISA30COLLAR SCREW M5X12 ISA30
-
190012080203 AH SCREW DIN6912-M 8X20AH SCREW DIN6912-M 8X20
-
200603082121 SEAL RING CU DIN7603- 8X12X1SEAL RING CU DIN7603- 8X12X1
-
2154630044000 COLLAR NUT M10 WS=13COLLAR NUT M10 WS=13
-
2250233041100 PAIR OF WASHERS M10 NORDLOCKPAIR OF WASHERS M10 NORDLOCK
-
2377203014000 ENGINE BRAC.SCR. M10X115ENGINE BRAC.SCR. M10X115
-
2459030024000 DOWEL 17 X 19 X 12DOWEL 17 X 19 X 12
-
2660030064070 OIL JET 70 M6X0,75 WS8OIL JET 70 M6X0,75 WS8
-
2754630027000 DOWEL BUSHING 13,8X11X12DOWEL BUSHING 13,8X11X12
-
3059030058000 JET 100 BING(44-031/180) M4JET 100 BING(44-031/180) M4
-
4577330067170 SCREW M7-1,0X70SCREW M7-1,0X70
-
500025060706 HH COLLAR SCREW M6X70 TX30HH COLLAR SCREW M6X70 TX30
-
510025060556 HH COLLAR SCREW M6X55 TX30HH COLLAR SCREW M6X55 TX30
-
520402080120 CYLINDER ROLLER ZRO. 8,0X12 M4CYLINDER ROLLER ZRO. 8,0X12 M4
-
6077330099000 GASKET SETGASKET SET
-
6377338029052 THROTTLE M5X10X1THROTTLE M5X10X1
-
6476330010000 CASE BUSHCASE BUSH
-
6859030023000 DOWEL 6X8X11,5DOWEL 6X8X11,5
