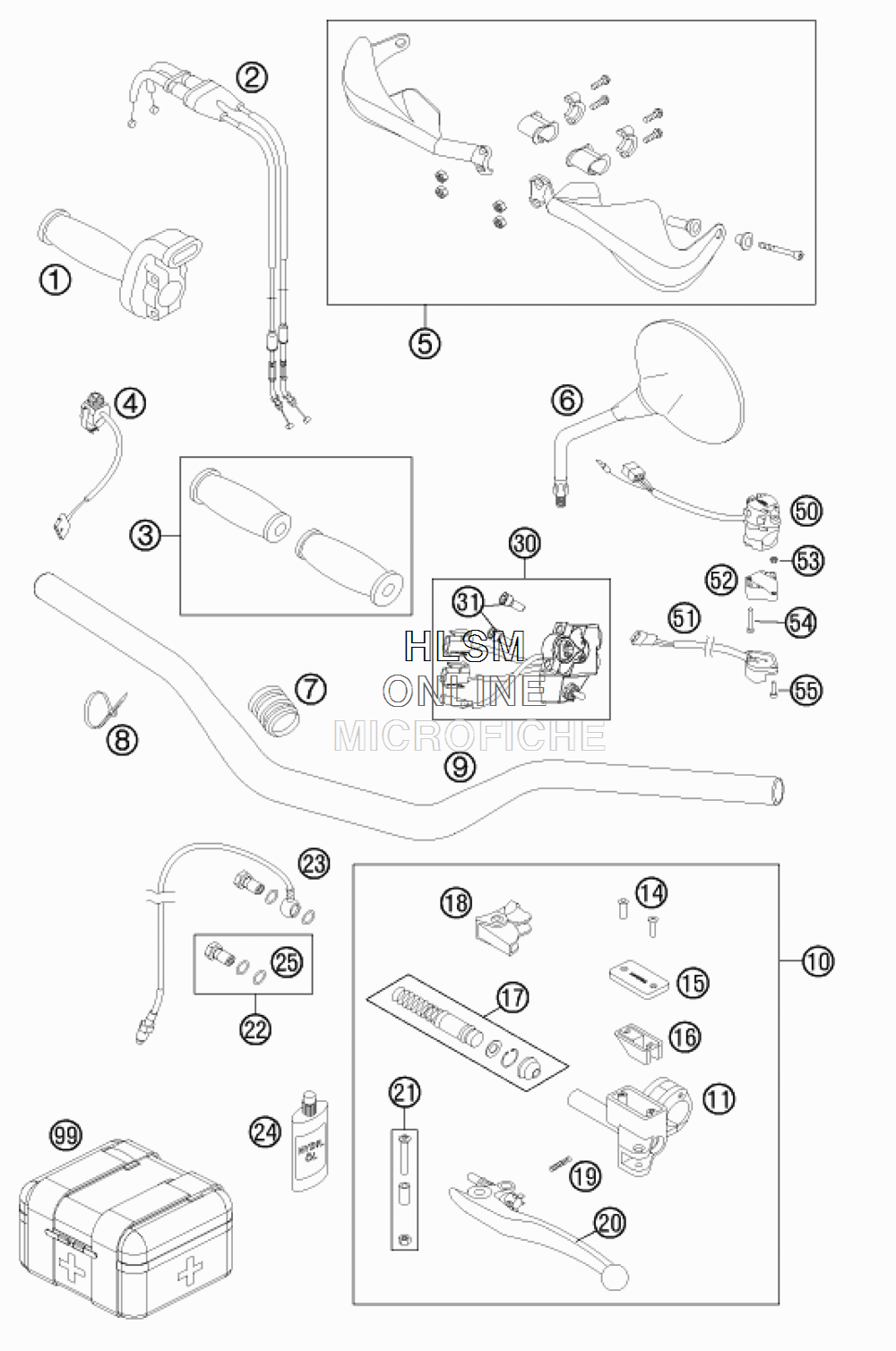

HANDLEBAR CONTROLS для Ktm 450 RR - 2014 года выпуска

  • №
    Артикул
    Название
  • 1
    58502010000 THROTTLE GRIP
    THROTTLE GRIP
  • 2
    77302091200 THROTTLE CABLE 4T.
    THROTTLE CABLE 4T.
  • 3
    58502139044 RUBBER GR. PRO GRIP
    RUBBER GR. PRO GRIP
  • 4
    63011074000 STARTER BUTTON
    STARTER BUTTON
  • 5
    6030217900030 HANDGUARDS CLOSED BLACK
    HANDGUARDS CLOSED BLACK
  • 6
    58412040100 REAR MIRROR L/S+R/S LC4
    REAR MIRROR L/S+R/S LC4
  • 7
    54605057000 RUBBER SLEEVE D=21MM/23MM
    RUBBER SLEEVE D=21MM/23MM
  • 8
    44011076200 CABLE TIE 200/3,6MM BLACK
    CABLE TIE 200/3,6MM BLACK
  • 9
    59002001000 HANDLEBAR 28MM HIGH
    HANDLEBAR 28MM HIGH
  • 10
    54602030000 MASTER CYLINDER CPL.
    MASTER CYLINDER CPL.
  • 11
    50302030150 CLAMP WITH PIN
    CLAMP WITH PIN
  • 14
    0965040123 FLAT HEAD SCREW DIN0965-M 4X12
    FLAT HEAD SCREW DIN0965-M 4X12
  • 15
    50302033100 COVER HYD.CLUTCH 2T
    COVER HYD.CLUTCH 2T
  • 16
    50302034000 RUBBER FOR RESERVOIR
    RUBBER FOR RESERVOIR
  • 17
    50302032000 REP.SET PISTON MAGURA D=10.5
    REP.SET PISTON MAGURA D=10.5
  • 18
    50302037000 PROTECT.CAP FOR LEVER PERCH
    PROTECT.CAP FOR LEVER PERCH
  • 19
    59002035000 SPRING FOR CLUTCH LEVER
    SPRING FOR CLUTCH LEVER
  • 20
    54602031000 CLUTCH LEVER SHORT CPL.
    CLUTCH LEVER SHORT CPL.
  • 21
    50302038000 LEVER SCREW CPL.
    LEVER SCREW CPL.
  • 22
    59032062000 HOLLOW SCREW + COPPER GASKET
    HOLLOW SCREW + COPPER GASKET
  • 23
    76332063000 CLUTCH PIPE 450 RALLY
    CLUTCH PIPE 450 RALLY
  • 24
    50302036200 OIL FOR HYD. CLUTCH 100 ML
    OIL FOR HYD. CLUTCH 100 ML
  • 25
    59413013050 COPPER GASKET
    COPPER GASKET
  • 30
    76212175044 ROADBOOK SWITCH CPL.
    ROADBOOK SWITCH CPL.
  • 31
    0912060163 AH SCREW DIN0912-M 6X16
    AH SCREW DIN0912-M 6X16
  • 50
    50311070000 H.LIGHT SWITCH CEV 2/4TAKT
    H.LIGHT SWITCH CEV 2/4TAKT
  • 51
    50311029000 FLASHER SWITCH CEV
    FLASHER SWITCH CEV
  • 52
    13011070060 ADAPTER FOR FLASHER SWITCH
    ADAPTER FOR FLASHER SWITCH
  • 53
    0934040003 HEXAGON NUT DIN0934-M 4
    HEXAGON NUT DIN0934-M 4
  • 54
    0084040223 CYL.HEAD SCREW DIN0084-M 4X22A
    CYL.HEAD SCREW DIN0084-M 4X22A
  • 55
    0985040163 FLAT HEAD SCREW DIN7985-M 4X16
    FLAT HEAD SCREW DIN7985-M 4X16
  • 99
    76212002000 FIRST AID CASE
    FIRST AID CASE
