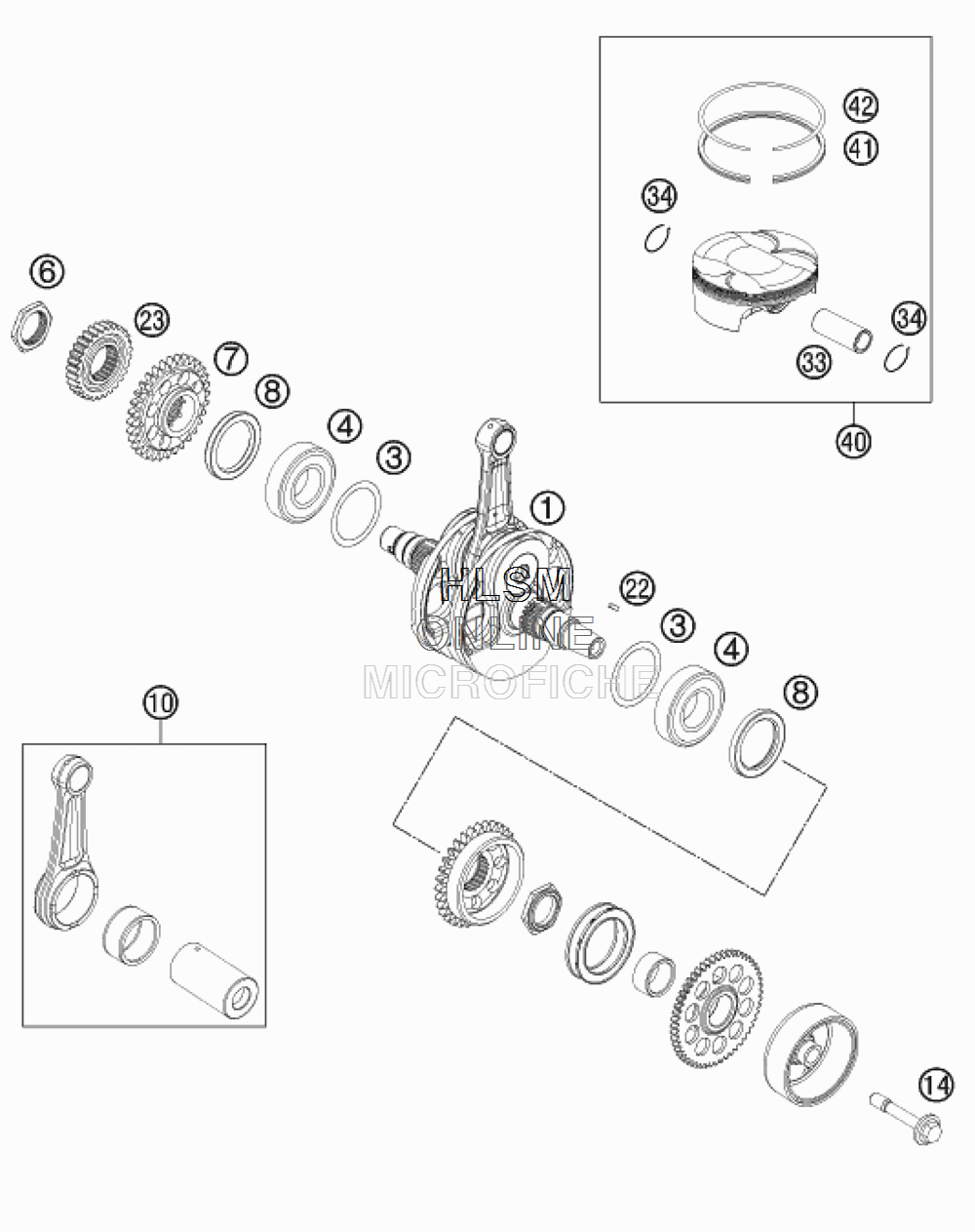

CRANKSHAFT PISTON для Ktm 450 RR - 2014 года выпуска
-
№АртикулНазвание
-
177330018000M03 CRANKSHAFT CPL.CRANKSHAFT CPL.
-
30988304201 THRUST WASHER 30X42X0,1THRUST WASHER 30X42X0,1
-
30988304202 THRUST WASHER 30X42X0,2THRUST WASHER 30X42X0,2
-
30988304203 THRUST WASHER 30X42X0,3THRUST WASHER 30X42X0,3
-
476330082100 BEARING NJ_206_ECP_HN3C3HVA62BEARING NJ_206_ECP_HN3C3HVA62
-
677330029000 COLLAR NUT M27X1COLLAR NUT M27X1
-
777330055110 DRIVE WHEEL AGZR KS Z=32DRIVE WHEEL AGZR KS Z=32
-
80760405560 SHAFT SEAL RING A40X55X6 VITONSHAFT SEAL RING A40X55X6 VITON
-
1076330015144 CONNECTING ROD REPAIR SETCONNECTING ROD REPAIR SET
-
1477339010100 FLYWHEEL SCREWFLYWHEEL SCREW
-
220888030037 WOODRUFF KEY DIN6888-3X3,7WOODRUFF KEY DIN6888-3X3,7
-
2377332023129 PRIMARY GEARPRIMARY GEAR
-
3377330033000M06 PISTON PINPISTON PIN
-
3477330074000M06 CIRCLIPCIRCLIP
-
4077330007000M06 PISTON CPL. D=97MMPISTON CPL. D=97MM
-
4177330032000M06 OIL SCRAPER RINGOIL SCRAPER RING
-
4277330030000M06 COMPRESSIONRINGCOMPRESSIONRING
