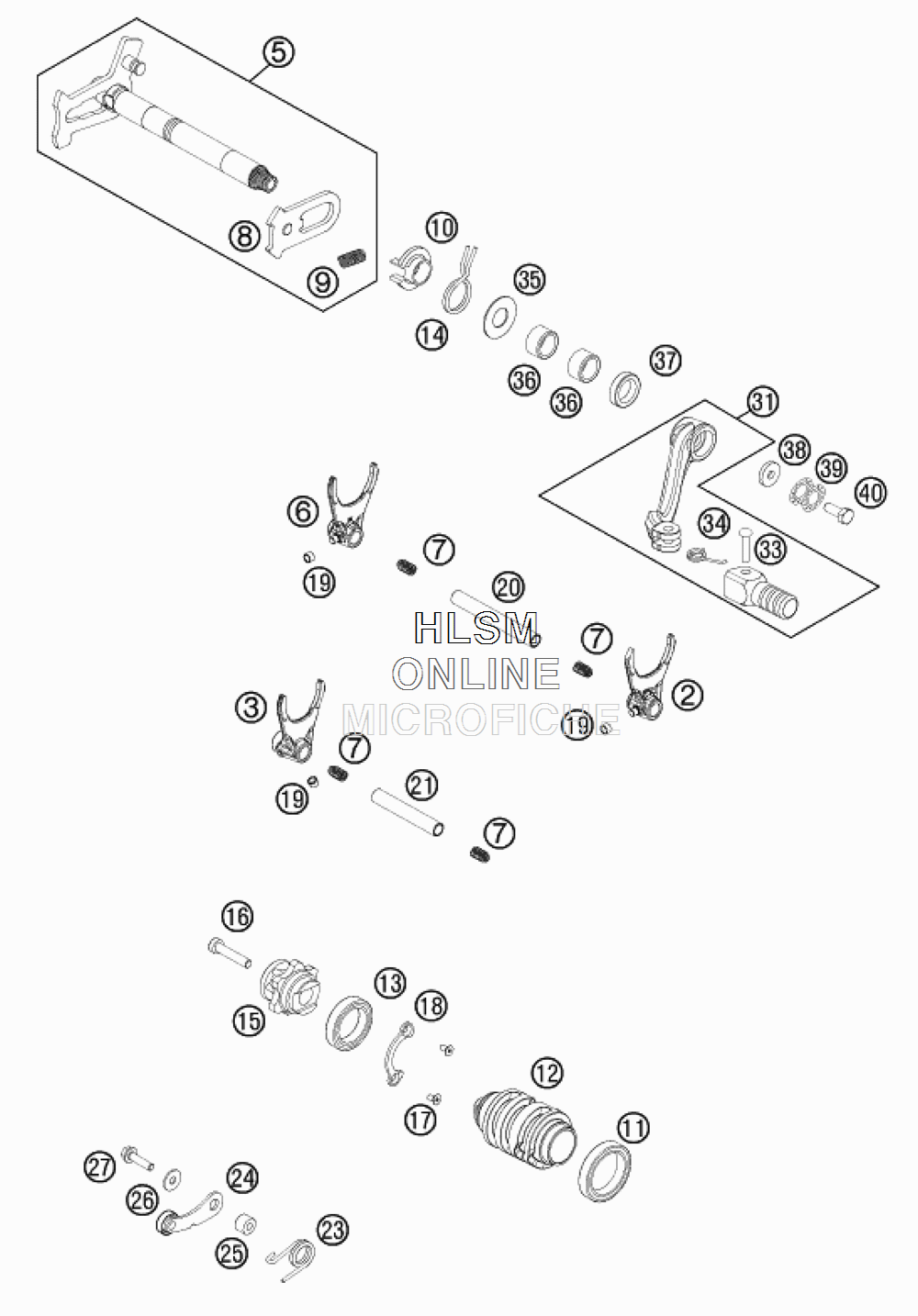

SHIFTING MECHANISM для Ktm 450 RR - 2014 года выпуска

  • №
    Артикул
    Название
  • 2
    77334002100M01 SHIFTING FORK 2ND/4TH GEAR
    SHIFTING FORK 2ND/4TH GEAR
  • 3
    77334003100M01 SHIFTING FORK 3RD/5TH GEAR
    SHIFTING FORK 3RD/5TH GEAR
  • 5
    77334005044 SHIFT SHAFT CPL.
    SHIFT SHAFT CPL.
  • 6
    77334001100M01 SHIFTING FORK 1ST.GEAR
    SHIFTING FORK 1ST.GEAR
  • 7
    58038023200 PRESSURE SPRING 0,9MM
    PRESSURE SPRING 0,9MM
  • 8
    54634008044 SLIDING PLATE CPL.
    SLIDING PLATE CPL.
  • 9
    56534013100 TENSIONING SPRING 0,8MM
    TENSIONING SPRING 0,8MM
  • 10
    54634020000 SPRING GUIDE
    SPRING GUIDE
  • 11
    0625061806 BALL BEARING 61806
    BALL BEARING 61806
  • 12
    77334012100 SHIFT ROLLER 5G
    SHIFT ROLLER 5G
  • 13
    0625618050 BALL BEARING 61805 C3
    BALL BEARING 61805 C3
  • 14
    54834014000 RETURN SPRING
    RETURN SPRING
  • 15
    77334015000 SHIFT LOCATING DRUM CPL.
    SHIFT LOCATING DRUM CPL.
  • 16
    0912060303 AH SCREW DIN0912-M 6X30
    AH SCREW DIN0912-M 6X30
  • 17
    0019050106 INT. TORX FLAT HEAD M5X10 10.9
    INT. TORX FLAT HEAD M5X10 10.9
  • 18
    77334090000 BUSHING RETAINING PLATE
    BUSHING RETAINING PLATE
  • 19
    50334018100 SHIFTING ROLLER 6X8X5,2
    SHIFTING ROLLER 6X8X5,2
  • 20
    77334020000 SHIFT RAIL
    SHIFT RAIL
  • 21
    77334019000 FRONT SHIFT RAIL
    FRONT SHIFT RAIL
  • 23*
    60034023200 ARRESTING LEVER SPRING
    ARRESTING LEVER SPRING
  • 24
    50334024144 LOCATING LEVER CPL.
    LOCATING LEVER CPL.
  • 25
    54634052300 SLEEVE FOR LOCKING LEVER
    SLEEVE FOR LOCKING LEVER
  • 26
    0021050003 WASHER DIN9021-A 5,3
    WASHER DIN9021-A 5,3
  • 27
    0025050206 HH COLLAR SCREW M5X20 TX30
    HH COLLAR SCREW M5X20 TX30
  • 31
    76334031000 SHIFT LEVER CPL. RALLY 11
    SHIFT LEVER CPL. RALLY 11
  • 33
    54634031050 BOLT 6X25 FOR SHIFT LEVER
    BOLT 6X25 FOR SHIFT LEVER
  • 34
    75034032000 SHIFTING LEVER SPRING
    SHIFTING LEVER SPRING
  • 35
    54634050000 STOP DISK 14X30X1
    STOP DISK 14X30X1
  • 36
    54632095000 NEEDLE BEAR.HK 1412 14X20X12
    NEEDLE BEAR.HK 1412 14X20X12
  • 37
    0760142460 SHAFT SEAL RING 14X24X6 B
    SHAFT SEAL RING 14X24X6 B
  • 38
    50232050001 STEEL WASHER 6,4X17X3
    STEEL WASHER 6,4X17X3
  • 39
    50233041000 PAIR OF WASHERS M 6 NORDLOCK
    PAIR OF WASHERS M 6 NORDLOCK
  • 40
    59009062016 SPECIAL SCREW M6X16 WS=8 10.9
    SPECIAL SCREW M6X16 WS=8 10.9
