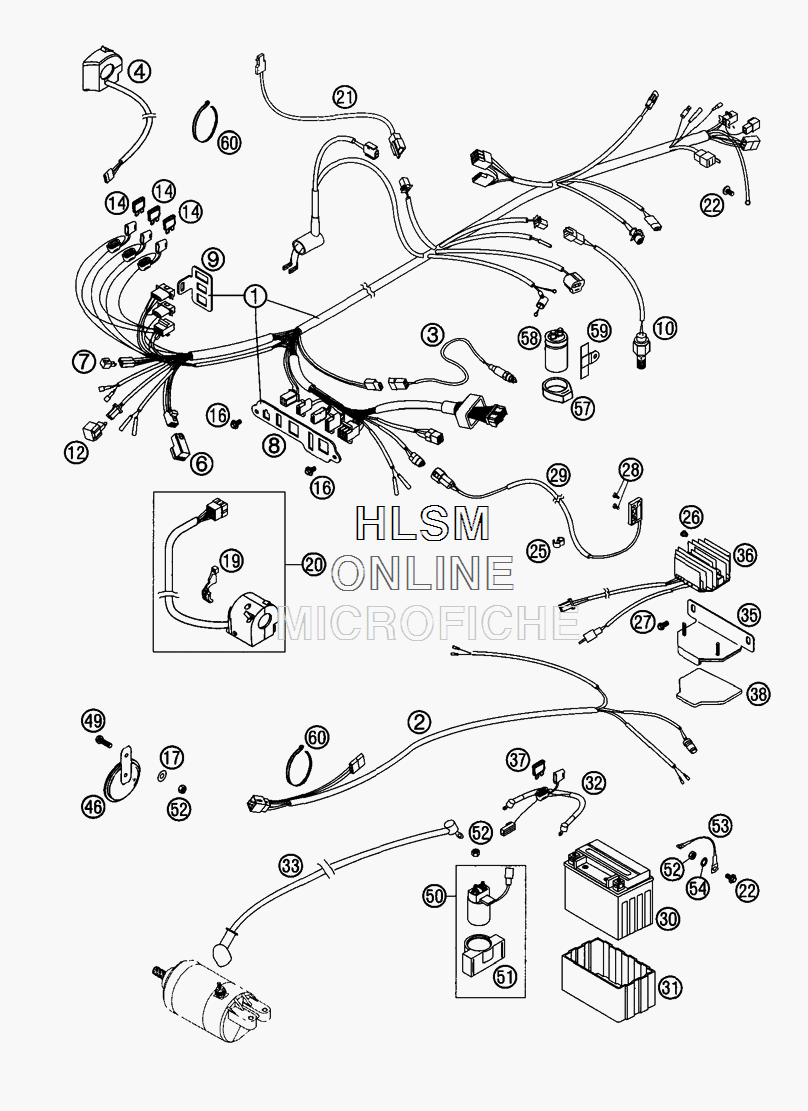

WIRING HARNESS для Ktm LC4 640 Adventure - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    58211075400 MAIN WIRING HARNESS
    MAIN WIRING HARNESS
  • 2
    58411176200 WIRING HARNESS REAR
    WIRING HARNESS REAR
  • 3
    58411049000 CLUTCH SWITCH
    CLUTCH SWITCH
  • 4
    58211074200 START-STOP SWITCH AD
    START-STOP SWITCH AD
  • 6
    58411057000 STARTER RELAY
    STARTER RELAY
  • 7
    58411096100 DIODE FOR E-START S3H-15
    DIODE FOR E-START S3H-15
  • 8
    58211083100 BRACKET FOR PLUGS LONG
    BRACKET FOR PLUGS LONG
  • 9
    58211083200 BRACKET FOR PLUGS SHORT
    BRACKET FOR PLUGS SHORT
  • 10
    50311051100 BRAKE LIGHT SWITCH REAR
    BRAKE LIGHT SWITCH REAR
  • 12
    44611207200 FLASHER UNIT SUMITOMO
    FLASHER UNIT SUMITOMO
  • 14
    58011109110 FUSE 10 A
    FUSE 10 A
  • 16
    0014060103 HH COLLAR SCREW M6X10 WS=8
    HH COLLAR SCREW M6X10 WS=8
  • 17
    0125060003 WASHER DIN0125-A 6,4
    WASHER DIN0125-A 6,4
  • 19
    58402050000 CHOKE LEVER
    CHOKE LEVER
  • 20
    58211070100 LIGHT SWITCH AD
    LIGHT SWITCH AD
  • 21
    51011050000 FRONT BRAKE LIGHT SWITCH
    FRONT BRAKE LIGHT SWITCH
  • 22
    0014060103 HH COLLAR SCREW M6X10 WS=8
    HH COLLAR SCREW M6X10 WS=8
  • 25
    55011022100 CLAMP 6/8MM BLACK
    CLAMP 6/8MM BLACK
  • 26
    56509064100 SELF LOCKING NUT M6 10.9
    SELF LOCKING NUT M6 10.9
  • 27
    0015060103 HH COLLAR SCREW M 6X10 WS=8
    HH COLLAR SCREW M 6X10 WS=8
  • 28
    0084040083 CYL.HEAD SCREW DIN0084-M 4X8 A
    CYL.HEAD SCREW DIN0084-M 4X8 A
  • 29
    58214069150 SPEEDOMETER SENSOR
    SPEEDOMETER SENSOR
  • 30
    58411053000 BATTERY 12V 8AH
    BATTERY 12V 8AH
  • 31
    58411053050 BATTERY COVER (RUBBER)
    BATTERY COVER (RUBBER)
  • 32
    58411059250 BATTERY CABLE 190MM 20A (BATTERY - STARTRELAISE)
    BATTERY CABLE 190MM 20A (BATTERY - STARTRELAISE)
  • 33
    58411059100 STARTERCABLE 700 MM (STARTERRELAISE - STARTERENGINE)
    STARTERCABLE 700 MM (STARTERRELAISE - STARTERENGINE)
  • 35
    58411055100 BATTERY BRACKET
    BATTERY BRACKET
  • 36
    58411034100 VOLT.REGULATOR-RECTIFIER 12V
    VOLT.REGULATOR-RECTIFIER 12V
  • 37
    58011109020 FUSE 20A
    FUSE 20A
  • 38
    58411055150 METAMOLL FOR BATTERY BRACKET
    METAMOLL FOR BATTERY BRACKET
  • 46
    54511060100 DC HORN 12V NIKKO
    DC HORN 12V NIKKO
  • 49
    0014060153 HH COLLAR SCREW M 6X15 WS=8
    HH COLLAR SCREW M 6X15 WS=8
  • 50
    58411058000 STARTER RELAY WITH HOLD.RUBBER
    STARTER RELAY WITH HOLD.RUBBER
  • 51
    58411058050 HOLD. RUBBER FOR STARTRELAY
    HOLD. RUBBER FOR STARTRELAY
  • 52
    0985060003 SELF LOCK. NUT DIN0985-M 6
    SELF LOCK. NUT DIN0985-M 6
  • 53
    58411097100 GROUND CABLE D=6MM L=140MM
    GROUND CABLE D=6MM L=140MM
  • 54
    58411098100 CONTACT WASHER M6 VSV-K6
    CONTACT WASHER M6 VSV-K6
  • 57
    54511048000 CAPACITOR BRACKET
    CAPACITOR BRACKET
  • 58
    49111435100 CONDENSATOR 25V, 10.000 MF
    CONDENSATOR 25V, 10.000 MF
  • 59
    54611448000 BRACKET FOR CAPACITOR
    BRACKET FOR CAPACITOR
  • 60
    44011076305 CABLE TIE 290MM
    CABLE TIE 290MM
  • 60
    44011076200 CABLE TIE 200MM
    CABLE TIE 200MM
  • 60
    44011076100 CABLE TIE 100MM
    CABLE TIE 100MM
