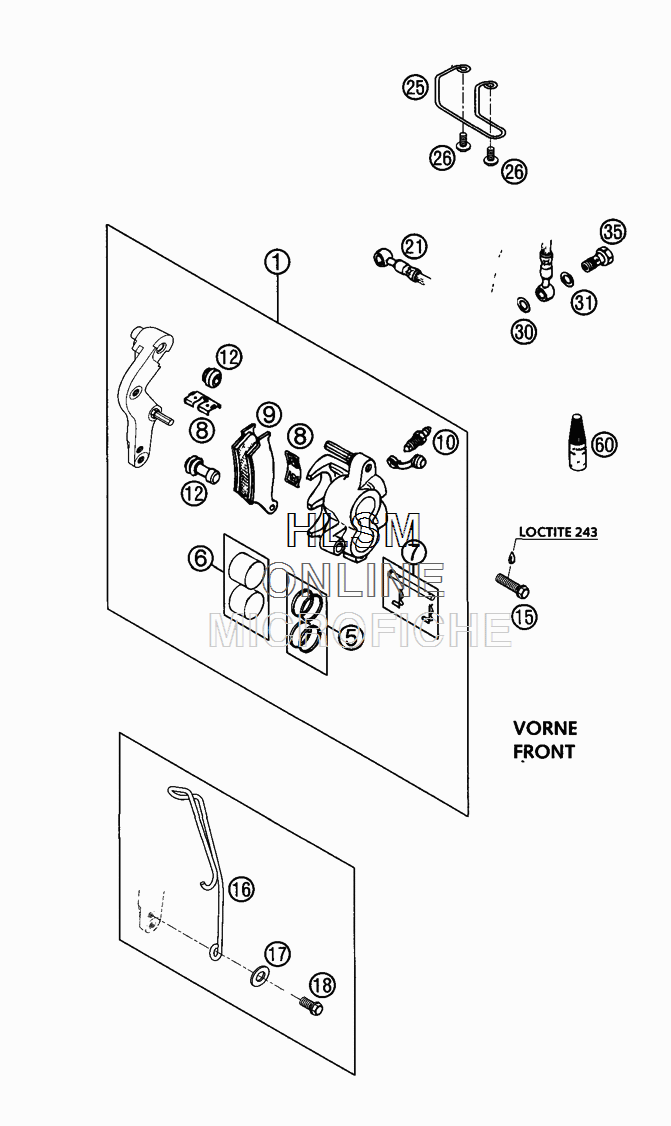

BRAKE CALIPER FRONT для Ktm LC4 640 Adventure - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    58413015244 BRAKECAL.FRONT CPL. 320MM
    BRAKECAL.FRONT CPL. 320MM
  • 5
    54613205000 REPAIR KIT 28MM
    REPAIR KIT 28MM
  • 6
    54613206000 REPAIR KIT PISTON 28MM
    REPAIR KIT PISTON 28MM
  • 7
    54613210100 BOLT CPL. 6X56
    BOLT CPL. 6X56
  • 8
    54613212000 RETAINING PLATE SET
    RETAINING PLATE SET
  • 9
    58413030000 BRAKE P.SET FR. TEXTART4069 GF
    BRAKE P.SET FR. TEXTART4069 GF
  • 9
    50313030100 BRAKE P.SET FR. TOSHIBA TT2701
    BRAKE P.SET FR. TOSHIBA TT2701
  • 10
    54513214000 BLEEDER SCREW M10X1
    BLEEDER SCREW M10X1
  • 12
    54613218000 CUP SET SHORT
    CUP SET SHORT
  • 15
    0015080353 HH COLLAR SCREW M 8X35 WS=10
    HH COLLAR SCREW M 8X35 WS=10
  • 16
    58213012050 BRAKE HOSE GUIDE
    BRAKE HOSE GUIDE
  • 17
    0125080003 WASHER DIN0125-A 8,4
    WASHER DIN0125-A 8,4
  • 18
    0015080163 HH COLLAR SCREW M 8X16 WS=10
    HH COLLAR SCREW M 8X16 WS=10
  • 21
    59013011000 BRAKEHO. FRONT 1300MM
    BRAKEHO. FRONT 1300MM
  • 25
    58213010150 BRAKE HOSE GUIDE
    BRAKE HOSE GUIDE
  • 26
    0015060103 HH COLLAR SCREW M 6X10 WS=8
    HH COLLAR SCREW M 6X10 WS=8
  • 30
    42013226000 CU-SEAL RING DIN7603-10X16X1
    CU-SEAL RING DIN7603-10X16X1
  • 31
    42013026000 CU-SEAL RING DIN7603-10X16X1,5
    CU-SEAL RING DIN7603-10X16X1,5
  • 35
    50213025000 HOLLOW SCREW M10X1X19
    HOLLOW SCREW M10X1X19
  • 60
    6899785 LOCTITE 243 BLUE 6CCM
    LOCTITE 243 BLUE 6CCM
