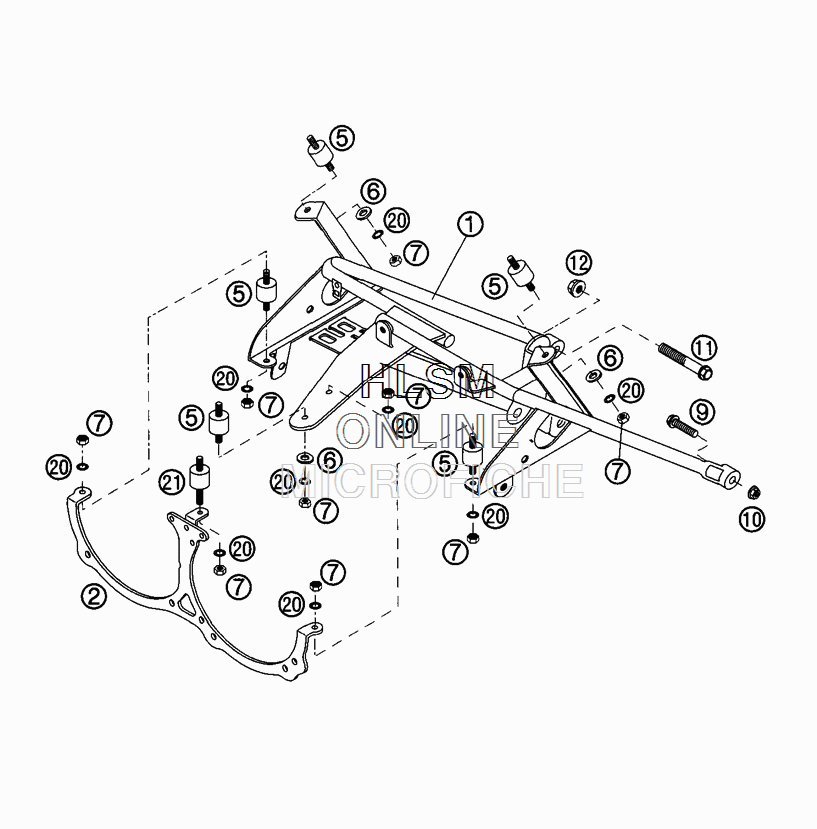

HEAD LIGHT SUPPORT для Ktm LC4 640 Adventure - 2002 года выпуска
-
№АртикулНазвание
-
158214010100 HEAD LIGHT CARRIER TRIOMHEAD LIGHT CARRIER TRIOM
-
258211045000 SUPPORT F. HEAD LIGHTSUPPORT F. HEAD LIGHT
-
554335031000 RUBBER GROMMET 20X15-M6X10 (2)RUBBER GROMMET 20X15-M6X10 (2)
-
60125060003 WASHER DIN0125-A 6,4WASHER DIN0125-A 6,4
-
70934060003 HEXAGON NUT DIN0934-M 6HEXAGON NUT DIN0934-M 6
-
90015060253 HH COLLAR SCREW M 6X25 WS=8HH COLLAR SCREW M 6X25 WS=8
-
1056509064100 SELF LOCKING NUT M6 10.9SELF LOCKING NUT M6 10.9
-
110015080503 HH COLLAR SCREW M 8X50 WS=10HH COLLAR SCREW M 8X50 WS=10
-
1254310086200 SELF LOCKING NUT M8 10.9SELF LOCKING NUT M8 10.9
-
200797060003 TOOTH LOCK WASH. DIN6797-A 6,4TOOTH LOCK WASH. DIN6797-A 6,4
-
2158214012000 RUBBER GROMMET 20/15RUBBER GROMMET 20/15
