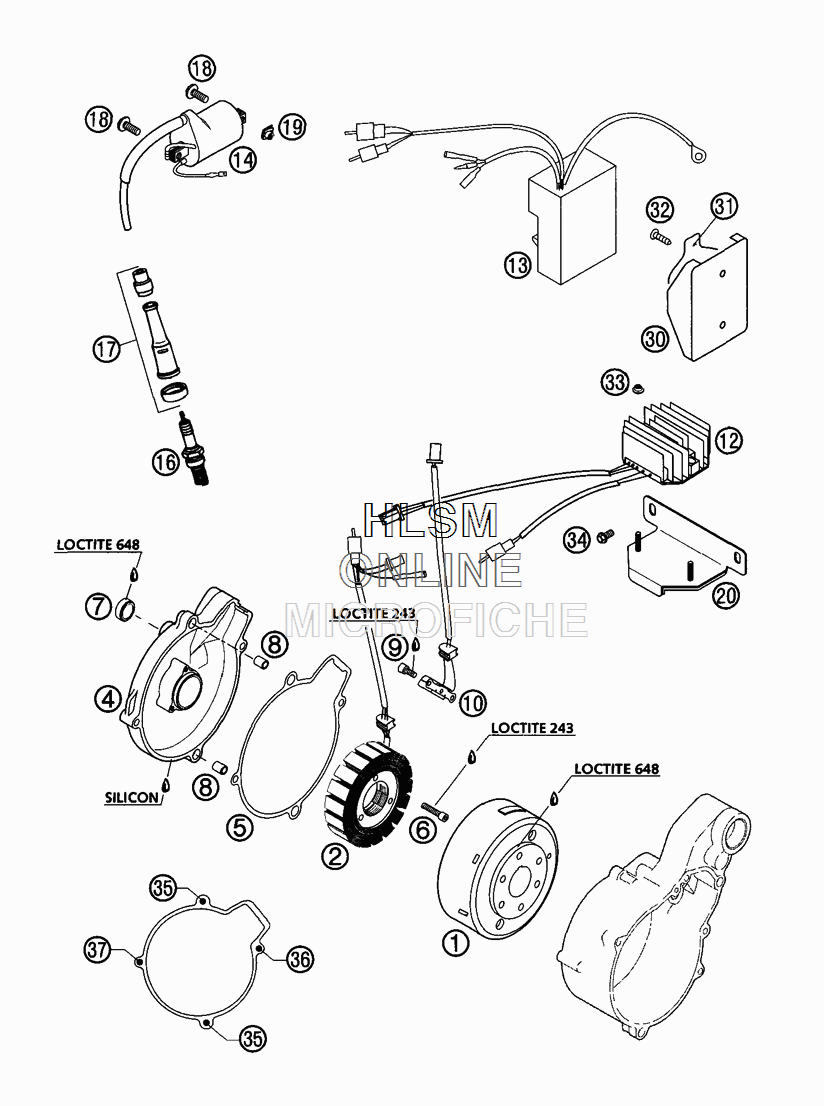

IGNITION SYSTEM KOKUSAN для Ktm LC4 640 Adventure - 2002 года выпуска`
-
№АртикулНазвание
-
158439005100 FLYWHEEL KOKUSAN GP9128FLYWHEEL KOKUSAN GP9128
-
258439004000 STATOR KOKUSAN LOOSESTATOR KOKUSAN LOOSE
-
458430002144 IGNITION COVER CPLIGNITION COVER CPL
-
558430040000 IGNITION COVER GASKETIGNITION COVER GASKET
-
60912050253 AH SCREW DIN0912-M 5X25AH SCREW DIN0912-M 5X25
-
758430095000 INSPECTION GLASS GW 20-7 NBRINSPECTION GLASS GW 20-7 NBR
-
849030090000 DOWEL 9,8 X 7 X 10DOWEL 9,8 X 7 X 10
-
90912050083 AH SCREW DIN0912-M 5X 8AH SCREW DIN0912-M 5X 8
-
1058439034000 PULSER COILPULSER COIL
-
1258411034100 VOLT..REGULATOR-RECTIFIER 12VVOLT..REGULATOR-RECTIFIER 12V
-
1358439031200 DIGITALBOX CDI CB7459 95ROZDIGITALBOX CDI CB7459 95ROZ
-
1358439031300 DIGITALB.CDI CB7481 80ROZDIGITALB.CDI CB7481 80ROZ
-
1458439006000 IGNITIONCOIL 1G3826 KOKUSANIGNITIONCOIL 1G3826 KOKUSAN
-
1658439093009 SPARK PLUG NGK DPR8EA-9SPARK PLUG NGK DPR8EA-9
-
1758031010000 SPARK PLUG CONNECT.SD 05FG NGKSPARK PLUG CONNECT.SD 05FG NGK
-
180014060153 HH COLLAR SCREW M 6X15 WS=8HH COLLAR SCREW M 6X15 WS=8
-
1950235033300 SNAP-NUT HOLDER M6 KP142SNAP-NUT HOLDER M6 KP142
-
2058411055100 BATTERY BRACKETBATTERY BRACKET
-
3058439030100 RUBBER BRACKET FOR CDIRUBBER BRACKET FOR CDI
-
3158439030150 SUPPORT FOR RUBBER BRACKETSUPPORT FOR RUBBER BRACKET
-
320017050181 PLASTIC SCREW KB 5X18 BLACKPLASTIC SCREW KB 5X18 BLACK
-
3356509064100 SELF LOCKING NUT M6 10.9SELF LOCKING NUT M6 10.9
-
340015060103 HH COLLAR SCREW M 6X10 WS=8HH COLLAR SCREW M 6X10 WS=8
-
350015060303 HH COLLAR SCREW M 6X30 WS=8HH COLLAR SCREW M 6X30 WS=8
-
360015060803 HH COLLAR SCREW M 6X80 WS=8HH COLLAR SCREW M 6X80 WS=8
-
370015060253 HH COLLAR SCREW M 6X25 WS=8HH COLLAR SCREW M 6X25 WS=8
