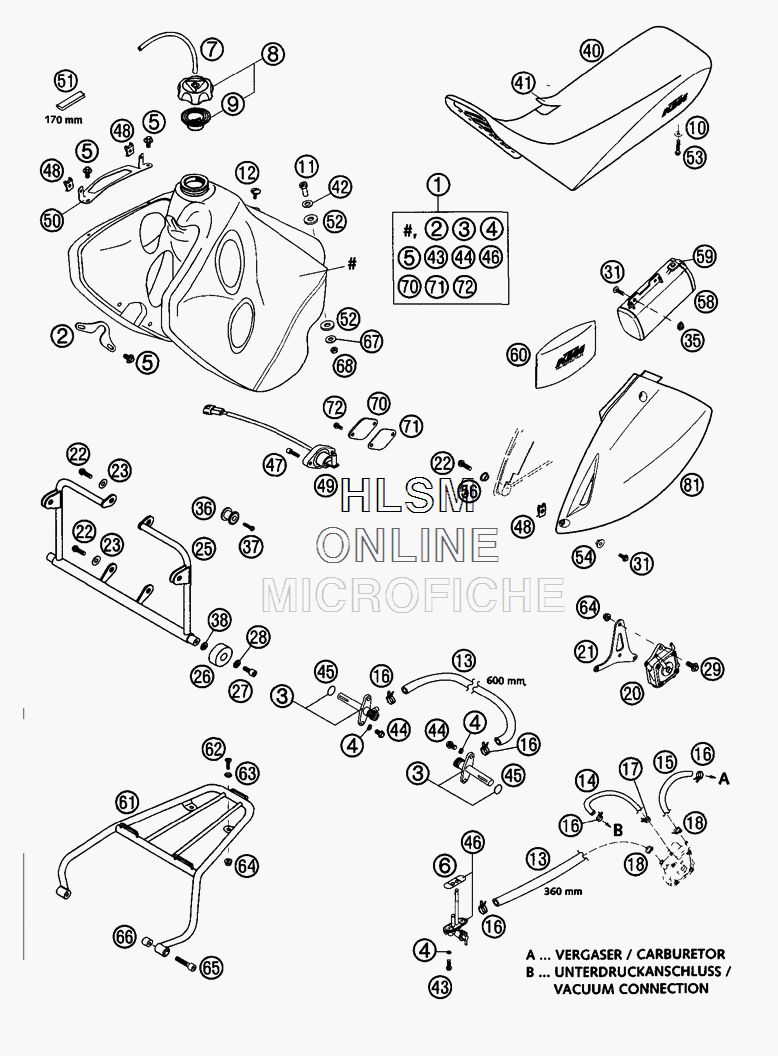

TANK - SEAT - COVER для Ktm LC4 640 Adventure - 2002 года выпуска
-
№АртикулНазвание
-
15820701314490 FUEL TANK KPL. 30LFUEL TANK KPL. 30L
-
258507023000 BRACKET FOR 30 LITER TANKBRACKET FOR 30 LITER TANK
-
358507003000 FUEL COCK CPL. SMALL RALLYEFUEL COCK CPL. SMALL RALLYE
-
40603061001 CU-SEAL RING DIN7603-6X10X1CU-SEAL RING DIN7603-6X10X1
-
50014060103 HH COLLAR SCREW M6X10 WS=8HH COLLAR SCREW M6X10 WS=8
-
658307106100 GASKET FUEL COCK MIKUNIGASKET FUEL COCK MIKUNI
-
731007107001 PVC-HOSE 6X9 MM PER METREPVC-HOSE 6X9 MM PER METRE
-
859007008044 FILLER CAP CPL. SMALL EUROPEFILLER CAP CPL. SMALL EUROPE
-
959007009000 GASKET FOR FILLER CAP HIGHGASKET FOR FILLER CAP HIGH
-
100125060003 WASHER DIN0125-A 6,4WASHER DIN0125-A 6,4
-
1158307014000 SPECIAL NUT M8SPECIAL NUT M8
-
1258407011000 SCREW FOR SEAT 2001SCREW FOR SEAT 2001
-
1354435024001 HOSE ID 7,5 PER METERHOSE ID 7,5 PER METER
-
1458205035001 HOSE 6X10 PER METERHOSE 6X10 PER METER
-
1558507116100 HOSE OG.ECO 1TBSE 6,3X13,8HOSE OG.ECO 1TBSE 6,3X13,8
-
1658007117000 YDNAC-CLAMP 10107 10MMYDNAC-CLAMP 10107 10MM
-
1758007017000 YDNAC CLAMP 10101 (9MM)YDNAC CLAMP 10101 (9MM)
-
1858007117200 OETIKER HOSE CLAMP 13,3MMOETIKER HOSE CLAMP 13,3MM
-
2058512087000 FUEL PUMP MIKUNI DF52-601FUEL PUMP MIKUNI DF52-601
-
2158212071100 BRACKET FOR FUEL PUMPBRACKET FOR FUEL PUMP
-
220015060203 HH COLLAR SCREW M 6X20 WS=8HH COLLAR SCREW M 6X20 WS=8
-
230021060003 WASHER DIN9021-A 6,4WASHER DIN9021-A 6,4
-
255851209200090 BRACKET 30LT TANK SILVERBRACKET 30LT TANK SILVER
-
2650107015000 TANKROLL 13X36X16TANKROLL 13X36X16
-
270912060163 AH SCREW DIN0912-M 6X16AH SCREW DIN0912-M 6X16
-
280125060003 WASHER DIN0125-A 6,4WASHER DIN0125-A 6,4
-
290014060153 HH COLLAR SCREW M 6X15 WS=8HH COLLAR SCREW M 6X15 WS=8
-
310015060163 HH COLLAR SCREW M 6X16 WS=8HH COLLAR SCREW M 6X16 WS=8
-
3550235033300 SNAP-NUT HOLDER M6 KP142SNAP-NUT HOLDER M6 KP142
-
3658307113250 TANK BUSHING CPL. 12 X 34 X 25TANK BUSHING CPL. 12 X 34 X 25
-
370015060253 HH COLLAR SCREW M 6X25 WS=8HH COLLAR SCREW M 6X25 WS=8
-
3812011016000 WASHER6X12X3WASHER6X12X3
-
4058207040400 SEAT ADVENTURESEAT ADVENTURE
-
4158207040450 SEAT COVER SILVER ADVENTURESEAT COVER SILVER ADVENTURE
-
4258307019000 WASHER 10,5 X 25 X 1,5WASHER 10,5 X 25 X 1,5
-
430015060163 HH COLLAR SCREW M6X16 WS=8HH COLLAR SCREW M6X16 WS=8
-
440015060123 HH COLLAR SCREW M6X12 WS=8HH COLLAR SCREW M6X12 WS=8
-
4555007006200 O-RING 11X1,8 NBR 70O-RING 11X1,8 NBR 70
-
4651107004000 FUEL COCK CPL.MIKUNI CK-69 '96 (ONE CONNECTION)FUEL COCK CPL.MIKUNI CK-69 '96 (ONE CONNECTION)
-
470912050163 AH SCREW DIN0912-M 5X16AH SCREW DIN0912-M 5X16
-
4854603048100 RANGE CHANGE METAL NUT M6RANGE CHANGE METAL NUT M6
-
4958207080000 GAS-LEVEL SENSORGAS-LEVEL SENSOR
-
5058211001161 MASK BRACKET R/SMASK BRACKET R/S
-
5058211001160 MASK BRACKET L/SMASK BRACKET L/S
-
5158312085100 EDGE PROTECTOR FOR COVEREDGE PROTECTOR FOR COVER
-
5251005067100 INSOLATE WASHER 12X28X3INSOLATE WASHER 12X28X3
-
530015060353 HH COLLAR SCREW M 6X35 WS=8HH COLLAR SCREW M 6X35 WS=8
-
5450308052000 BUSH FOR SPOILER 6X11X16X5BUSH FOR SPOILER 6X11X16X5
-
5650308053000 BUSH FOR SPOILER 6X11X16X7,5BUSH FOR SPOILER 6X11X16X7,5
-
5858012058000 TOOL BOX CPL.TOOL BOX CPL.
-
5958012058050 RUBBER FOR TOOL BOXRUBBER FOR TOOL BOX
-
6058329099000 TOOL SETTOOL SET
-
615841201020030 BAGGAGE CARRIER BLACK MIL LC4BAGGAGE CARRIER BLACK MIL LC4
-
620991060203 FLAT HEAD SCREW DIN7991-M 6X20FLAT HEAD SCREW DIN7991-M 6X20
-
6340006006000 WASHER 6MMWASHER 6MM
-
6456509064100 SELF LOCKING NUT M6 10.9SELF LOCKING NUT M6 10.9
-
650912060353 AH SCREW DIN0912-M 6X35AH SCREW DIN0912-M 6X35
-
6658412011100 BUSH FOR BAGGAGE CARRIERBUSH FOR BAGGAGE CARRIER
-
670021080003 WASHER DIN9021-A 8,4WASHER DIN9021-A 8,4
-
680934080003 HEXAGON NUT DIN0934-M 8HEXAGON NUT DIN0934-M 8
-
7058207081000 COVER FOR GAS-LEVEL SENSORCOVER FOR GAS-LEVEL SENSOR
-
7158207081050 GASKET FOR COVERGASKET FOR COVER
-
720015050123 HH COLLAR SCREW M 5X12 WS=8HH COLLAR SCREW M 5X12 WS=8
-
815840804100004 SIDE COVER L/S ORANGESIDE COVER L/S ORANGE
-
815840804210004 SIDE COVER L/S ORANGESIDE COVER L/S ORANGE
