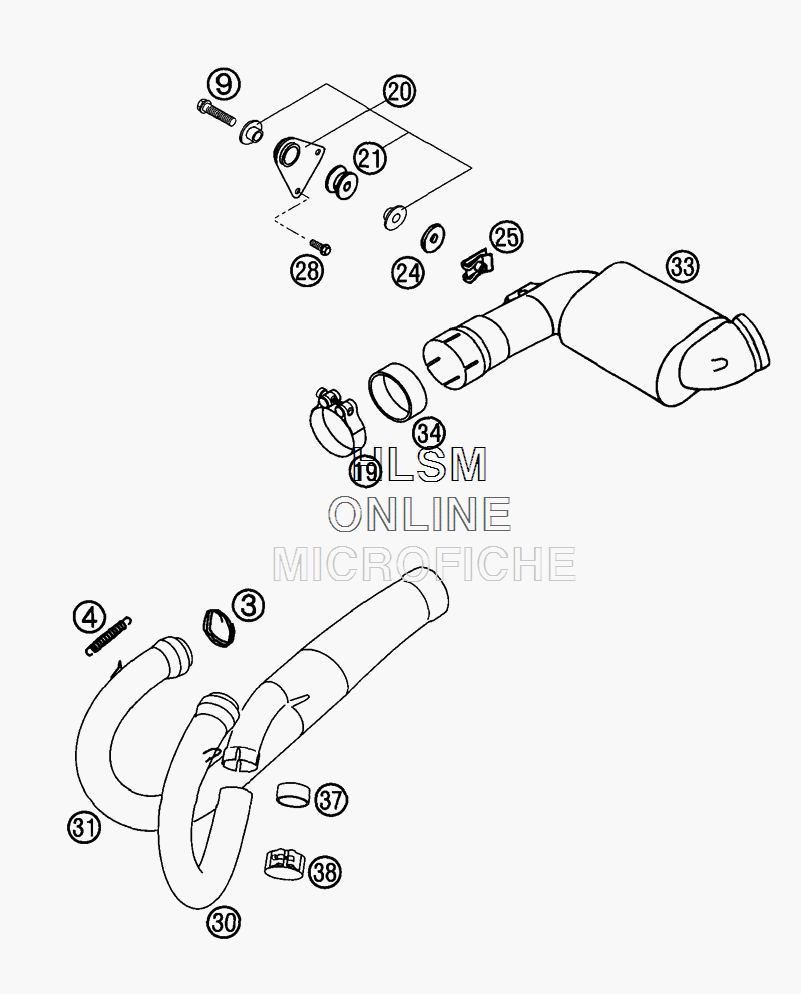

PIPES PRE SILENCER для Ktm LC4 640 Adventure - 2002 года выпуска

  • №
    Артикул
    Название
  • 3
    58305053001 CERAMIC LINE 1 METER
    CERAMIC LINE 1 METER
  • 4
    50305016000 TEN.SPRING L=55MM EY.MOVEABLE
    TEN.SPRING L=55MM EY.MOVEABLE
  • 9
    0015080353 HH COLLAR SCREW M 8X35 WS=10
    HH COLLAR SCREW M 8X35 WS=10
  • 19
    58705058000 PRE SILENCER CLAMP D=53MM
    PRE SILENCER CLAMP D=53MM
  • 20
    5830506504490 BRACKET-PRE-SIL.CPL SILVER
    BRACKET-PRE-SIL.CPL SILVER
  • 21
    54305068100 DAMP. COMPONENT SILICONE GREY
    DAMP. COMPONENT SILICONE GREY
  • 24
    51005067000 INSOLATE WASHER 8,5X28X3
    INSOLATE WASHER 8,5X28X3
  • 25
    54603048000 RANGE CHANGE METAL NUT M8
    RANGE CHANGE METAL NUT M8
  • 28
    0015060163 HH COLLAR SCREW M 6X16 WS=8
    HH COLLAR SCREW M 6X16 WS=8
  • 30
    58405007300 EXHAUST PIPE L/S KTM584
    EXHAUST PIPE L/S KTM584
  • 31
    58405008300 EXHAUST PIPE R/S KTM584
    EXHAUST PIPE R/S KTM584
  • 33
    58405050300 PRESILENCER KTM V2
    PRESILENCER KTM V2
  • 34
    58405005001 GRAPHIT RING 45X50X25
    GRAPHIT RING 45X50X25
  • 37
    58405005000 GRAPHIT RING 32X37X20
    GRAPHIT RING 32X37X20
  • 38
    58705058100 PRE SILENCER CLAMP D=40MM
    PRE SILENCER CLAMP D=40MM
