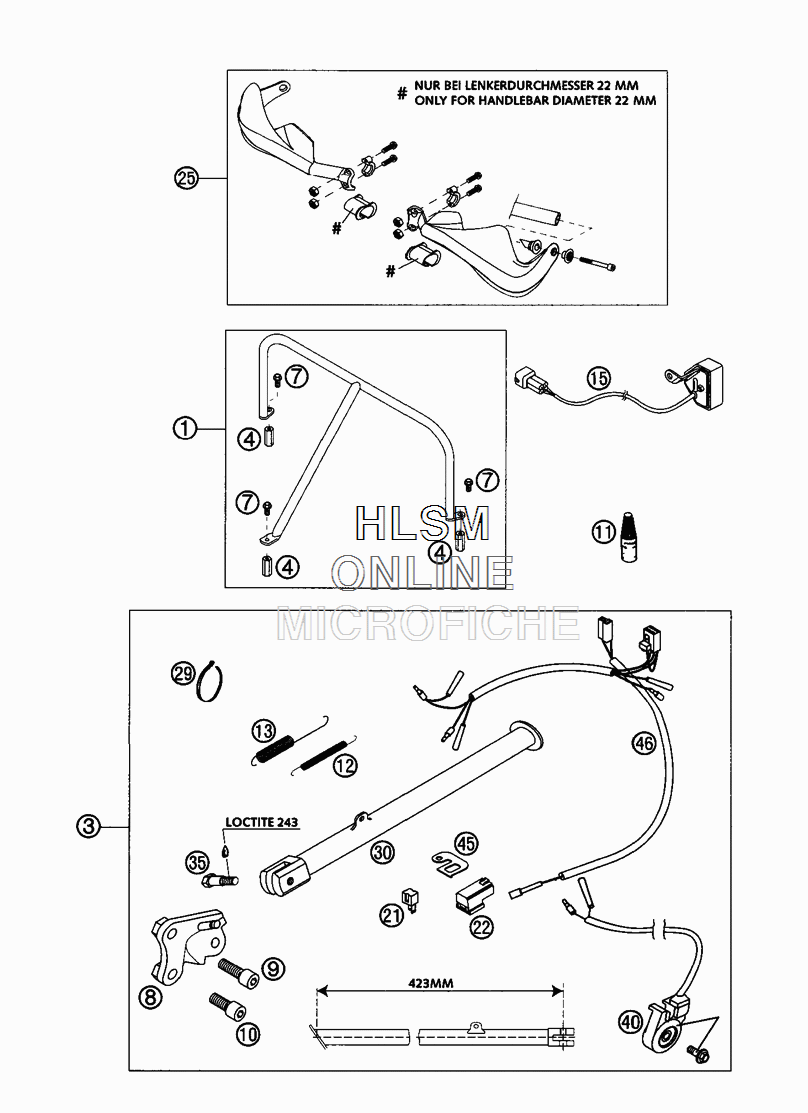

ACCESSORIES для Ktm LC4 640 Adventure - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    58212090144 ROADBOOK CARRIER CPL.
    ROADBOOK CARRIER CPL.
  • 3
    5840302364490 SIDESTAND CPL
    SIDESTAND CPL
  • 4
    58212090150 SPACER NUT F. ROADBOOK CARRIER
    SPACER NUT F. ROADBOOK CARRIER
  • 7
    0015060123 HH COLLAR SCREW M 6X12 WS=8
    HH COLLAR SCREW M 6X12 WS=8
  • 8
    58403026500 S.STAND BRACKET M10
    S.STAND BRACKET M10
  • 9
    0912100303 AH SCREW DIN0912-M10X30
    AH SCREW DIN0912-M10X30
  • 10
    0912100256 AH SCREW DIN0912-M10X25
    AH SCREW DIN0912-M10X25
  • 11
    6899785 LOCTITE 243 BLUE 6CCM
    LOCTITE 243 BLUE 6CCM
  • 12
    58403030000 SIDE STAND SPRING D=7,7MM
    SIDE STAND SPRING D=7,7MM
  • 13
    51003021000 SIDESTAND SPRING LONG
    SIDESTAND SPRING LONG
  • 15
    58214069044 TRIPMASTER SWITCH CPL.
    TRIPMASTER SWITCH CPL.
  • 21
    58411096100 DIODE FOR E-START S3H-15
    DIODE FOR E-START S3H-15
  • 22
    58411057000 STARTER RELAY
    STARTER RELAY
  • 25
    6000207900030 HAND GUARD L/S AND R/S CPL.BL.
    HAND GUARD L/S AND R/S CPL.BL.
  • 29
    44011076200 CABLE TIE 200MM
    CABLE TIE 200MM
  • 30
    5840302360090 SIDE STAND SILVER M10
    SIDE STAND SILVER M10
  • 35
    58203027200 SCREW FOR SIDE STAND
    SCREW FOR SIDE STAND
  • 40
    58411045000 SIDE STAND SWITCH CPL.
    SIDE STAND SWITCH CPL.
  • 45
    58311031000 BRACKET
    BRACKET
  • 46
    58411046000 SIDE STAND CABLE
    SIDE STAND CABLE
