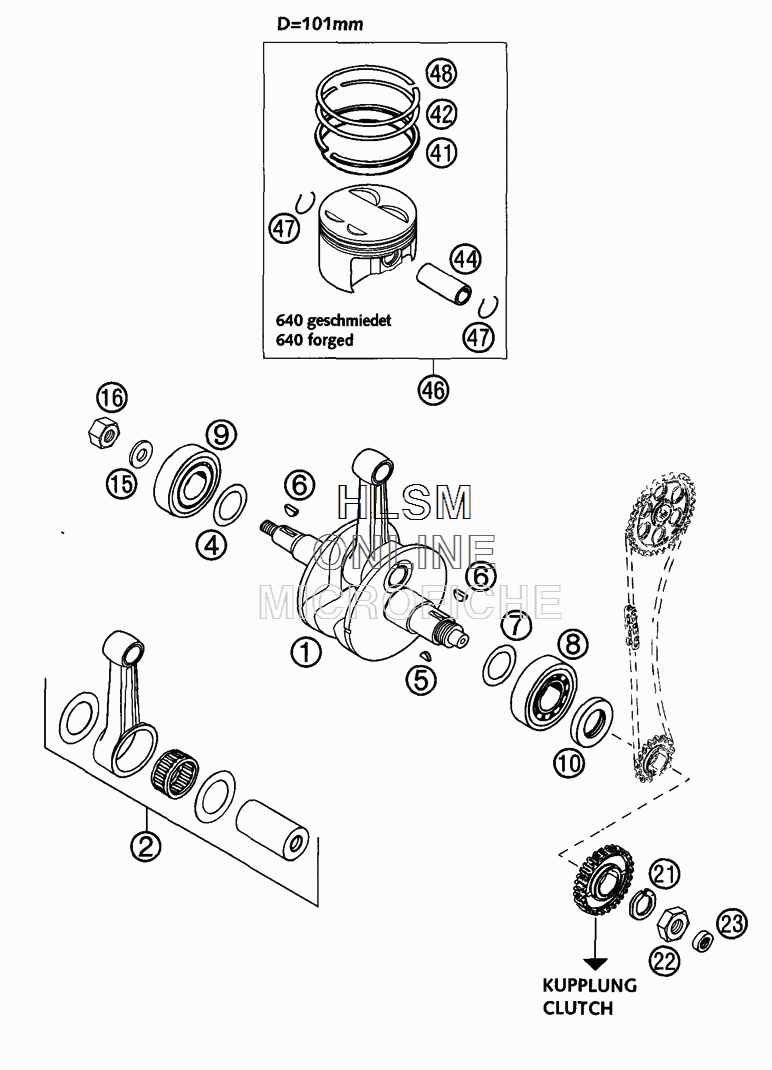

CRANKSHAFT W/ PISTON для Ktm LC4 640 Adventure - 2002 года выпуска`
-
№АртикулНазвание
-
158430018200 CRANKSHAFT LC4 2002 (STROKE 78MM)CRANKSHAFT LC4 2002 (STROKE 78MM)
-
258330015044 CONNECTING ROD REPAIR SET (CCM L=141,5MM)CONNECTING ROD REPAIR SET (CCM L=141,5MM)
-
456530081000 SHIM WASHER 36X48X0,10SHIM WASHER 36X48X0,10
-
456530081100 SHIM WASHER 36X48X0,15SHIM WASHER 36X48X0,15
-
456530081300 SHIM WASHER 36X48X0,30SHIM WASHER 36X48X0,30
-
50888030050 WOODRUFF KEY DIN6888-3X5X13WOODRUFF KEY DIN6888-3X5X13
-
66946005 WOODRUFF KEY 5X6,5 HARDEDWOODRUFF KEY 5X6,5 HARDED
-
756030081000 THRUST WASHER 30X42X0,1THRUST WASHER 30X42X0,1
-
756030081100 THRUST WASHER 30X42X0,15THRUST WASHER 30X42X0,15
-
756030081200 THRUST WASHER 30X42X0,3THRUST WASHER 30X42X0,3
-
858030082000 CYL.ROLLER BEARING NJ 306 C3CYL.ROLLER BEARING NJ 306 C3
-
956530123000 CYLINDER ROLLER BEARING NJ 207CYLINDER ROLLER BEARING NJ 207
-
100760304771 SHAFT SEAL RING 30X47X7 VITONSHAFT SEAL RING 30X47X7 VITON
-
1558330095000 STEEL WASHER 16 X 30 X 3STEEL WASHER 16 X 30 X 3
-
1658430028000 HEX NUT M16X1,25 L/SHEX NUT M16X1,25 L/S
-
2158030019000 LOCKING RING VSK 20LOCKING RING VSK 20
-
220936200155 HEXAGON NUT DIN0936-M20XI,5HEXAGON NUT DIN0936-M20XI,5
-
230760122270 SHAFT SEAL RING 12 X 22 X 7 8SHAFT SEAL RING 12 X 22 X 7 8
-
4158330031300 OIL SCRAPER RING 101X2,5OIL SCRAPER RING 101X2,5
-
4258330932100 TAP.COMPR.PISTON RING 101X1,25TAP.COMPR.PISTON RING 101X1,25
-
4458330833000 PISTON PIN 22 X 13 X 60PISTON PIN 22 X 13 X 60
-
4658430007000I PISTON I CPL.101MM FORGEDPISTON I CPL.101MM FORGED
-
4658430007000II PISTON II 101MM FORGEDPISTON II 101MM FORGED
-
4758430074000 CIRCLIP 22 X 1,6CIRCLIP 22 X 1,6
-
4858430032000 L-RING 101X93,5X1,5L-RING 101X93,5X1,5
