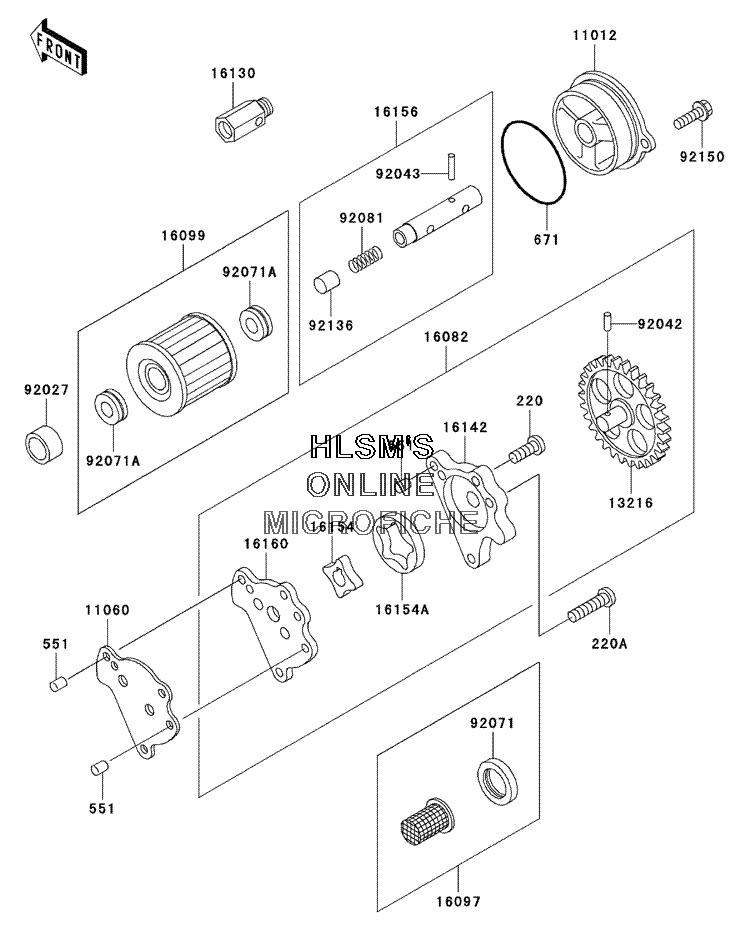

OIL PUMP для Kawasaki KLR650 - 2005 года выпуска

  • №
    Артикул
    Название
  • 220
    220B0616 SCREW, PAN, CROS, 6X16
    SCREW, PAN, CROS, 6X16
  • 220A
    220B0625 SCREW, PAN, CROS, 6X25
    SCREW, PAN, CROS, 6X25
  • 551
    551A0608 PIN, DOWEL, 6X8
    PIN, DOWEL, 6X8
  • 671
    671B2555 O-RING, 55MM
    O-RING, 55MM
  • 11012
    11012-1695 CAP, OIL FILTER
    CAP, OIL FILTER
  • 11060
    11060-1115 GASKET, OIL PUMP
    GASKET, OIL PUMP
  • 13216
    13216-1110 GEAR, COMP, OIL PUMP
    GEAR, COMP, OIL PUMP
  • 16082
    16082-1088 PUMP, ASSY, OIL
    PUMP, ASSY, OIL
  • 16097
    16097-1001 FILTER, ASSY, OIL
    FILTER, ASSY, OIL
  • 16099
    16099-004 ELEMENT, OIL FILTER
    ELEMENT, OIL FILTER
  • 16130
    16130-1001 VALVE, ASSY, RELIEF
    VALVE, ASSY, RELIEF
  • 16142
    16142-1078 COVER, PUMP
    COVER, PUMP
  • 16154
    16154-1069 ROTOR, PUMP, INNER
    ROTOR, PUMP, INNER
  • 16154A
    16154-1070 ROTOR, PUMP, OUTER
    ROTOR, PUMP, OUTER
  • 16156
    16156-002 PISTON, ASSY, VALVE, BY, PASS
    PISTON, ASSY, VALVE, BY, PASS
  • 16160
    16160-1137 BODY
    BODY
  • 92027
    92027-1695 COLLAR, 13X20X9
    COLLAR, 13X20X9
  • 92042
    92042-041 PIN, DOWEL, 4X12.8
    PIN, DOWEL, 4X12.8
  • 92043
    92043-123 PIN, SPRING, 2.2X13.5
    PIN, SPRING, 2.2X13.5
  • 92071
    92071-100 GROMMET, OIL STRAINER
    GROMMET, OIL STRAINER
  • 92071A
    92071-101 GROMMET, OIL FILTER
    GROMMET, OIL FILTER
  • 92081
    92081-043 SPRING, PISTON
    SPRING, PISTON
  • 92136
    92136-002 VALVE
    VALVE
  • 92150
    92150-1010 BOLT, 6X20
    BOLT, 6X20
