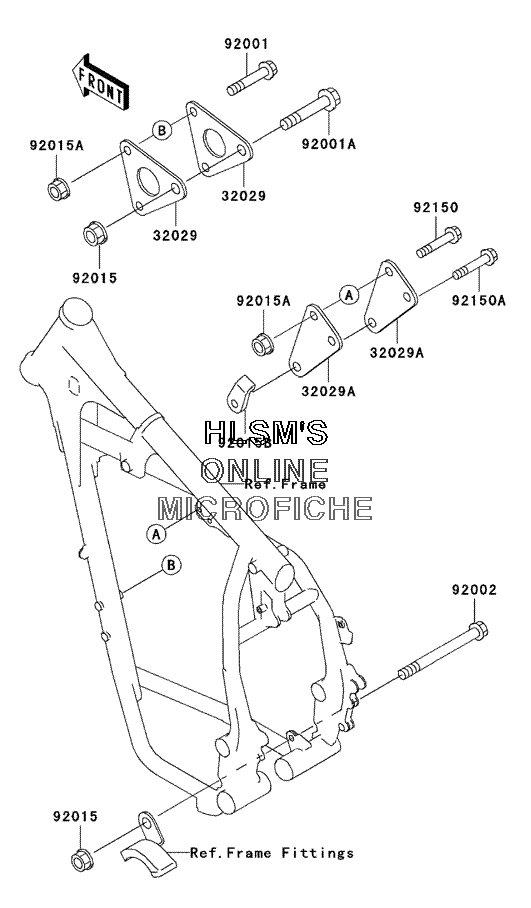

ENGINE MOUNT для Kawasaki KLR650 - 2005 года выпуска
-
№АртикулНазвание
-
3202932029-1805 BRACKET, ENGINE, FRONTBRACKET, ENGINE, FRONT
-
32029A32029-1956 BRACKET, ENGINEBRACKET, ENGINE
-
9200192001-1583 BOLT, FLANGED, 8X70BOLT, FLANGED, 8X70
-
92001A92001-4021 BOLT, 10X75BOLT, 10X75
-
9200292002-1348 BOLT, 10X145BOLT, 10X145
-
9201592015-1415 NUT, FLANGED, 10MMNUT, FLANGED, 10MM
-
92015A92015-1668 NUT, FLANGED, LOCK, 8MMNUT, FLANGED, LOCK, 8MM
-
92015B92015-1673 NUT, PLATE, 8MMNUT, PLATE, 8MM
-
9215092150-1415 BOLT, FLANGED, 8X42BOLT, FLANGED, 8X42
-
92150A92150-1925 BOLT, FLANGED, 8X42BOLT, FLANGED, 8X42
