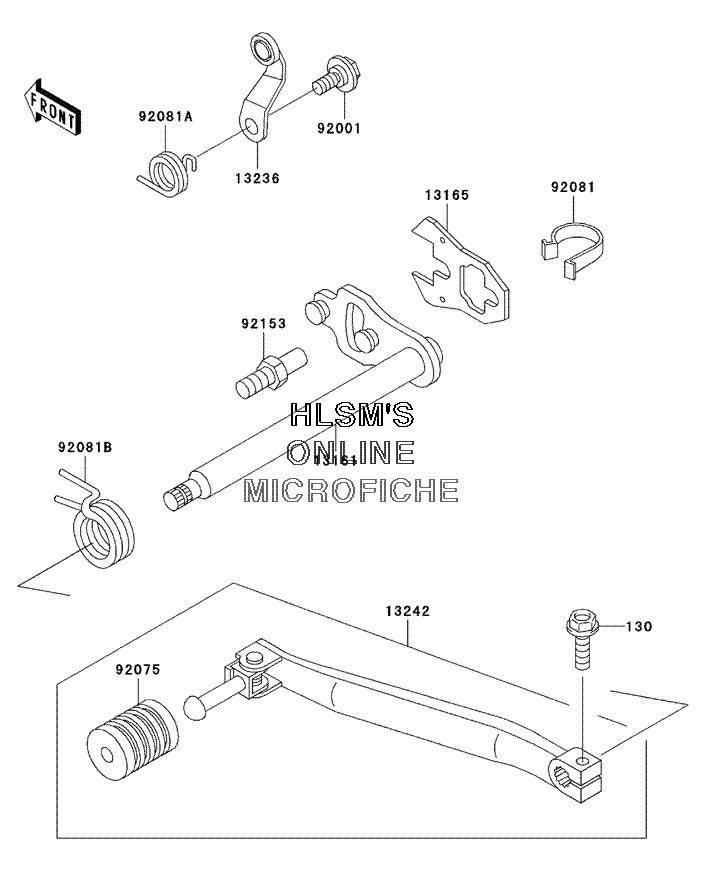

GEAR CHANGE MECHANISM для Kawasaki KLR650 - 2005 года выпуска`
-
№АртикулНазвание
-
130130S0620 BOLT, FLANGED, 6X20 (BLACK)BOLT, FLANGED, 6X20 (BLACK)
-
1316113161-1104 LEVER, COMP, CHANGE SHAFTLEVER, COMP, CHANGE SHAFT
-
1316513165-1120 PAWLPAWL
-
1323613236-1101 LEVER, COMPLEVER, COMP
-
1324213242-1233 LEVER, ASSY, CHANGE, PEDALLEVER, ASSY, CHANGE, PEDAL
-
9200192001-1715 BOLT, GEAR CHANGE LEVERBOLT, GEAR CHANGE LEVER
-
9207592075-1944 DAMPER, CHANGE PEDALDAMPER, CHANGE PEDAL
-
9208192081-1493 SPRING, CHANGE LEVERSPRING, CHANGE LEVER
-
92081A92081-1496 SPRINGSPRING
-
92081B92081-1750 SPRING, CHANGE PEDAL RETURNSPRING, CHANGE PEDAL RETURN
-
9215392153-0720 BOLT, 8X15.5BOLT, 8X15.5
